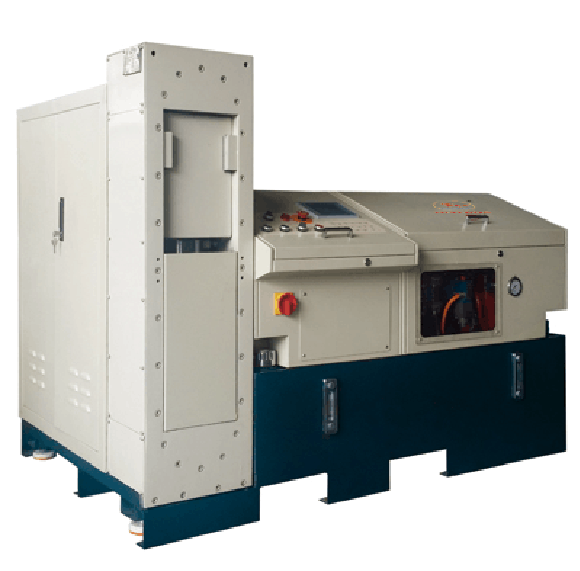

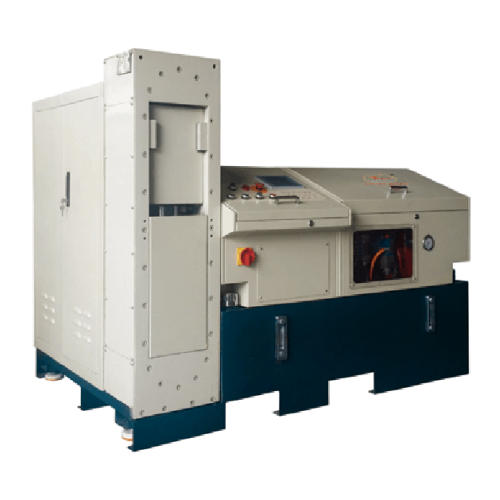

Laboratory CIP 600MPa Powder Cold Isostatic Press Machine

Features

• Convenient automatic material lifting and loading without any auxiliary devices

• Intuitive full-color graphical user interface

• The working pressure can reach up to 300, 350 or 400MPa, making it suitable for a very wide range of material pressing requirements

• High-precision pressure curve setting and control, the entire pressure cycle data can be recorded and traced, and can be used to compare the differences in material forming effects under different isostatic pressing processes

• The working medium can be heated to 85 degrees Celsius as per the customer's requirements

• It is approximately 1.5 meters in height and covers an area of 2 to 3 square meters, making it suitable for placement in most laboratories

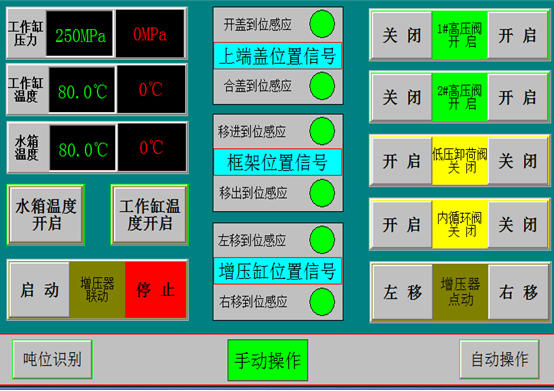

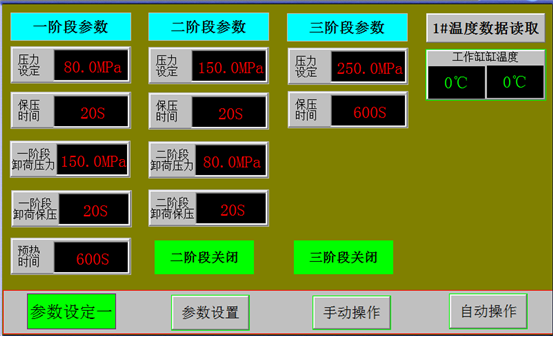

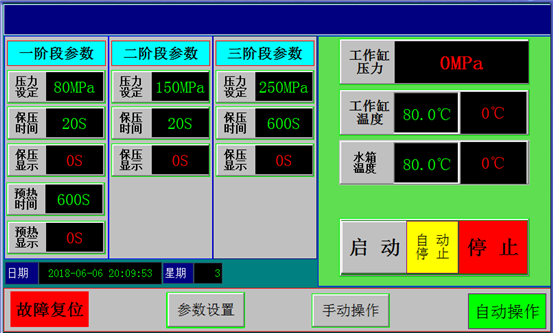

Human-machine interface

1. It adopts Mitsubishi PLC and Weilun screen (special requirements can specify the brand), with fully automatic one-click operation. After touching the keys on the screen with a finger, the system responds quickly.

2. The human-machine interface is friendly and user-friendly, making it easy to master how to set working parameters.

3. It has powerful data recording and display functions.

4. The stainless steel panel is attached to the surface of the control cabinet, featuring a graphical design that is easy to understand.

Safety guarantee

To ensure the safe production of the press, multiple safety protection devices are installed on the press.

1. Manual pressure relief valve. In case of emergency or malfunction, this valve can be manually opened for pressure relief protection of the press. Only after it is closed can the pressure be raised again.

2. Pressure sensor and electrical control system. When the working pressure exceeds the preset pressure value, the electrical control system automatically stops the operation of the pressure-increasing system and controls the pressure-relief system for pressure relief protection.

3. The control cabinet is equipped with a stop button for operation. Once started, the press can be stopped in the middle of any working stage.

4. Interlocking of electrical control programs. The press operates strictly in accordance with the working procedures. If the previous procedure is not completed or a fault occurs, the next procedure cannot be carried out and a fault information will be sent. Only after the fault is eliminated can the next procedure be continued.
