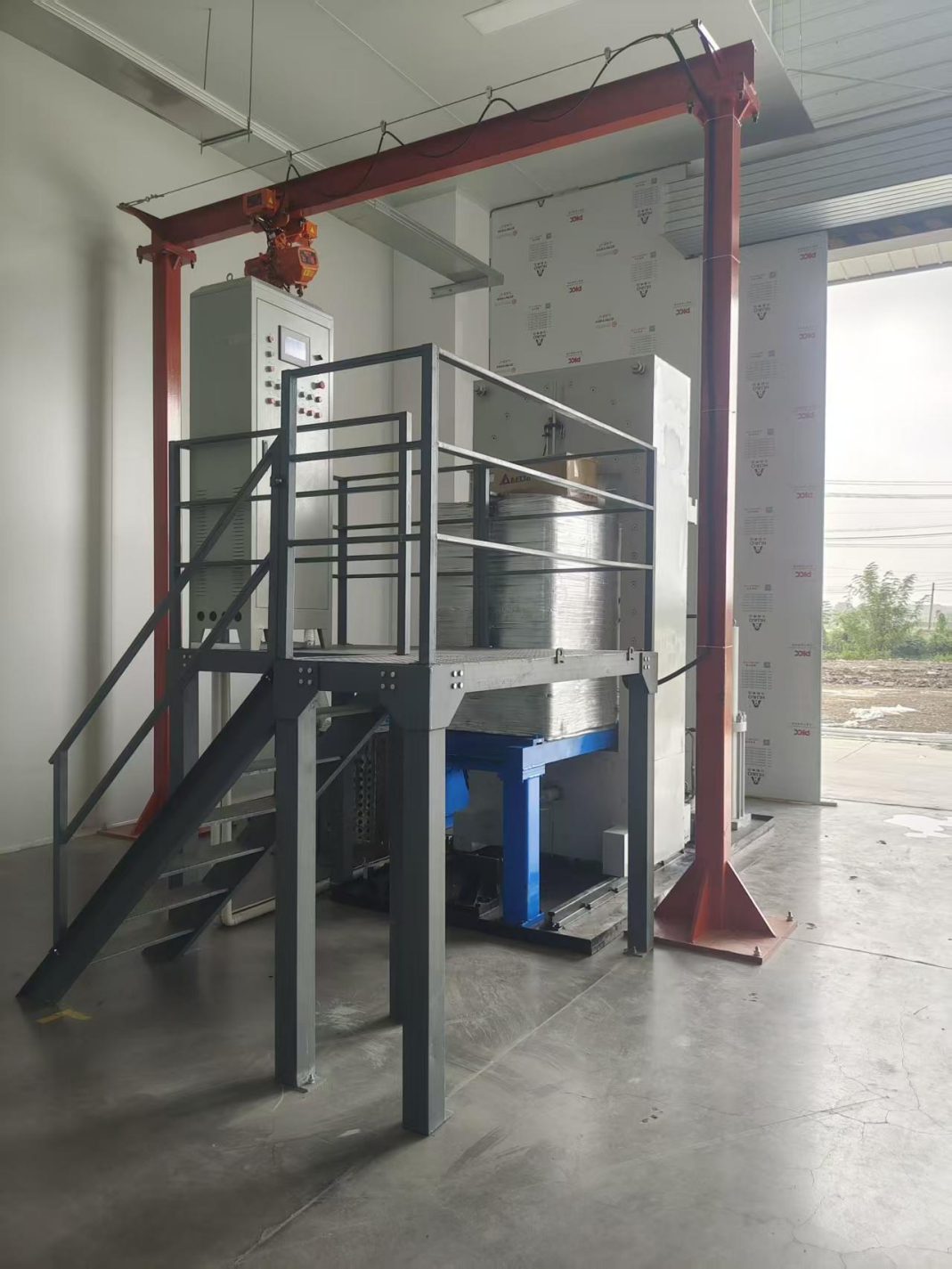

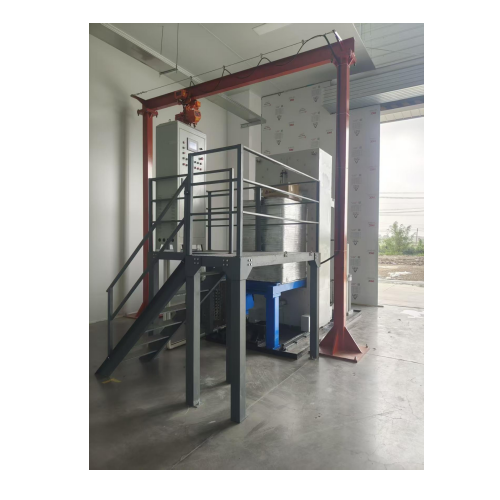

Laboratory 200Mpa Warm Isostatic Pressing Machine For Ceramic Powder Compacting
Main specification
Effective inner diameter of working chamber | 500 mm |
Effective depth of working chamber | 1000 mm |
Maximum pressure of working chamber | 200 MPa (accuracy ±0.5 MPa) |
Ambient temperature | 0–35 ℃ |
Installation type | Indoor pit installation or floor installation |
Working chamber medium | Deionized water |
Operating temperature of high-pressure chamber | RT – 85 ℃ |
Hydraulic medium | ISO VG 46 anti wear hydraulic oil |
Pressurization time (0–200 MPa) | Approx. 3.5 min |
Cooling water connection | G1″ BSPT |
Maximum operating temperature of hydraulic oil | < 50 ℃ |
Heating rate (RT – 80 ℃) | ≤ 75 min |
Temperature measurement accuracy of hydraulic station | ±1 ℃ |
Temperature uniformity of high-pressure chamber fluid | ±2 ℃ |
Fluid storage tank | Automatic heating and water replenishment |
Control interface | PLC + touch screen + function keys + emergency keys |
Pressurization rate | Adjustable |
Depressurization rate | Slow release + fast release |
Pressurization staged pause | Settable hold time at specified pressure points; at least 3 stages |
Pressure holding time | Freely settable (0–9999 s) |
Pressure drop during holding | ≤ 5 MPa (no load 200 MPa, hold for 5 min) |
Automatic pressure compensation | Compensation pressure freely settable |
Depressurization staged pause | Settable hold time at specified pressure points; at least 3 stages |
Set pressure value and holding time | Displayable |
Real-time pressure value and remaining holding time | Displayable |
Actual cycle pressure curve | Displayable, storable, traceable |
Actual cycle pressure data | Exportable to PC via USB |
Production process parameters | Multiple groups storable |
Motor power | 30 kW (servo) + 1.5 kW (water replenishment) + 3 kW (circulation) |
Heating power | 70 kW |
Net weight | Approx. 25 t |
Overall dimensions | Approx. 4000 (W) × 4500 (L) × 3300 (H) mm |
Equipment color | Sea gray (can be customized) |
Others | Isolation baffle between control console and high-pressure chamber; fully enclosed around high-pressure chamber to prevent splashing of high-temperature fluid during lid opening |
Supplied with 2 stainless steel baskets; basket drawing subject to engineer confirmation | |
Consumables warranty: 1-year warranty and free replacement upon damage |
