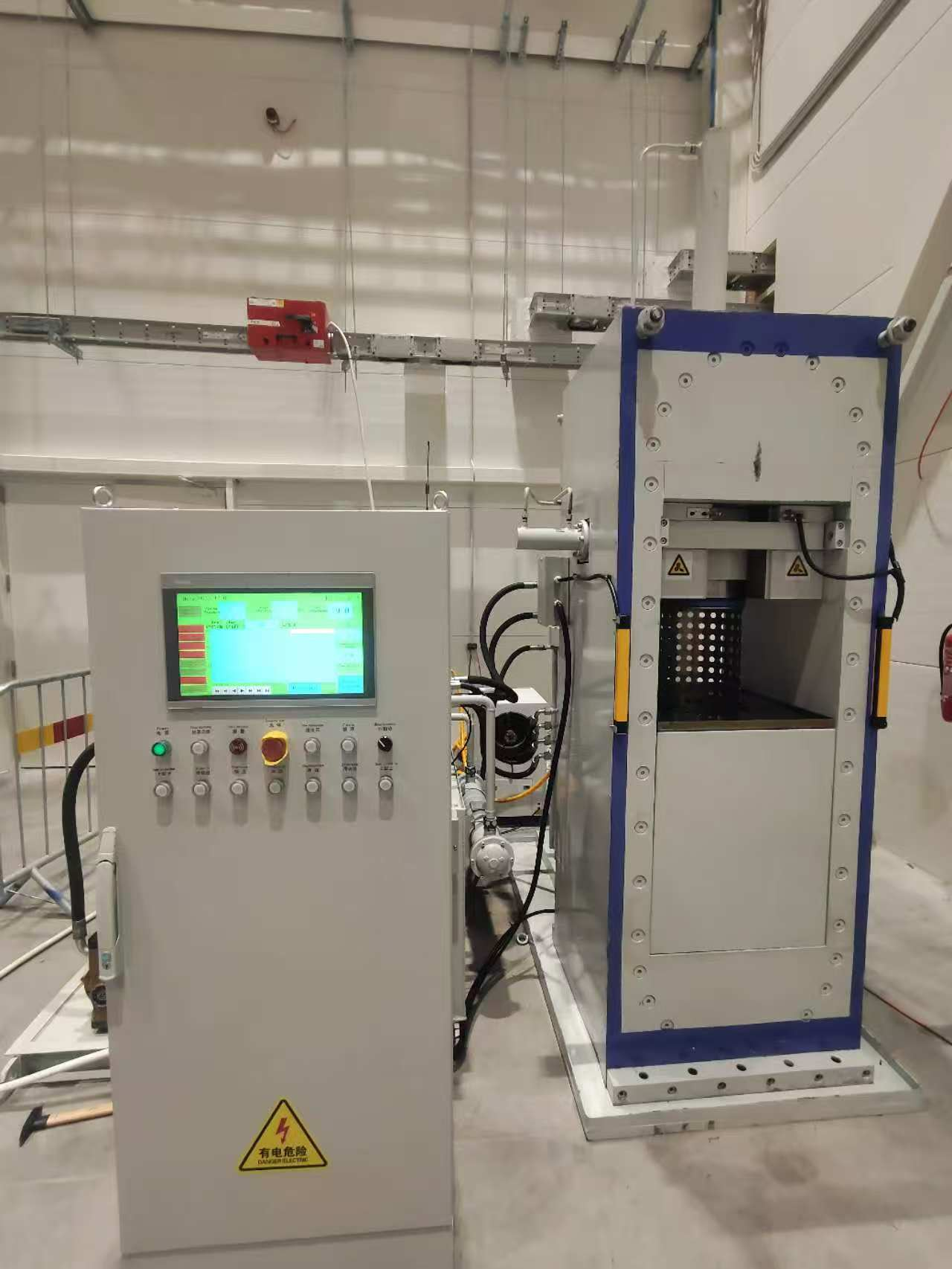

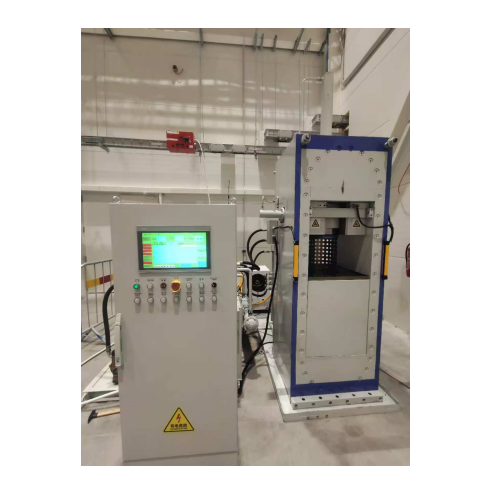

Laboratory 300MPa Dia150mm Cold Isostatic Pressing Machine For Ceramic Powder Forming
1. Main parameters
SN | Description |
1.1 | Effective inner diameter of working cavity: 150mm |
1.2 | Effective depth of working cavity: 200mm |
1.3 | Maximum pressure of working chamber: 300MPa |
1.4 | Hydraulic system pressure: 31.5MPa |
1.5 | Hydraulic medium: N46 anti-wear hydraulic oil |
1.6 | Working chamber medium: Hydraulic oil or water + anti-rust fluid |
1.7 | Holding time: 0-9999s continuously adjustable |
1.8 | Unloading time: Continuously adjustable |
1.9 | Main pump flow: 16MCY |
1.10 | Boosting and depressurizing: 3 stages of boosting and 3 stages of depressurization can be set; (can be set according to the household request increase) |
1.11 | Air-tightness: When pressurized to 300MPa, keep the pressure for 5min The pressure drop is 3%; |
1.12 | Working cycle rhythm: about 3Min (pressure holding time adjustable) |
1.13 | Control method: PLC + touch screen |
1.14 | Power of the whole machine: 11KW (servo) +1.5KW |
1.15 | Cooling water pressure: 0.2 MPa |
1.16 | Main control fuel tank capacity: about 2 barrels |
1.17 | Floor area: about 2500*2500*1800 (height) |
1.18 | Weight of the whole machine: about 4 tons |
1.19 | Equipment color: Sea Gray (customer can choose) |
1.20 | Equipment overall combination type: Integral skid mounted. |
