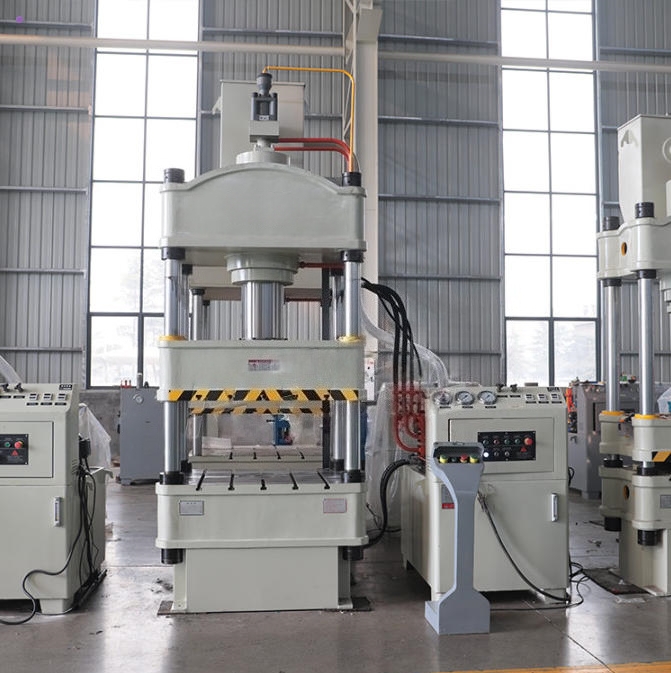

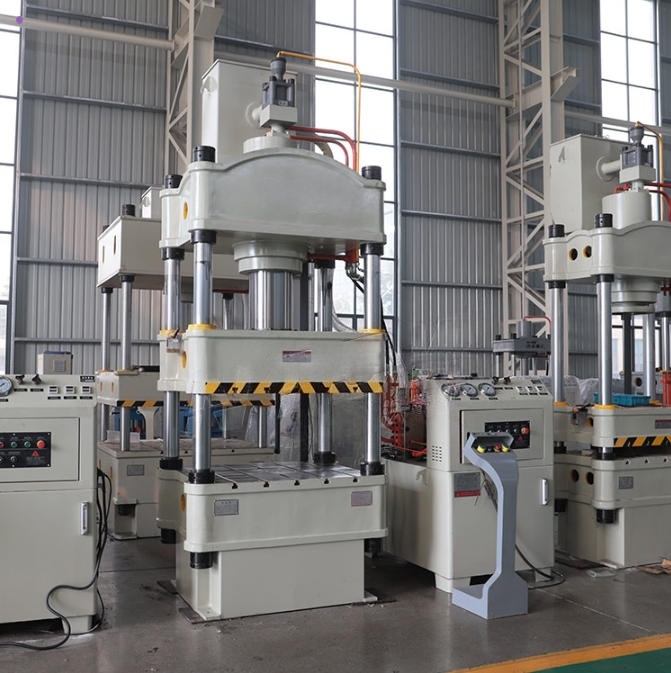

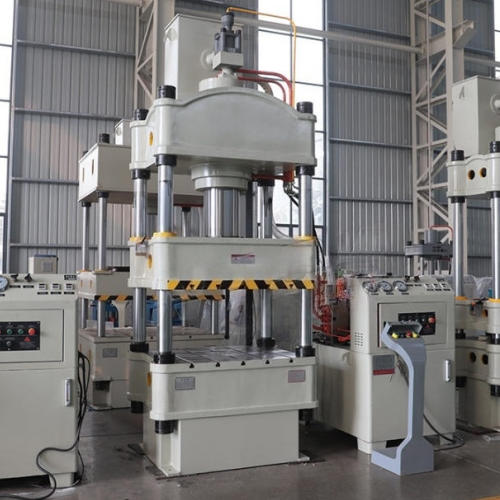

High Speed 200T Four-Column Hydraulic Press Machine

Introduction

The 200-ton four-column hydraulic press is a multi-functional hydraulic press that can be widely applied in processes such as stamping, stretching, shearing, punching and molding of workpieces. The 200-ton rapid four-column hydraulic press is based on the oil pipe of the ordinary hydraulic press and adds another oil pipe. It can achieve rapid downward pressure under high pressure, with a downward pressure speed of up to 380mm/s. It is also known as a speed-increasing hydraulic press, which is even faster than the rapid hydraulic press. It further improves production efficiency and enhances processes (such as hot forging, rapid forming, etc.). It is a customized equipment for customers.

Advantages

1. The hydraulic control of the 200-ton four-column hydraulic press adopts an integrated cartridge valve system, which is reliable in operation, has a long service life, small hydraulic shock, and reduces the connection pipelines and leakage points

2. The independent electrical control system is reliable in operation, objective in action and convenient for maintenance.

3. It adopts centralized control by buttons and has three operation modes: adjustment, manual and semi-automatic.

4. Through the operation panel selection, two forming processes, namely fixed stroke and fixed pressure, can be realized, and it also has functions such as pressure holding and delay.

5. The working pressure of the slider, as well as the stroke range for rapid downward movement under no-load conditions and slow working advance, can all be adjusted according to the process requirements.

Usage and features

This series of products is suitable for the pressing processes of various plastic materials, such as stamping, bending, flanging, etc. It can also be engaged in correction, press-fitting, grinding wheel forming, and the pressing forming of plastic products, rubber products and powder products

Equipment usage conditions

Temperature in the working area of the equipment :0 to 50℃(±)

2. Power supply: Three-phase four-wire system, 380V, 50HZ, voltage fluctuation range 380V±10%

3. Cooling method: Water-cooled device

4. Medium used in the hydraulic system :46 # anti-wear hydraulic oil

Parameters
