High Tonnage 800T Hydraulic Die Press Machine For Metal/Ceramic Powder Compaction

Introduction

Compared with the three-beam four-column hydraulic press, the 800-ton four-beam four-column hydraulic press has an additional beam, providing more stable support and more uniform load distribution. This enables it to handle heavier and more complex workpieces while withstanding greater force and maintaining a more stable workbench surface. The 800-ton four-beam four-column hydraulic press is a commonly seen powder forming hydraulic press, which can be used for the pressing and forming of powder products such as metal powder, ceramic powder, graphite powder and non-metal powder. It can also be used as a double-action thin plate stretching machine to achieve the deep stretching process of plates

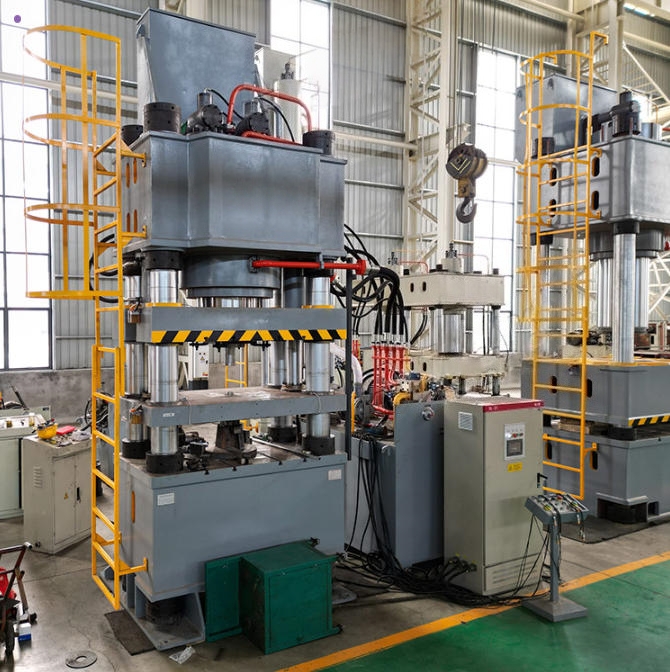

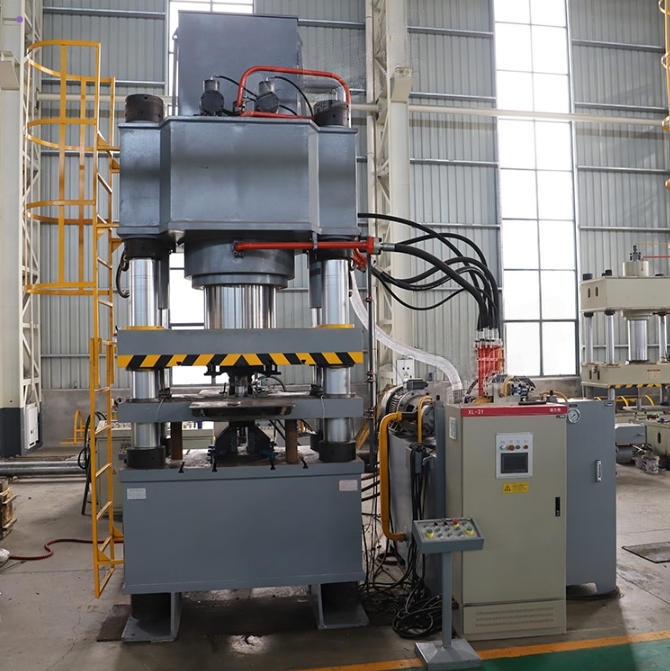

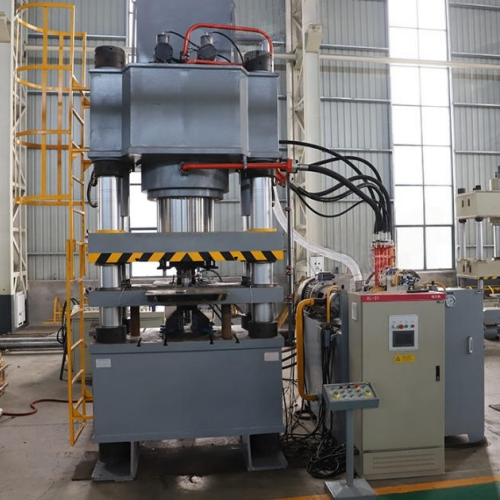

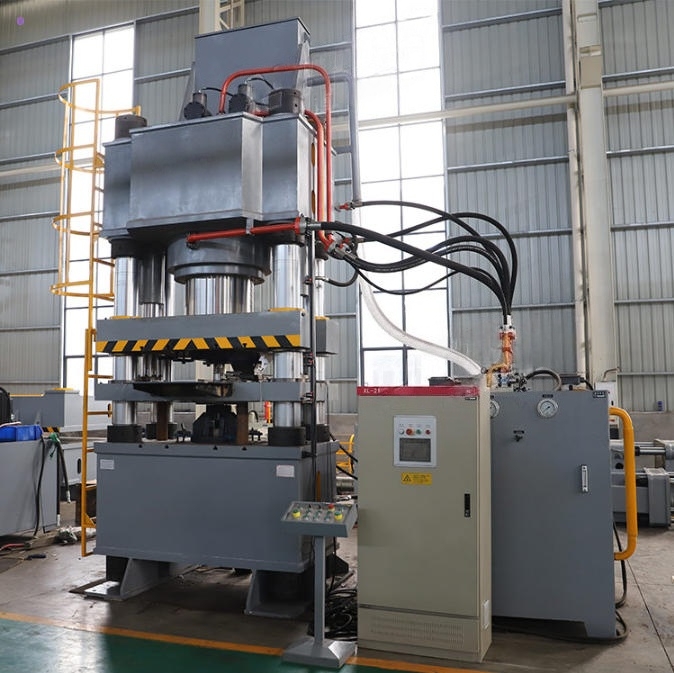

This product is a customized iron-silicon-aluminum magnetic core powder forming hydraulic press according to customer requirements. The machine body adopts a four-beam and four-column structure: it is composed of an upper crossbeam, a slider, a worktable, columns, a main cylinder, a hydraulic power system and an electrical system, etc. The upper crossbeam, slider and worktable are welded with high-quality steel plates and undergo vibration aging treatment to eliminate internal stress. The columns are made of high-quality 45# steel, and all four columns are surface medium-frequency quenched and electroplated with 饹 treatment. The cylinder body is made of high-quality 45# steel, and the surface of the piston rod is surface medium-frequency quenched, ensuring a long service life. The main components of the oil are sealed with high-quality material sealing rings to ensure reliable sealing. Both the worktable and the slide beam are equipped with grooves to facilitate the installation of the user's mold.

Features

1. The 800-ton four-beam four-column hydraulic press adopts a four-column vertical structure, featuring strong equipment stability, smooth operation and low noise

2. Four-beam and four-column guidance ensures precise positioning, eliminating the risk of mold deviation or damage. The pressed products can be formed in one go

3. Equipped with PLC, it features automatic pressing, reducing labor intensity and enhancing production efficiency

4. It is equipped with automatic feeding, shaping and material distribution, which saves labor costs and realizes a fully automatic production process

5. The 800-ton four-beam and four-column hydraulic press adopts a molding production process, with high forming pressure to ensure product quality

6. One machine with multiple uses can also produce various types of refractory bricks (standard bricks, hollow bricks, perforated bricks and others; special-shaped bricks). Just change the mold, which is simple, convenient and fast.

Parameters
