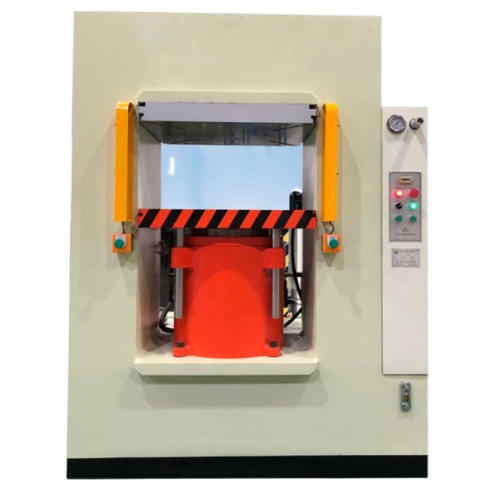

300T Automatic Frame Hydraulic Press
Features
1. Processes such as cutting, riveting, forming of hardware and electronic products, cutting, stamping, punching and embossing of composite materials and release materials;
2. Embossing, forming, shallow drawing, shaping, die covering and trimming of metal or non-metal parts, etc.
3. Typical products that can be pressed include badges, MEDALS, watch cases, watch straps, glasses, frames and parts, photo frames, tableware, nameplates, locks, hardware parts, etc.
Parameter
Item | unit | specification | ||||||
JLH-100T | JLH-150T | JLH-200T | JLH-300T | JLH-500T | JLH-1000T | |||
Main cylinder pressure | KN | 100 | 150 | 200 | 300 | 500 | 1000 | |
Maximum working pressure | MPa | 20 | 22 | 22 | 24 | 25 | 25 | |
Maximum stroke of the master cylinder | KN | 110 | 110 | 150 | 150 | 150 | 150 | |
Opening height | mm | 380 | 350 | 400 | 400 | 450 | 600 | |
The upward speed of the workbench | mm/s | 180 | 180 | 135 | 135 | 100 | 90 | |
The return speed of the workbench | mm/s | 150 | 150 | 100 | 100 | 90 | 80 | |
Effective area of the workbench | Left and right L.R | mm/s | 400 | 450 | 450 | 550 | 650 | 900 |
Before and after F.B | mm | 410 | 480 | 550 | 650 | 750 | 950 | |
Machine external dimensions | Left and right L.R | mm | 1140 | 1200 | 1320 | 1460 | 1630 | 2450 |
Before and after F.B | mm | 980 | 1140 | 1340 | 1340 | 1510 | 1700 | |
Height H | mm | 1400 | 1540 | 1630 | 1725 | 1990 | 2670 | |
Motor power | KW | 4 | 5.5 | 5.5 | 7.5 | 15 | 18.5 | |

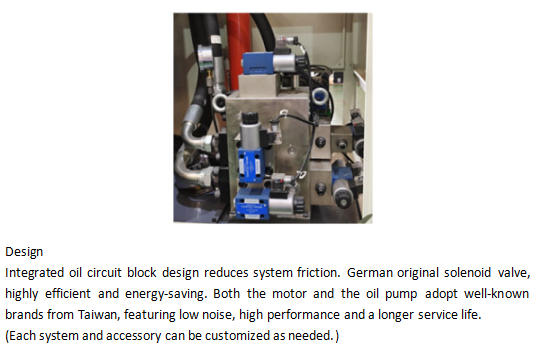

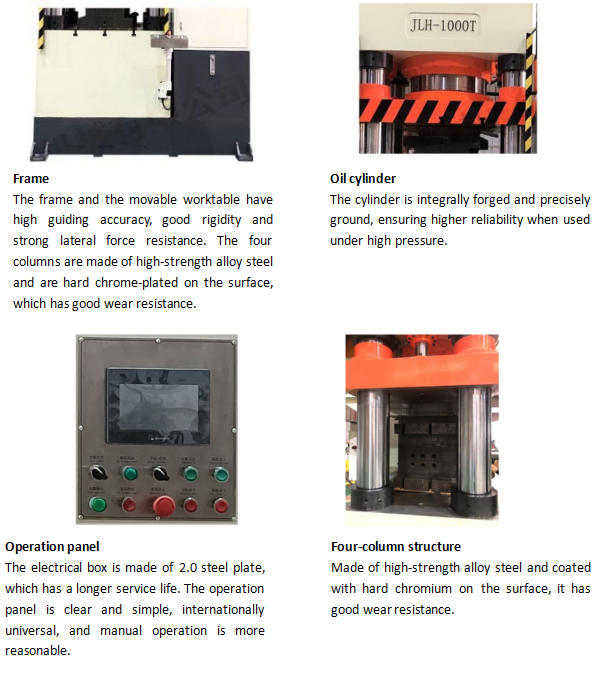

Details
