High Precision 1200℃ Dental Vacuum Porcelain Furnace
Technical Specifications

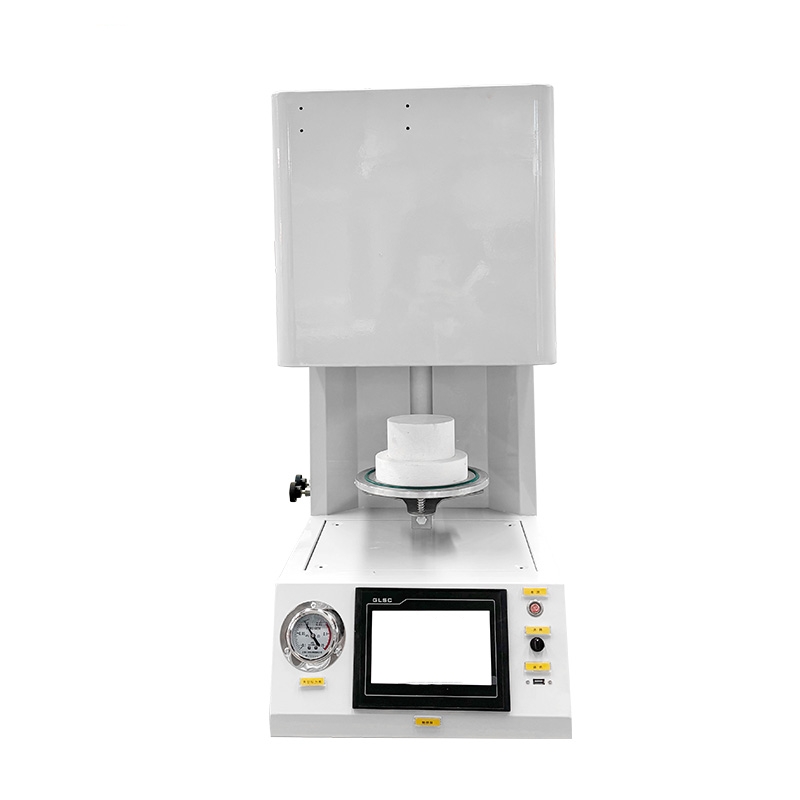

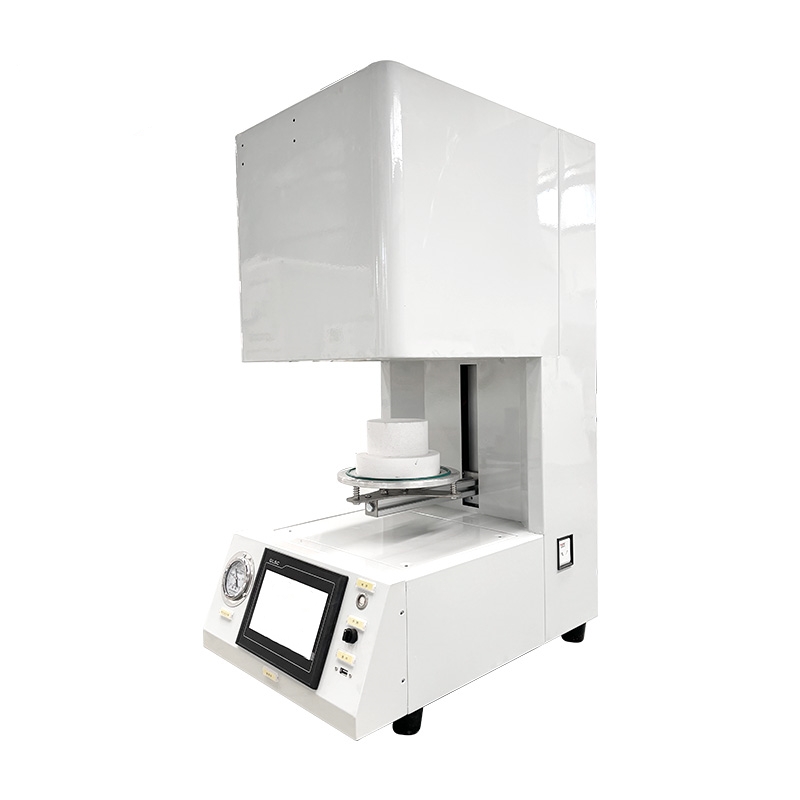

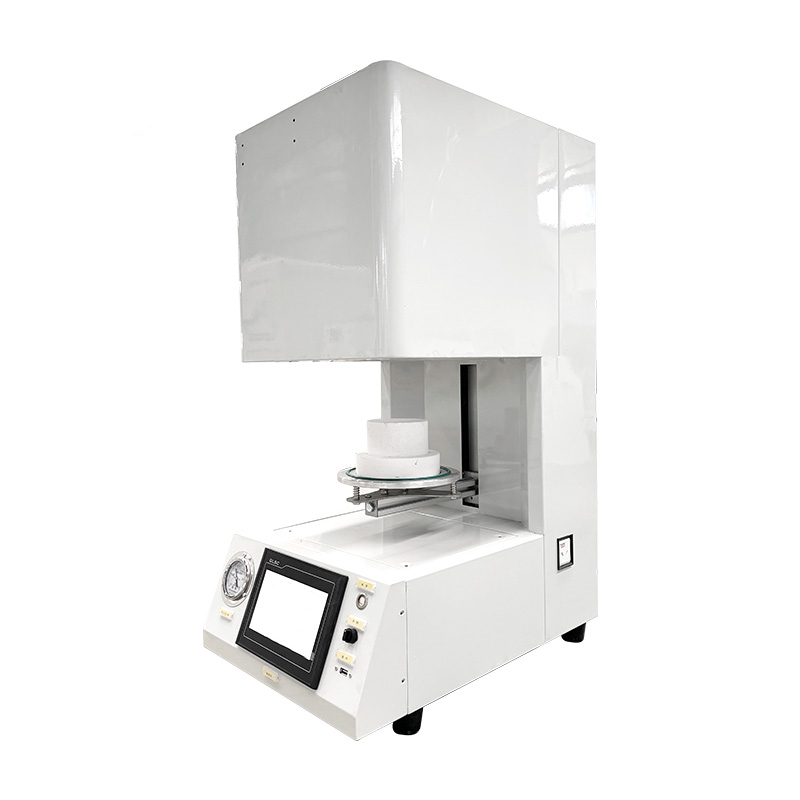

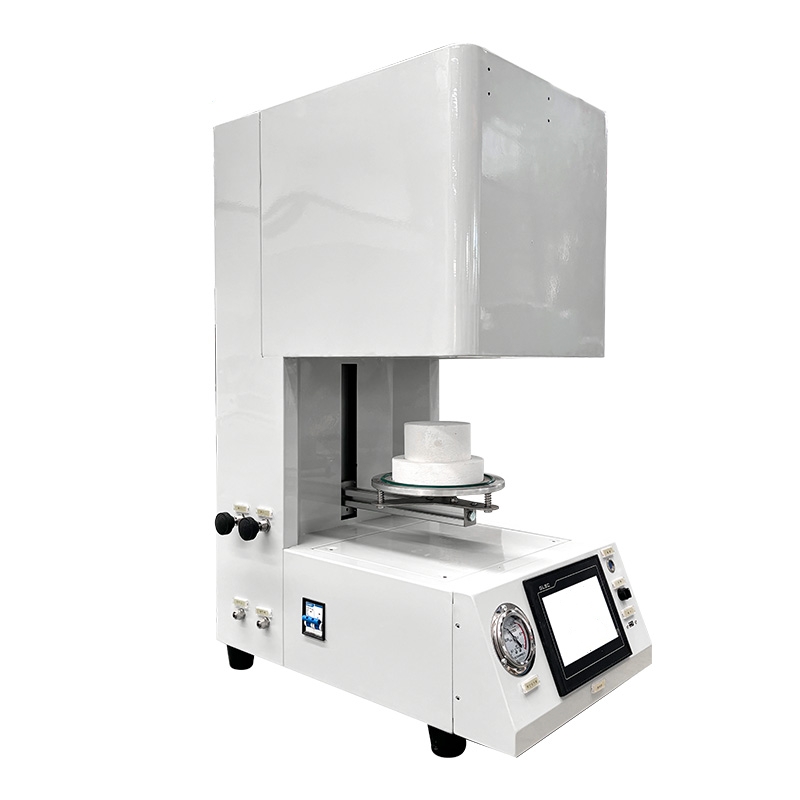

GWDL High-Temperature Precision Elevator Furnace – as shown in the figure, the control system and furnace chamber are integrated. The furnace lining uses imported German MESCHUPP vacuum-formed high-purity alumina fiber lightweight board.
Heating elements are silicon carbide rods or molybdenum disilicide (MoSi₂) rods. This furnace is specially developed for sintering, melting, analysis, and production of ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractory materials, new material development, special materials, building materials, metals, non-metals and other compound materials, primarily for laboratories of universities, research institutes, and industrial/mining enterprises.
The control panel is equipped with a touch screen, control power switch, main heating start/stop button, USB interface, elevator switch, and buzzer for easy monitoring of the system's operating status. This product uses reliable integrated circuits, provides a good working environment, and is anti-interference. At maximum temperature, the outer shell temperature is ≤45℃, greatly improving the working environment. Microcomputer program control, programmable temperature profile, fully automatic heating/cooling, and control parameters and programs can be modified during operation – flexible, convenient, and simple to operate.
Parameter | Specification | |
Temperature | 1200℃ | |
Furnace Chamber Dimensions | D126 × 120 mm | |
Supply Voltage AC | 220V / 380V | |
Maximum Operating Temperature | 1200℃ | |
Continuous Operating Temperature | ≤1100℃ | |
Temperature Control Accuracy | ±1℃ | |
Furnace Temperature Uniformity | ±1℃ (depending on heating chamber size) | |
Temperature Sensor & Range | Nickel-Chromium vs Nickel-Silicon (K-type), range 0–1350℃ | |
Touch Screen | 7 inches | |
Programming Segments | Touch operation, standard 50 segments, fully automatic heating, soaking, cooling. One set: 50 segments; two sets: 22 segments each; three sets: 8 segments each. | |
Communication | USB. Computer control of furnace start, pause, stop, heating, cooling, temperature profile setting, historical reports, etc. | |
Heating / Ramp Rate | Adjustable from 1℃/h to 40℃/min | |
Heating Elements | High-temperature alloy resistance wire | |
Heating Element Installation Position & Method | Ring-shaped distribution around the furnace chamber | |
Refractory Material | High-purity alumina ceramic fiber board | |
Loading Table Capacity | From 0.1 kg upwards – customizable | |
Full Touch Screen Control | Lifting Mechanism | Screw lift |
Loading Table In/Out | Electric | |
Lifting & In/Out | Electric | |
Pressure Gauge | 1 piece | |
Vacuum Pump | Mechanical rotary vane pump | |
Vacuum Value (Vacuum Gauge) | -0.1 MPa | |
Furnace Body Temperature | ≤45℃ | |
Compatible Atmospheres | Nitrogen, argon, oxygen, etc. | |
Gas Pressure Protection | To prevent danger caused by closed exhaust port, blocked exhaust port, or excessive furnace pressure – principle: signal from electric contact pressure gauge or pressure sensor drives the control module to close the solenoid inlet valve, activate the solenoid exhaust valve and alarm, thus protecting normal furnace operation. | |
Computer Interface | RS485, RS232, USB | |
Warranty & Coverage | One-year free warranty for the furnace. Heating elements are not covered. | |
