High-Temperature 1800C Precision Ceramic Dental Sintering Furnace

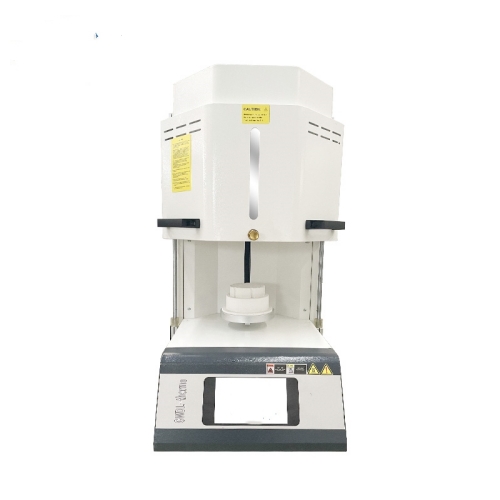

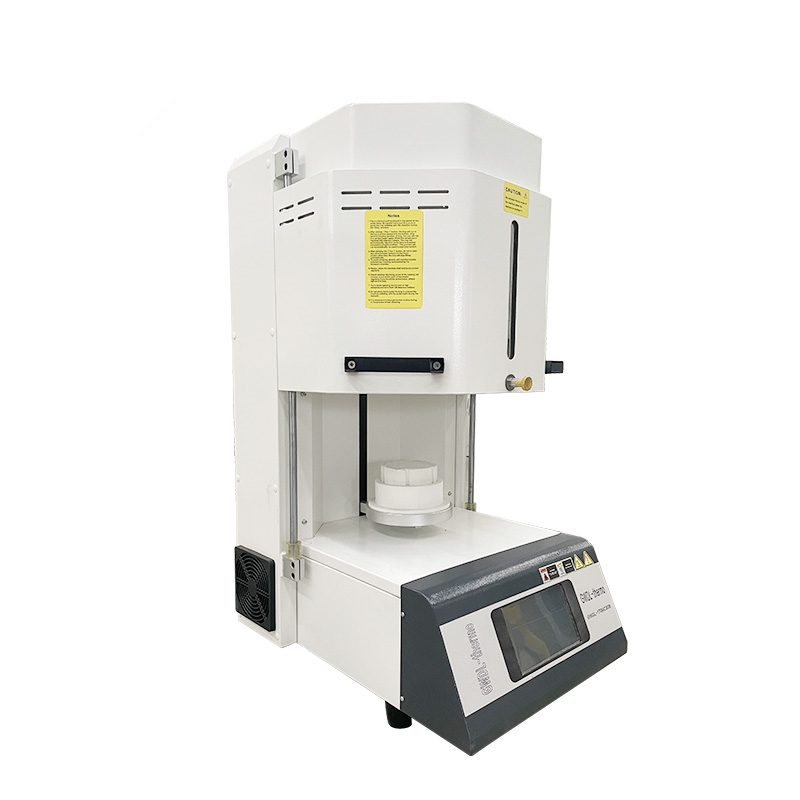

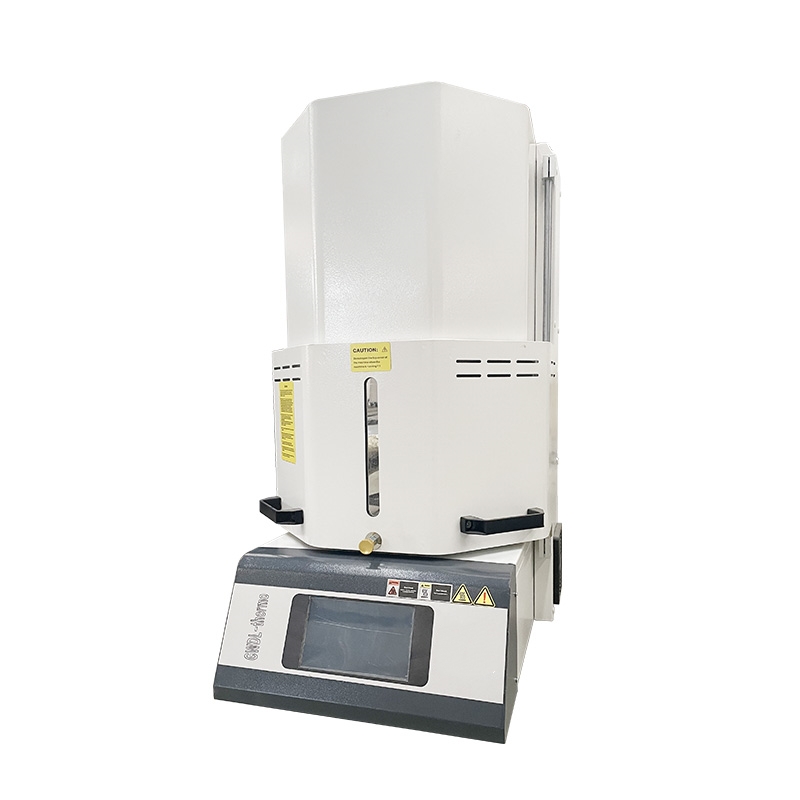

As shown in the figure, the GWL-TSC series high-temperature precision ceramic dental sintering furnace features an integrated design of control system and furnace chamber. The furnace lining is made of imported vacuum-formed high-purity alumina fiber lightweight board.

It uses silicon carbide rods or silicon molybdenum rods as heating elements. It is a special equipment designed for laboratories of universities, research institutes, and industrial and mining enterprises to conduct sintering, melting, analysis and production of ceramics, metallurgy, electronics, glass, chemicals, machinery, refractory materials, new material development, special materials, building materials, metals, non-metals and other compound materials.

The control panel is equipped with touch screen control, power switch, main heating start/stop button, USB interface, lift switch and buzzer for real-time monitoring of system operation. The product adopts reliable integrated circuits with good anti-interference performance. The furnace shell temperature is ≤45°C at maximum temperature, greatly improving the working environment. It features microcomputer program control, programmable temperature curves, fully automatic heating/cooling, and flexible modification of temperature control parameters and programs during operation, with easy and simple operation.

Technical Specifications
