Dia3-6mm Hydraulic Press Cylindrical Opening Die Molds For Tablet Making
Introduction

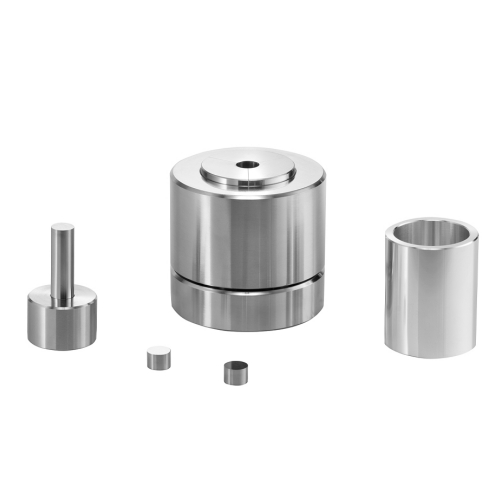

The cylindrical opening mold is suitable for the molding of ultrafine powder or samples that are prone to delamination and cracking. The mold solves the problem of sample non-molding caused by sample expansion and deformation during demolding by quickly removing the mold outer jacket. The size of the mold tablet: diameter 3 to 60mm. Special mold sizes can be customized according to customer requirements.
Technical parameter
Instrument model | PMK-YA |
Press the shape of the sample |  |
Mold material | Japanese high-speed tool steel ASSAB+17 |
Indenter hardness | HRC68-70 |
Sample size | Φ3/4/5/6 (M) |
Cavity depth | 30mm (N) |
Overall dimensions | Φ53*93mm (L*H) |
Mold weight | 1kg |

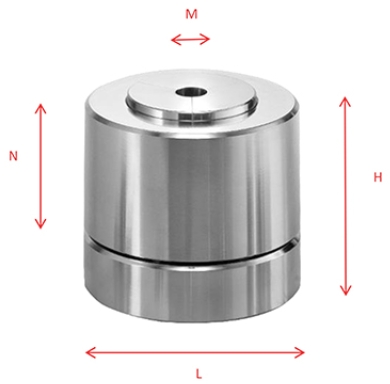

Schematic diagram of dimensions |  |
