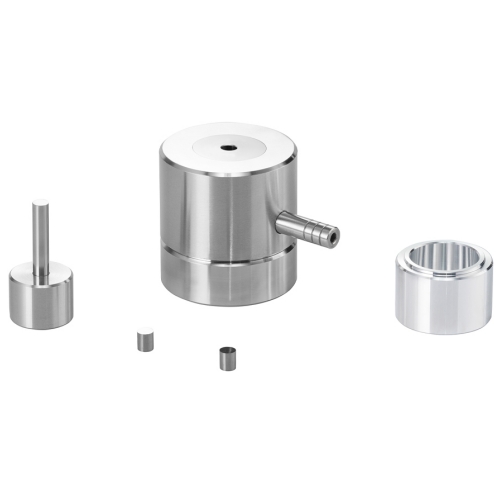

Dia3-10mm Hard Alloy Pallet Pressing Cylindrical Mold Powder Forming Die
Introduction
Hard alloy molds are suitable for forming samples with extremely high powder hardness. Tablet size: diameter 8 to 40mm. Special mold sizes can be customized according to customer requirements.
Technical parameter
Instrument model | PMW-A |
Press the shape of the sample |  |
Mold material | Hard alloy YT15 |
Indenter hardness | HRC85-HRC90 |
Sample size | Φ5-10 (M) |
Cavity depth | 30mm (N) |
Overall dimensions | Φ43*93mm (L*H) |
Mold weight | 0.78kg |

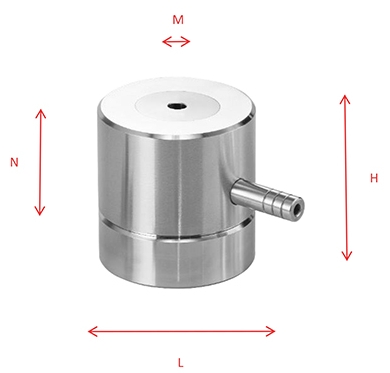

Schematic diagram of dimensions |  |
