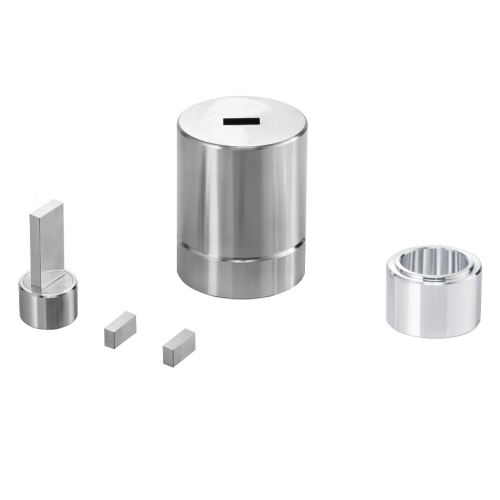

3-10mm Width Hydraulic Powder Pallet Press Rectangular Mold Die
Introduction
Rectangular molds are suitable for some slender and easily formed samples. The tablet size ranges from 3 to 100mm. Special mold sizes can be customized according to customer requirements.
Technical parameter
Instrument model | PMF-A |

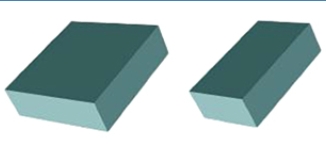

Press the shape of the sample |  |
Mold material | 440C |
Indenter hardness | HRC60-62 |
Sample size | Length 3-10mm (M) |
Cavity depth | 30mm (N) |
Overall dimensions | Φ43*93mm (L*H) |
Mold weight | 0.8kg |
Schematic diagram of dimensions |  |
