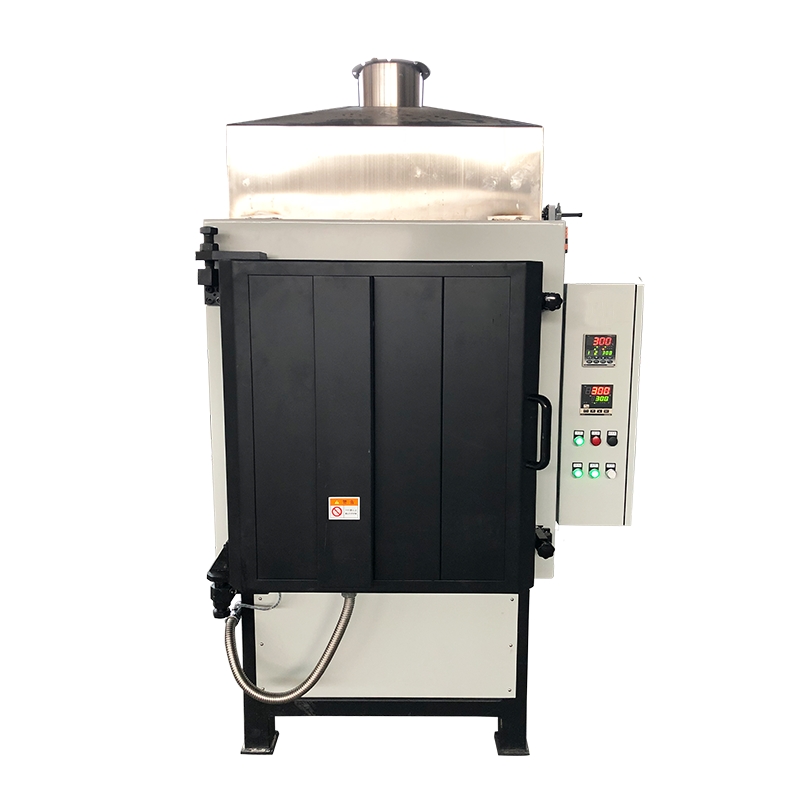

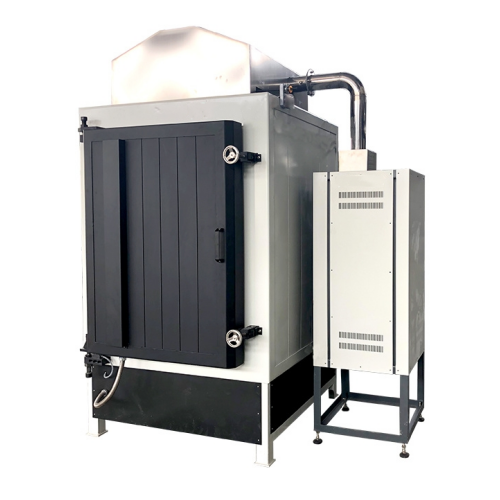

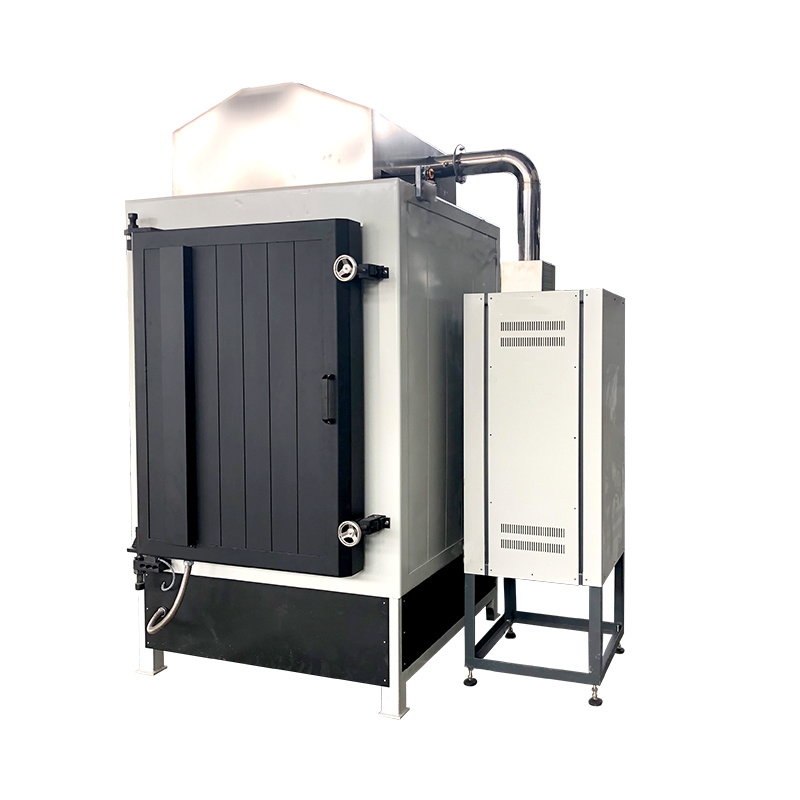

Debinding & Pre-sintering Integrated 1100℃ Furnace For Ceramic Powder Production
Introduction
This furnace is primarily designed for the integrated debinding and pre-sintering processes of fine ceramic components made from aluminum nitride (AlN), silicon nitride (Si₃N₄), alumina (Al₂O₃), zirconia (ZrO₂), and dielectric ceramics. It is also suitable for the binder removal, pre-sintering, and sintering processes of ceramic powders, magnetic materials, LTCC, MLCC, NTC, NFC, ceramic cores, and other electronic components.
The furnace adopts a unique thermal field control method, which achieves excellent temperature uniformity during both low-temperature debinding and high-temperature pre-sintering, ensuring the precise thermal environment required for both process stages.
Specification
Model 1100 Debinding & Pre-Sintering Integrated Furnace
Equipment Model | Max. Temperature | Chamber Size (W×H×D) | Heating Method | Thermocouple | Voltage | Power |
FXL(T)-60/11 | 1100℃ | 280×400×400 mm | Five-sided heating | Type K | 380V | 17 kW |
FXL(T)-125/11 | 1100℃ | 380×500×500 mm | Five-sided heating | Type K | 380V | 25 kW |
FXL(T)-300/11 | 1100℃ | 440×780×700 mm | Five-sided heating | Type K | 380V | 45 kW |
FXL(T)-700/11 | 1100℃ | 700×1100×820 mm | Five-sided heating | Type K | 380V | 63 kW |
