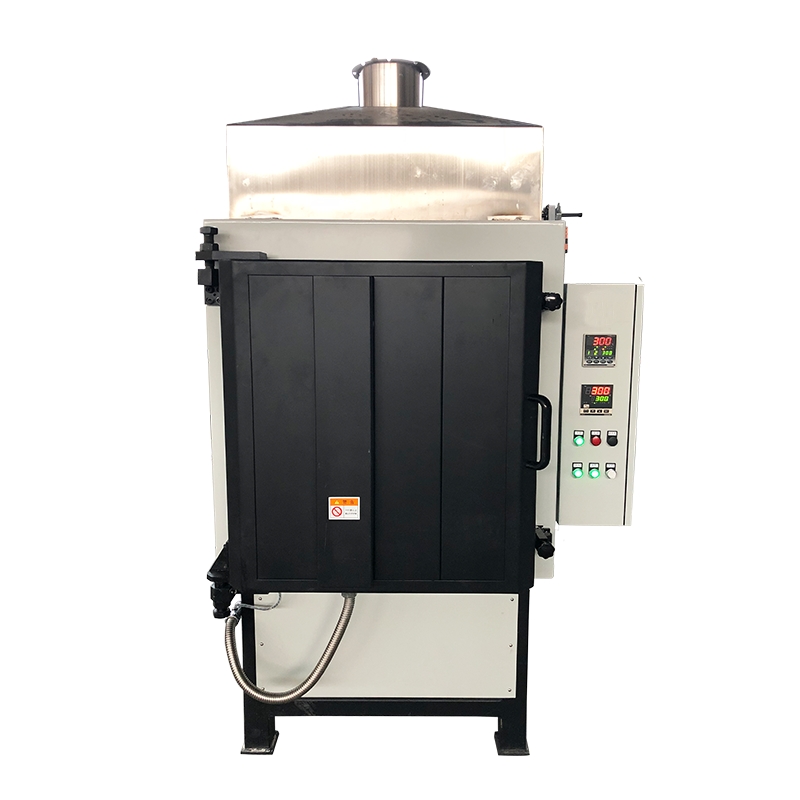

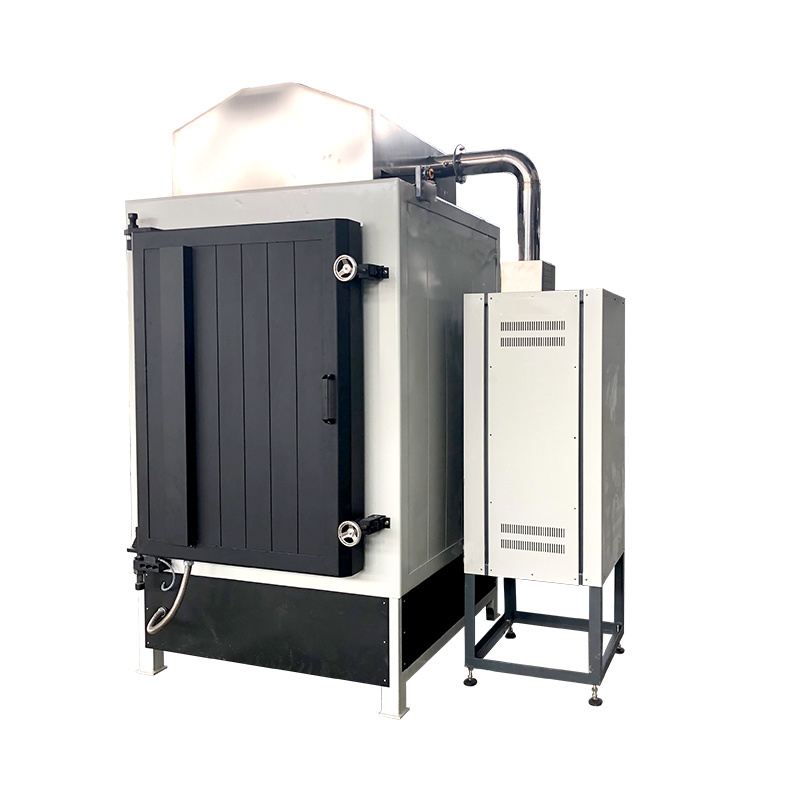

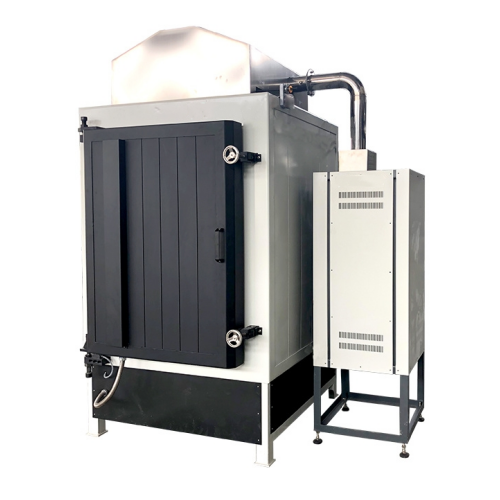

High Temperature CIM Debinding & Sintering Integrated 1300℃ Furnace
Introduction
This furnace is primarily designed for the integrated debinding and pre-sintering processes of fine ceramic components made from aluminum nitride (AlN), silicon nitride (Si₃N₄), alumina (Al₂O₃), zirconia (ZrO₂), and dielectric ceramics. It is also suitable for the binder removal, pre-sintering, and sintering processes of ceramic powders, magnetic materials, LTCC, MLCC, NTC, NFC, ceramic cores, and other electronic components.
The furnace adopts a unique thermal field control method, which achieves excellent temperature uniformity during both low-temperature debinding and high-temperature pre-sintering, ensuring the precise thermal environment required for both process stages.
Specification
Model 1300 Debinding & Sintering Integrated Furnace
Equipment Model | Max. Temperature | Chamber Size (W×H×D) | Heating Method | Thermocouple | Voltage | Power |
FXL(T)-60/13 | 1300℃ | 280×400×400 mm | Five-sided heating | Type S | 380V | 17 kW |
FXL(T)-125/13 | 1300℃ | 380×500×500 mm | Five-sided heating | Type S | 380V | 25 kW |
FXL(T)-300/13 | 1300℃ | 440×780×700 mm | Five-sided heating | Type S | 380V | 50 kW |
FXL(T)-700/13 | 1300℃ | 700×1100×820 mm | Five-sided heating | Type S | 380V | 70 kW |
