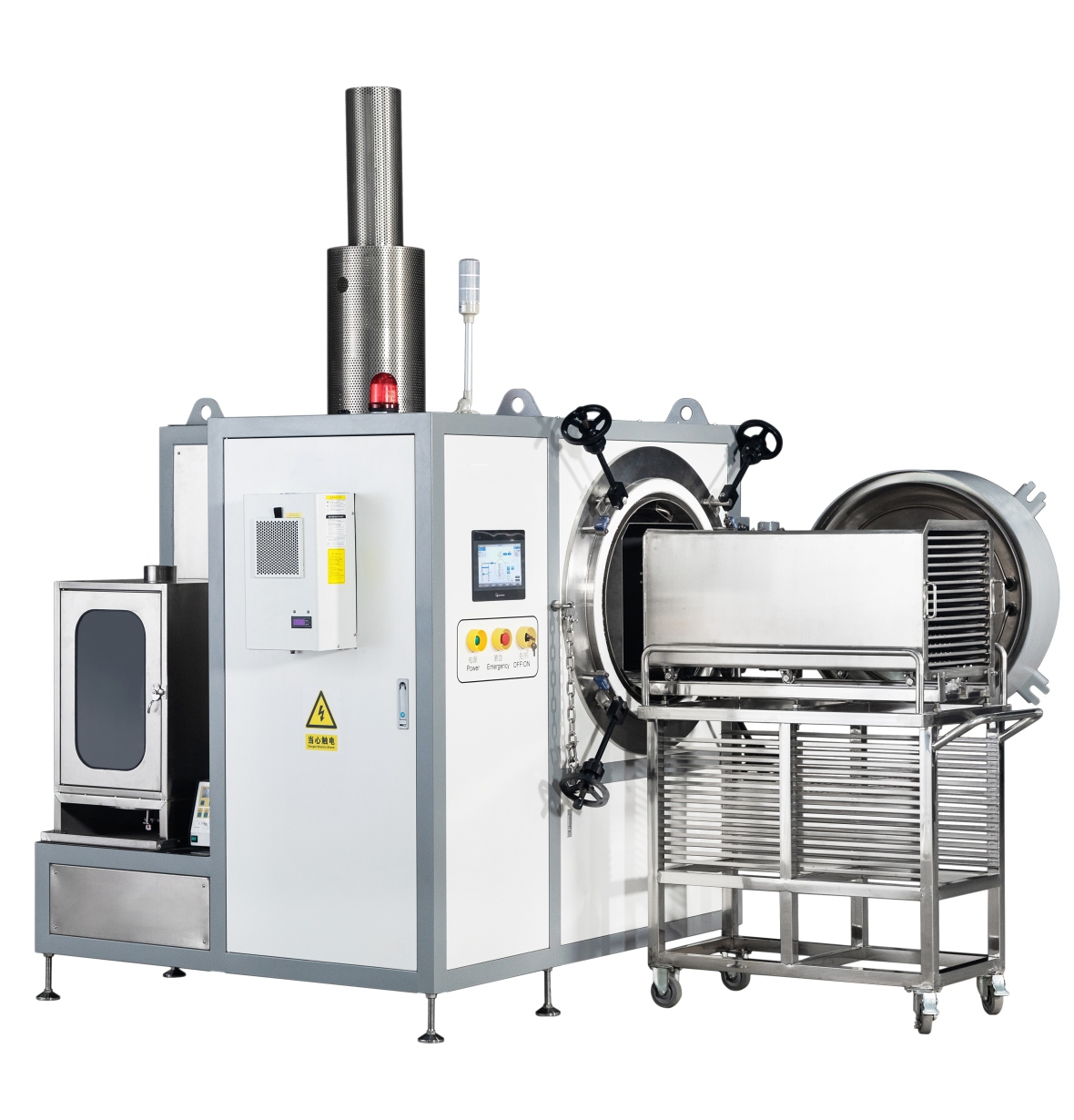

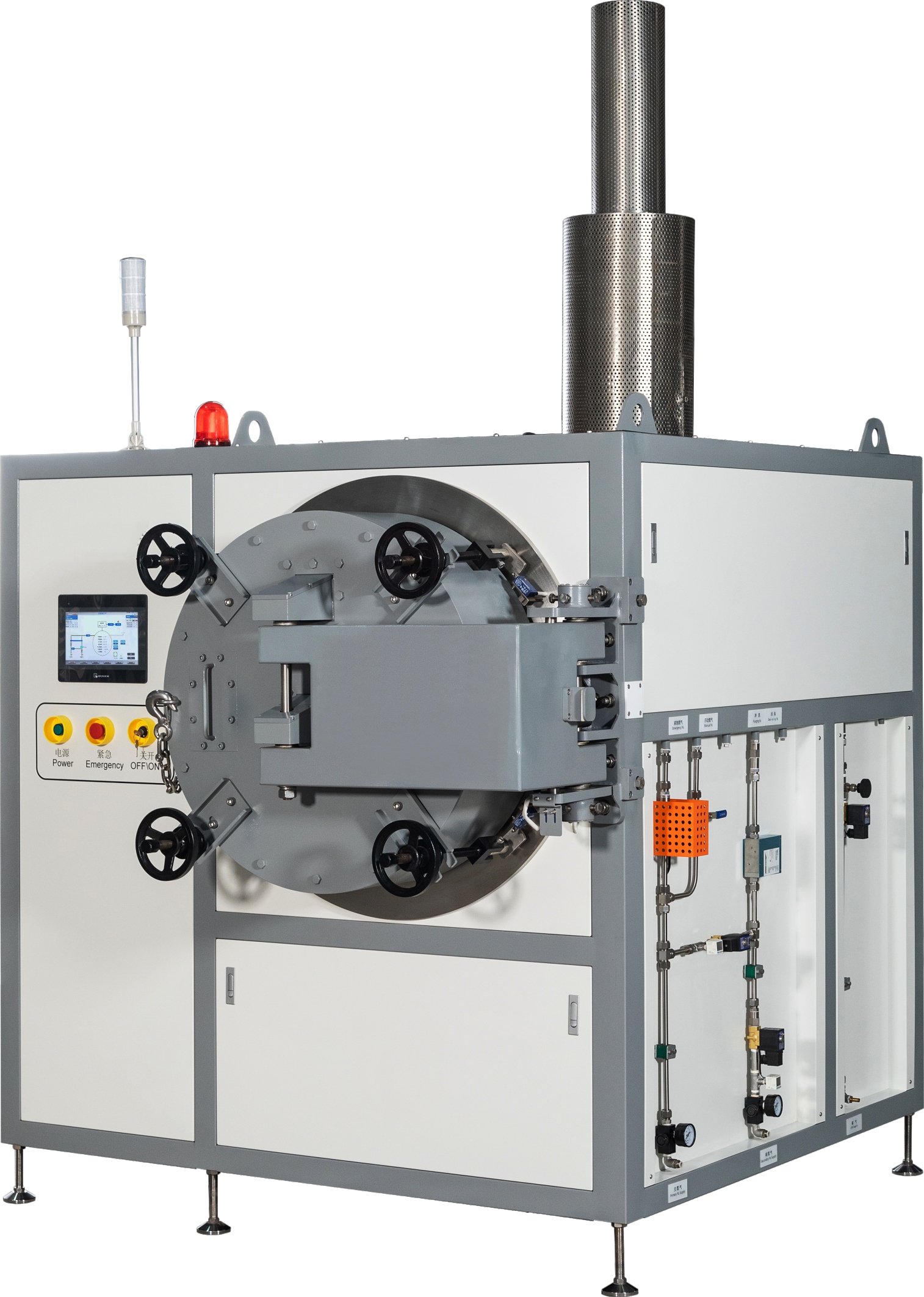

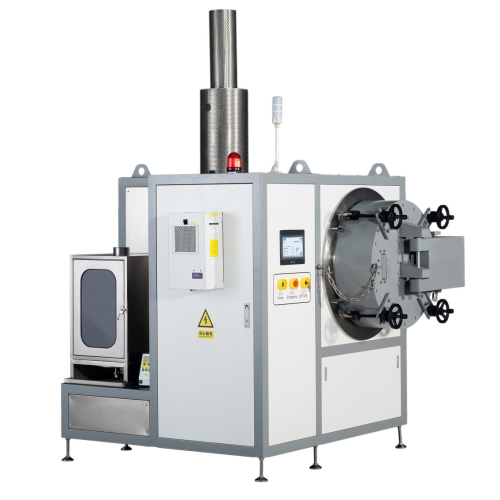

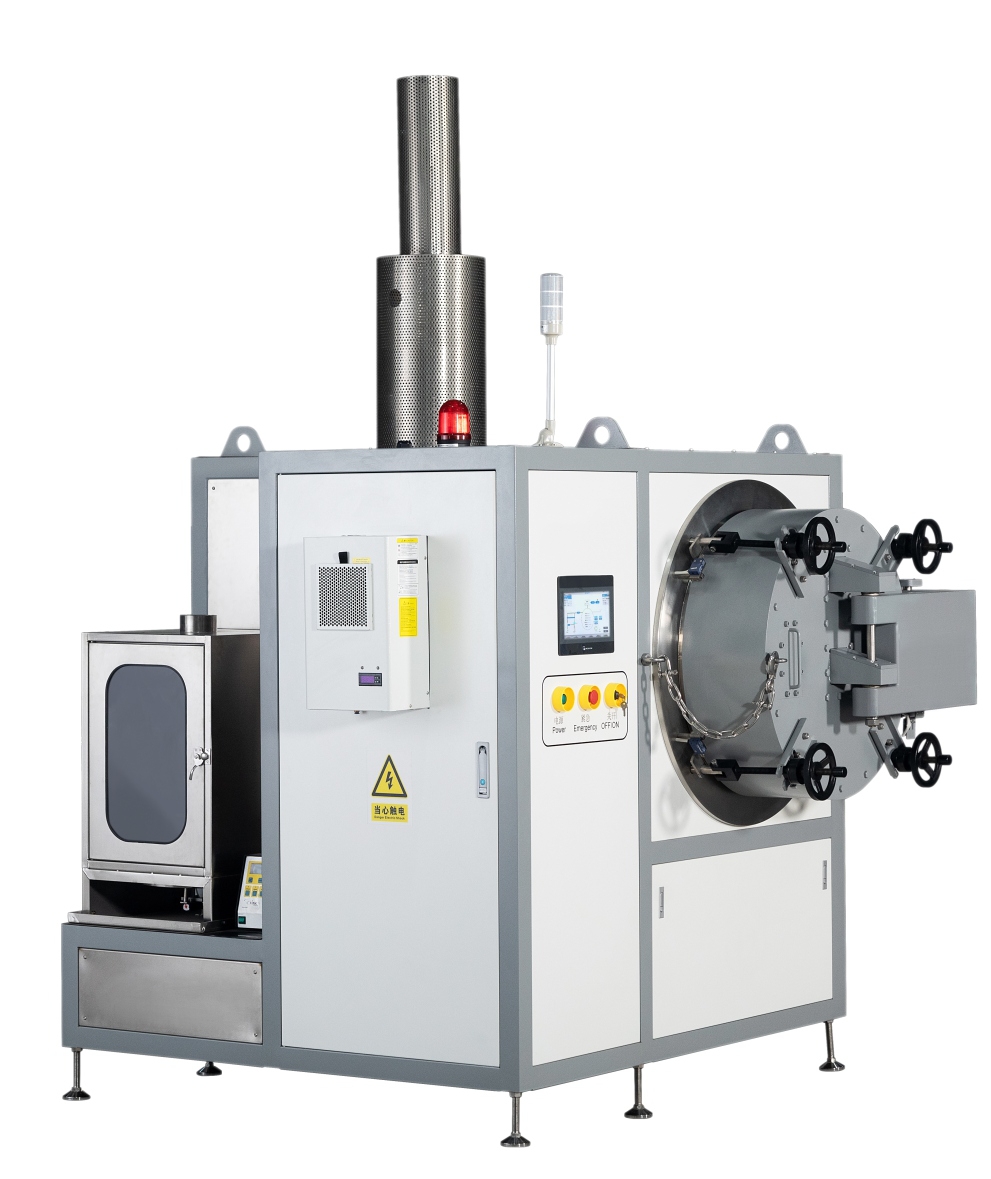

Nitric Acid Catalytic Debinding Furnace For Powder Metallurgy Production
Introduction
Catalytic debinding for conventional active metal materials that are easy to be oxidized, which is more energy-saving, safer operation environmental-friendly, and the exhaust gas can be directly discharged.
Specification
Model No: 300L-G
Working Temperature: 100–140°C
Overall Dimension: L2052 x W1820 x H2930 mm
Available Working Size: L1005 x W414 x H421 mm
Chamber Dimension: φ650 x 1108 mm
Standard Cycle Time (Loading & Unloading): 4–6 h
Acid Feeding Mode: Controllable continuous acid feeding
Nitrogen Consumption: 4 m³/h
Total Weight: 1500 kg
Feeding Mode: Transfer cart type
Installed Power: 14 kW
