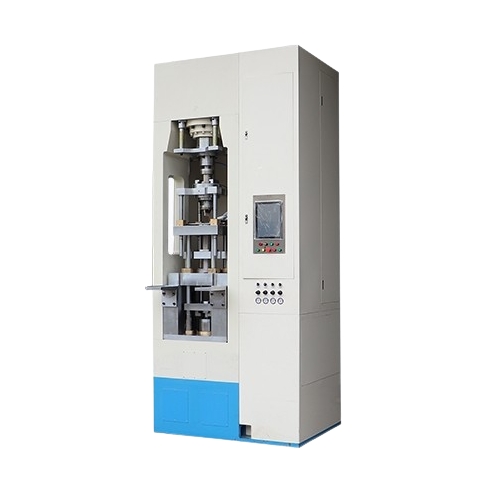

Automatic 1-500T Ceramic Powder Servo Press Fitting Molding Machine

Introduction

Servo powder molding machine is a new type of pure servo special equipment, using advanced mechanical, electrical, gas, instrument integrated control, drive technology. It is mainly used for the production of inductor, magnetic core, magnetic Powder metallurgy mechanical parts. The servo press has independent servo system and electrical system. It has floating pressing to control the molding density of the products effectively, two demoulding modes, protective demoulding and general demoulding, can be chosen. PLC is used in electric control. Adopt Button centralized control, at the same time equipped with mechanical limit device, so as to ensure the consistency of products. It has the characteristics of stability, accuracy and high efficiency. Servo powder molding machine is applicable to inductor magnetic core, powder metallurgy, precision ceramics, cemented carbide, magnetic materials and other industries that need powder molding, especially for multi-step shape of complex products.
Machine Pressure: 1-500T;

Drive Mode:

1. Upper punch (servo-hydraulic cylinder) + Lower punch (servo-hydraulic cylinder);

2. Upper punch (servo-hydraulic cylinder) + Lower punch (AC servo motor + lead screw linear drive);

3. Upper punch (AC servo motor + lead screw linear drive) + Lower punch (AC servo motor + lead screw linear drive);

Die Structure: 1-up-1-down, 1-up-2-down, 1-up-3-down, 2-up-2-down, 2-up-3-down, 2-up-4-down;

Features
1. the use of direct servo motor drive, molding speed faster, higher stability, die wear;

2. the finished product using servo motor launch, packing motor uniform, the product launch more smoothly;

3. shaped products after pressing, when the product is pulled out, the lower type is higher than the mother type, the machine can set up a delay device to push out the powder box to ensure the product quality and the powder box is connected with the lower type accurately;

4.This equipment is highly intelligent, the pressure automatic monitoring, the safety performance is high;

5.easy operation, easy maintenance;

6.the equipment does not need to add hydraulic oil, environment friendly, energy saving.

Technical parameters
