60T Tabletop Electric Powder Pallet Hydraulic Press Machine
Introduction
Electric powder press is widely used in the fields of new materials, superconductivity, powder ceramics, new power supply, batteries, building materials, metallurgical powder, etc. it can be used for calcium iron analysis, infrared spectroscopy (IR), X-ray fluorescence (XRF) analysis instrument is used together; the machine is compact in structure, light in weight, fast in pressure rise, simple in operation, safe and convenient; special tablet pressing die is selected, which can be used to press potassium bromide (KBr), sodium chloride (NaCl), cement and other powder materials into various test pieces, columns, heteromorphic bodies or combinations for analysis and research; at the same time, the machine is also suitable for other workers who need corresponding pressure For occasions, as a press, testing the pressure resistance of various objects and so on.
Parameter
Model | PCD-60S |
Pressure range | 0-60T |
Piston diameter | Chrome-plated cylinder φ150mm(d) |
Pressure display accuracy | 0.1T |
Maximum stroke distance | 50mm (T) |
Protective cover | Organic glass |
Stability of pressure | ≤1MPa/10min |
Diameter of working table | Φ160mm(D) |
Column spacing (mm) | 180 *210 mm(M*N) |
Pressurization method | Automatic program pressurization/manual gentle pressurization [Precise pressure control] |
Pressure conversion | Convert the pressure according to the shape of the sample |
Column number | 4 columns |
Digital display | 5 inch touch screen |
Pressure protection | It has a pressure overload protection function |
Slow pressure relief function | The program can slow down the pressurization speed |
Power supply | 220V/110V 50Hz (500W) |
Overall dimensions (mm) | 400*470*560mm (L*W*H) |
Weight | 165Kg |

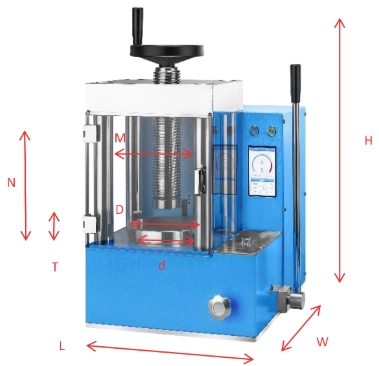

Dimension diagram of tablet press |  |
