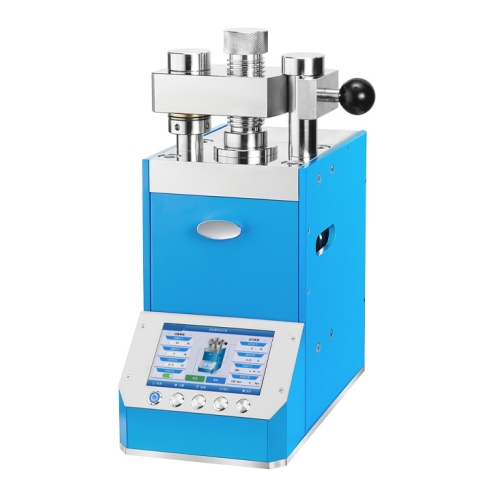

30T Automatic XRF Hydraulic Powder Pallet Press Machine
Technical parameters
Pressurization process | The 20-segment program pressurization can display the pressure spectrum |
Holding pressure time | Each section lasts up to 32,768 seconds and can also work for a long time without timing |
Pressure conversion | The pressure that the sample can withstand is automatically converted based on its shape and size |
Pressure display accuracy | 0.1 ton |
Liquid crystal display | 7-inch (IPS high-definition) touch screen |
Metal keys | Silver-plated contacts, with a service life of over 100,000 times |
Mold size | φ40mm/ 32mm(1 set of built-in mold) |
Types of molds | Boric acid/steel ring/plastic ring/aluminum ring |
Mold material | Stainless steel 440C die steel |
Demolding method | The automatic demolding operation of the upper plate cantilever structure is more convenient |
Pressure safety | The equipment is equipped with automatic pressure overload protection |
Data analysis | It can be optionally connected to a computer to perform functions such as data recording, analysis, comparison, modification and export |
Limit switch | The cylinder automatically depressurizes when it reaches the limit height |
Equipment power supply | 500W(220V/110 can be customized) |
Product size | 250x390x460 mm(LXWXH) |
Weight | 120 kg |
