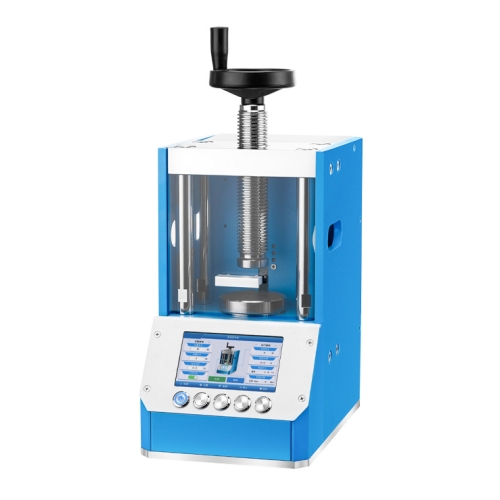

2T-60T Laboratory Automatic Hydraulic Press Machine For Pallet Making

Features

Based on the existing manual and electric hydraulic press and the proposal of our college customers, our company has designed and developed a new type of automatic powder hydraulic press to meet the requirements of the times. At present, the automatic hydraulic press has been put into use in the market with appropriate mold accessories, which can meet the requirements of customers in powder pressure forming. It is widely used It is applied to the analysis and research of new materials such as X-ray fluorescence, calcium iron analysis, superconductivity, building materials, powder ceramics, cement, etc. it is an alternative product of the existing manual and electric tablet press, which is deeply loved by users.

Advantages

1. New type full-automatic, program pressure, program pressure keeping, automatic pressure relief, intuitive operation, beautiful shape, etc., suitable for laboratory use.

2. Die pressure automatic conversion display, without manual conversion, so as to avoid die damage due to operational errors, the operation is more user-friendly.

3. It is equipped with limit protection switch. When the oil cylinder rises to the limit height, the pressure will be released automatically, so as to avoid the damage of the machine and oil leakage caused by the over position of the oil cylinder.

4. Large screen LCD, more intuitive operation, clearer display, convenient for user to set up and operate.

5. Integrated structure patent technology

Technical parameters

Model	PP-2S	PP-12S	PP-20S	PP-30S	PP-40S	PP-60S
Pressure range	0.01-2.00T	0-12T	0-20T	0-30T	0.01-40T	0-60T
Pressurization process	The 20-segment program pressurization can display the pressure spectrum
Holding pressure time	Each section lasts up to 32,768 seconds and can also work for a long time without timing
Pressure conversion	The pressure that the sample can withstand is automatically converted based on its shape and size
Pressure display accuracy	0.01 tons
Liquid level display	5-inch touch screen		7-inch touch screen
Metal keys	Silver-plated contacts, with a service life of over 100,000 times
Equipment protection	Steel plate protection with plexiglass door
Pressure safety	The equipment is equipped with automatic pressure overload protection
Limit switch	The cylinder automatically depressurizes when it reaches the limit height
Cylinder stroke (T)	30mm		40mm			50mm

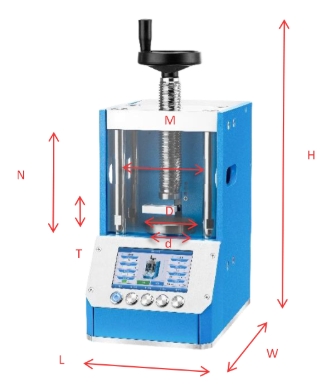

Spatial dimensions (M*N)	110*140 mm		140*160 mm		175*180 mm	185*220mm
Equipment power supply	500W (220V/110 can be customized)
Product size  (L*W*H, mm)	185*320*360	190*320*360	230*400*420	230*400*420	270*440*530	300*480*580
Weight	50 kg	50kg	92kg	95kg	130kg	180kg

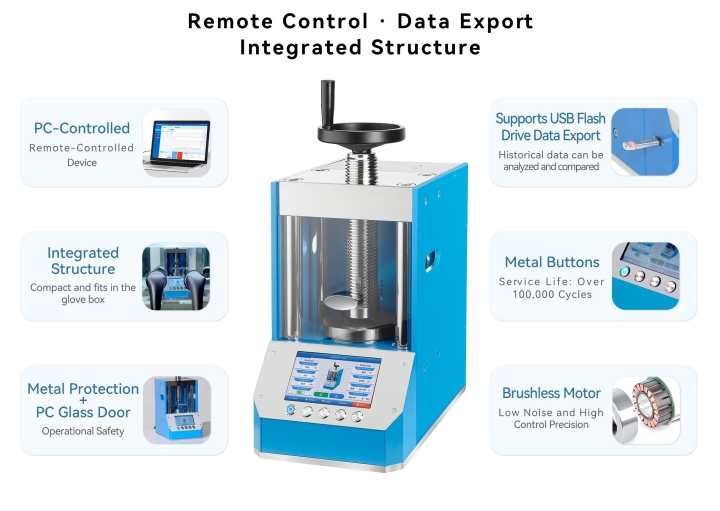

Structure
