65T Split Type Electric Hydraulic Pallet Press Machine For Laboratory R&D
Features
Electric powder press is widely used in the fields of new materials, superconductivity, powder ceramics, new power supply, batteries, building materials, metallurgical powder, etc. it can be used for calcium iron analysis, infrared spectroscopy (IR), X-ray fluorescence (XRF) analysis instrument is used together; the machine is compact in structure, light in weight, fast in pressure rise, simple in operation, safe and convenient; special tablet pressing die is selected, which can be used to press potassium bromide (KBr), sodium chloride (NaCl), cement and other powder materials into various test pieces, columns, heteromorphic bodies or combinations for analysis and research; at the same time, the machine is also suitable for other workers who need corresponding pressure For occasions, as a press, testing the pressure resistance of various objects and so on.
Technical parameters
Model | PCD-65S |
Pressure range | 0-65T |
Piston diameter (Chrome plated cylinder) | Φ160mm(d) |
Pressure display accuracy | 0.1T |
Maximum piston stroke | 50mm(T) |
Holding pressure time | 1s-∞s |
Display | 7 inch liquid crystal screen |
Protective cover | Organic glass |
Pressurization process | The 20-segment program pressurization can display the pressure spectrum |
Holding pressure time | Each section lasts up to 32,768 seconds and can also work for a long time without timing |
Pressure conversion | The pressure that the sample can withstand is automatically converted based on its shape and size |
Number of columns | Four columns |
Pressure protection | It has a pressure overload protection function |
Slow pressure relief function | The program can slow down the pressurization speed |
Workbench diameter | φ150mm (D) |
Column spacing | 220*300 mm (M*N) |
Power supply power | 1500W(220V/110V customizable) |
Dimension | Press: 400*470*560mm (L*W*H) Controller: 350*460*480mm |
Weight | Press: 165kg Controller: 109kg |

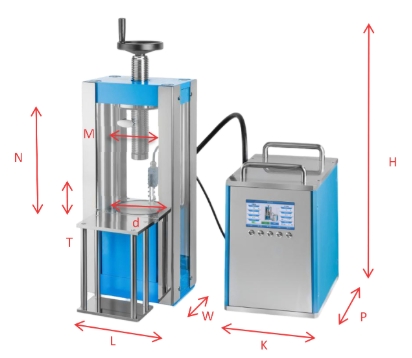

Structure |  |
