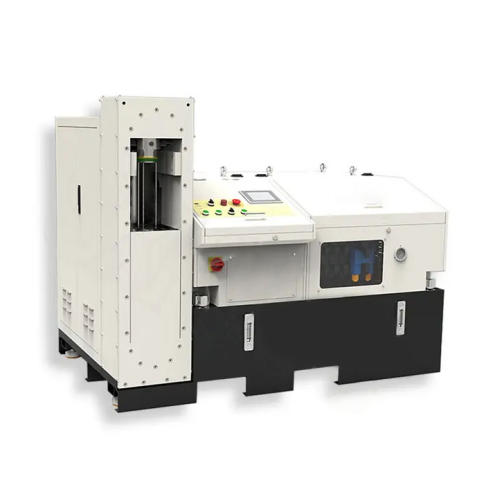

400MPa Large Cold Isostatic Press CIP Machine

Features

Convenient automatic material lifting and loading without the need for any external auxiliary devices

Intuitive full-color graphical user interface

The maximum working pressure for users can reach up to 300, 350 or 400MPa, making it suitable for a very wide range of material pressing requirements

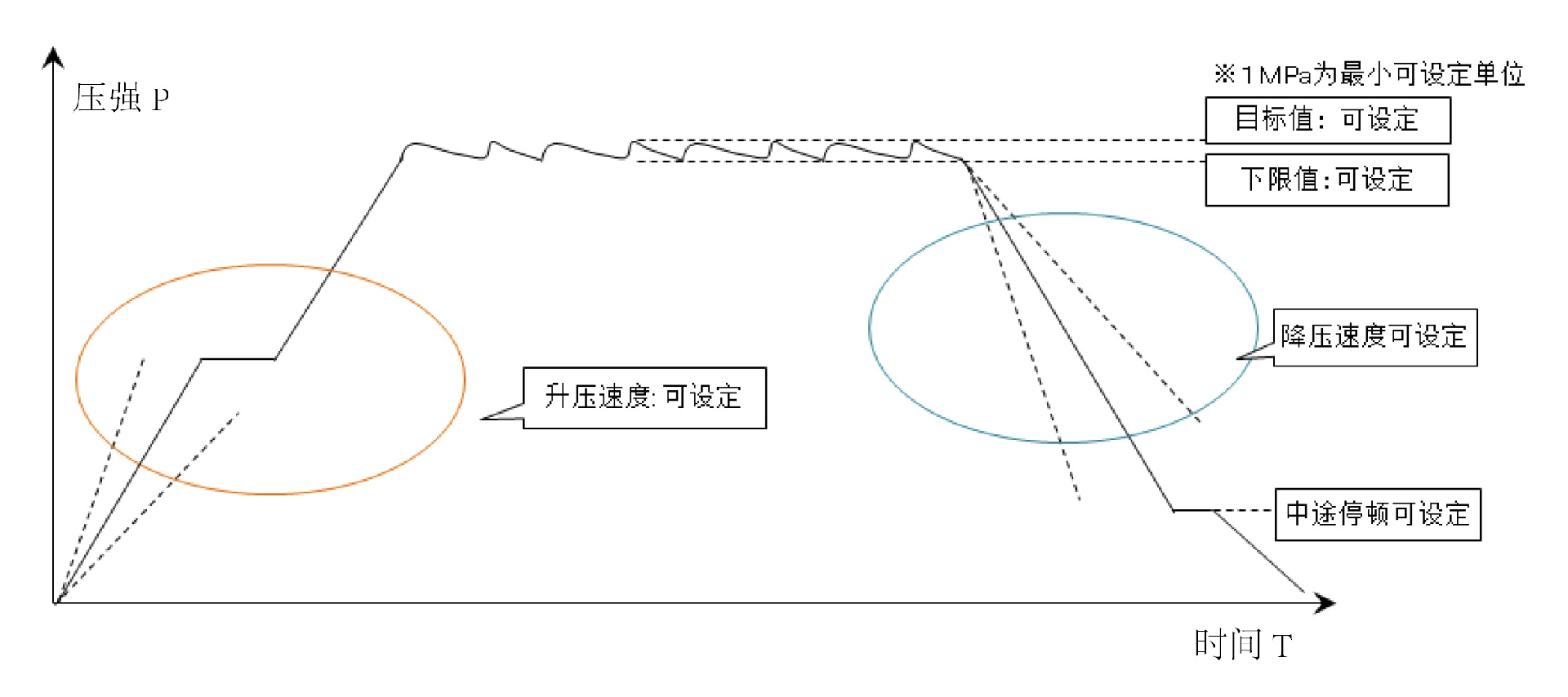

High-precision pressure curve setting and control, the entire pressure cycle data can be recorded and traced, and can be used to compare the differences in material forming effects under different isostatic pressing processes

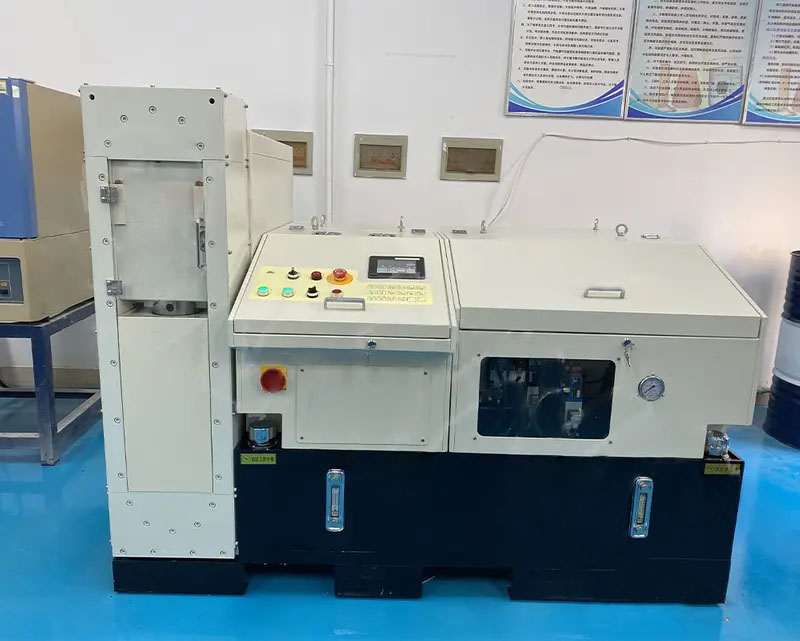

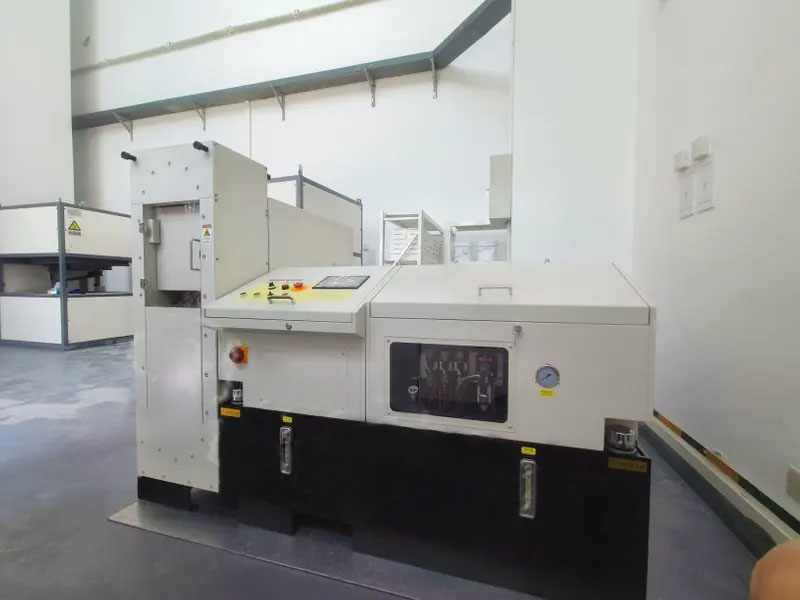

It is approximately 1.5 meters in height and covers an area of 2 to 3 square meters, making it suitable for placement in most laboratories

Control system

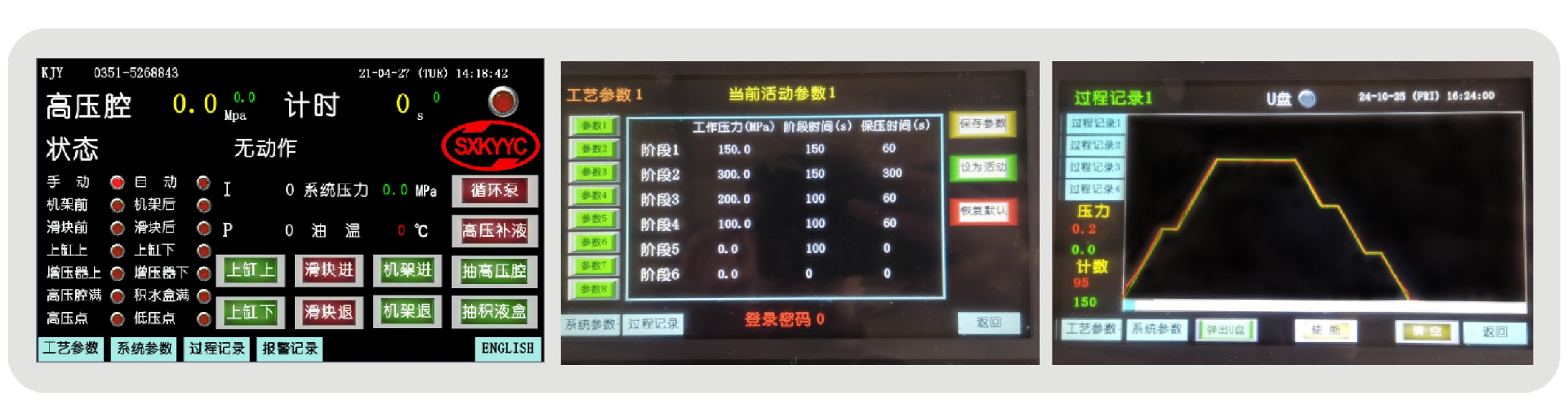

1. It adopts the touch screen produced by OMRON Company. After a finger touches the keys on the screen, the system responds quickly.

2. The human-machine interface is friendly and friendly, making it easy to set the speed of pressure increase and decrease.

3. It has powerful data recording and display functions, dynamically and in real time showing the pressure change curve.

4. The membrane switch is attached to the surface of the control cabinet and features a graphical design for easy understanding.

Security guarantee

The entire equipment adopts a fully enclosed design with a thickened sheet metal casing. All high-voltage components are installed inside the equipment. Meanwhile, to ensure the safe operation of the equipment, multiple safety protection devices are set up.

1. Manual pressure relief valve. In case of emergency or malfunction, this valve can be manually opened for pressure relief protection of the press. Only after it is closed can the pressure be raised again.

2. The hydraulic system has a preset pressure value. Once the preset pressure value is exceeded, the relief valve will automatically overflow.

3. Pressure sensor and electrical control system: When the working pressure exceeds the preset pressure value, the electrical control system automatically stops the operation of the pressure-increasing system.

4. The control cabinet panel is equipped with an emergency stop mushroom button. Once started, it can stop the press operation in the middle of any working stage.

5. Interlocking of electrical control programs. The press operates strictly in accordance with the working procedures. If the previous step is not completed or a fault occurs, the next step cannot be carried out and an operation fault information will be sent out. Only after the fault is eliminated can the next step of operation be continued.

Technical parameters
