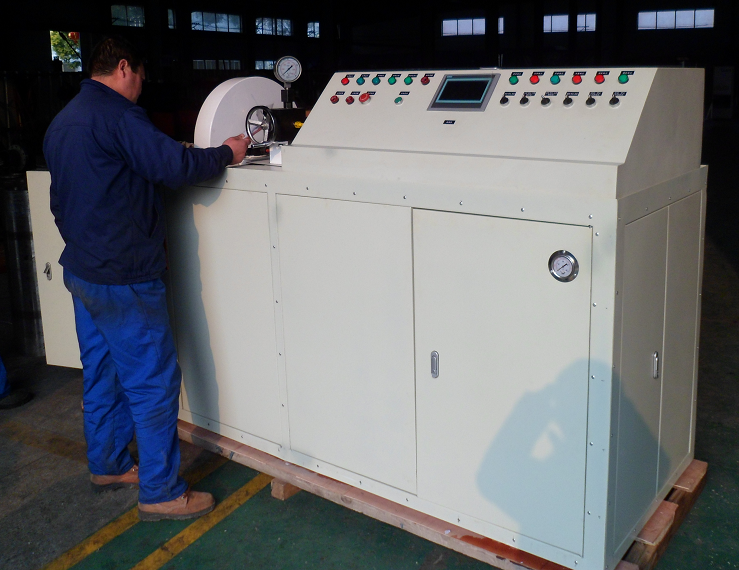

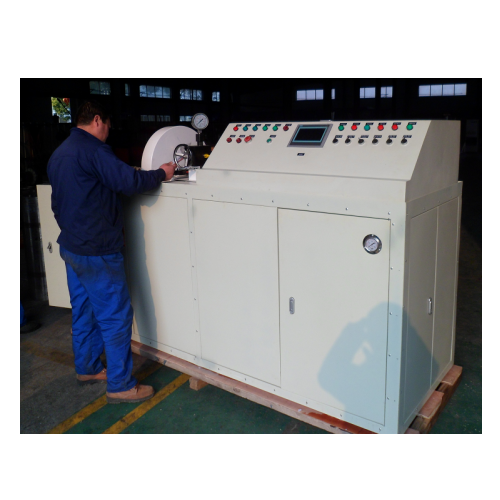

300MPa High Pressure Cold Isostatic Press Machine

Introduction

This ultra-high pressure equipment features a pre-stressed steel wire-wound composite frame, a pre-stressed steel wire-wound working cylinder, and a floating end cover. Its design and manufacturing comply with the standard "JB/T 7348-2005 Steel Wire-Wound Cold Isostatic Press." The equipment is primarily used in the powder metallurgy industry, including applications in refractory materials and ceramics, employing the wet-bag dry molding method.

Cold Isostatic Press: It is a powder forming equipment operating under ultra-high pressure conditions. Typically, rubber or plastic is used as the mold material, and liquid serves as the pressure-transmitting medium. This applies equal pressure in all directions to the powder billet, forming it into a predetermined shape, thereby providing a billet for subsequent processes such as sintering, forging, or hot isostatic pressing.

Cold Isostatic Press: Due to its ability to achieve high density and excellent material homogeneity in powder raw materials, it is widely used in various industries, including hard alloys, powder metallurgy, high-speed steel, titanium and titanium alloys, refractory materials, graphite, crucibles, ceramics, rare earth permanent magnets, crystals, pharmaceuticals, and food. Products manufactured using a cold isostatic press are highly suitable for machining and can also be used to produce components with particularly complex shapes.

Main Technical Parameters

★ Working cylinder inner diameter: 150 mm

★ Effective height of working cylinder: 350 mm

★ Maximum working pressure: 300 MPa

★ Effective working inner diameter: 130 mm

★ Effective working height: 350 mm

★ Time to pressurize to 300 MPa in an empty cylinder: ≤ 3 min

★ Total weight: ~3 tons
