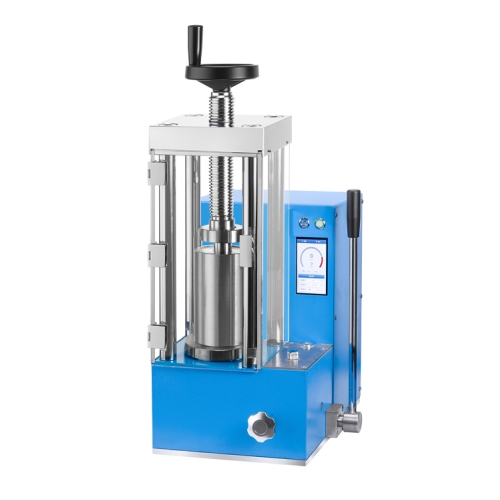

12T-60T Laboratory Electric Cold Isostatic Pressing Machine
Technical parameters
Model | PCD-12J | PCD-20J | PCD-40J | PCD-60J | |||
Pressure range | 0-12T | 0-20T | 0-40T | 0-60T | |||
Piston diameter(d) | Chrome-plated cylinder φ95mm | Chrome-plated cylinder φ110mm | Chrome-plated cylinder φ130mm | Chrome-plated cylinder φ150mm | |||
The overall structure of the main body | The equipment has no sealed connection, reducing oil leakage points | ||||||
Display accuracy | 0.1T | ||||||
Display screen | 4.3 inch touch screen | ||||||
Maximum piston stroke (T) | 40mm | 50mm | |||||
Protective cover | Organic glass | ||||||
Pressurization method | Automatic program pressurization/manual gentle pressurization [Precise pressure control] | ||||||
Pressure conversion | Convert the pressure according to the shape of the sample | ||||||
Number of columns | Four columns | ||||||
Pressure protection | It has a pressure overload protection function | ||||||
Slow pressure relief function | The program can slow down the pressurization speed | ||||||
Ambient temperature | 10 ℃ - 40 ℃ | ||||||
Isostatic pressure | 0-300 MPa | 0-300MPa | 0-500Mpa | 0-300MPa | 0-500Mpa | 0-300MPa | 0-500Mpa |

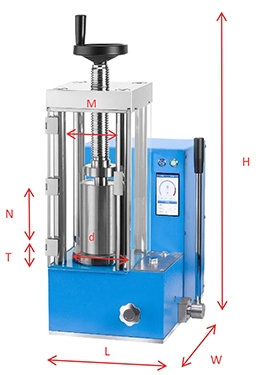

Isostatic pressure chamber (M*N) | Φ30*150mm | Φ30*150mm | Φ22*150mm | Φ40*150mm | Φ30*150mm | Φ50*150mm | Φ35*150mm |
Power supply | 500W (220/110V can be customized) | ||||||
Product size (L*W*H) | 305*430*600mm | 305*430*600mm | 355*450*710mm | 405*470*720mm | |||
Weight | 115kg | 115kg | 160kg | 220kg | |||
