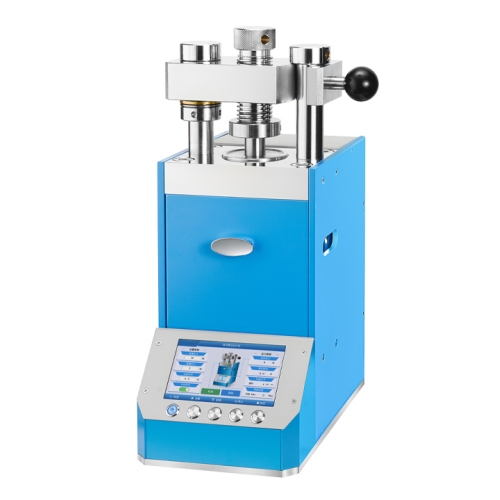

20T-60T Laboratory Automatic Hydraulic Cold Isostatic Press Machine For Powder Sample Forming
Technical parameters
Model | PP-20J | PP-40J | PP-60J |
Pressure range | 0-20T | 0-40T | 0-60T |
Pressurization process | The 20-segment program pressurization can display the pressure spectrum | ||
Holding pressure time | Each section lasts up to 32,768 seconds and can also work for a long time without timing | ||
Pressure conversion | The pressure that the sample can withstand is automatically converted based on its shape and size | ||
Pressure display accuracy | 0.1 ton | ||
Liquid crystal display | 7-inch (IPS high-definition) touch screen | ||
Metal keys | Silver-plated contacts, with a service life of over 100,000 times | ||
Equipment protection | The cantilever structure is more convenient to operate | ||
Pressure safety | The equipment is equipped with automatic pressure overload protection | ||
Limit switch | The cylinder automatically depressurizes when it reaches the limit height | ||
Cylinder stroke | 50 (T) | ||
Cavity pressure | 300Mpa | ||
Cavity size | φ30*150mm | Φ40*150mm | Φ50*150mm |
Equipment power supply | 500W(220V/110V) | ||
Product size (L*W*H) | 240*390*560mm | 280*460*660mm | 300*500*680mm |
Weight | 135kg | 180kg | 240kg |

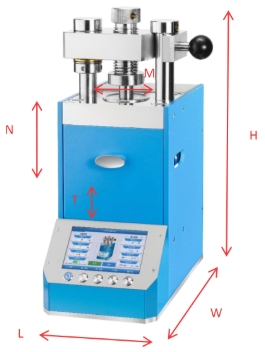

Structure |  | ||
