Laboratory Manual 12-60T CIP Cold Isostatic Pressing Machine
Technical parameters
Model | PC-12J | PC-20J | PC-40J | PC-60J | |||
Pressure range | 0-12T | 0-20T | 0-40T | 0-60T | |||
Piston diameter(d) | Chrome-plated cylinder φ95mm | Chrome-plated cylinder φ110mm | Chrome-plated cylinder φ130mm | Chrome-plated cylinder φ150mm | |||
The overall structure of the main body | The equipment has no sealed connection, reducing oil leakage points | ||||||
Pressure gauge | Dual scale display for pressure and intensity | ||||||
Maximum piston stroke (T) | 40mm | 50mm | |||||
Protective cover | Organic glass | ||||||
Ambient temperature | 10 ℃ - 40 ℃ | ||||||
Isostatic pressure | 0-300 MPa | 0-300MPa | 0-500Mpa | 0-300MPa | 0-500Mpa | 0-300MPa | 0-500Mpa |
Isostatic pressure chamber (M*N) | Φ30*150mm | Φ30*150mm | Φ22*150mm | Φ40*150mm | Φ30*150mm | Φ50*150mm | Φ35*150mm |
Product size (L*W*H) | 305*195*530mm | 305*195*630mm | 355*215*710mm | 405*240*720mm | |||
Weight | 80kg | 95kg | 130kg | 180kg | |||

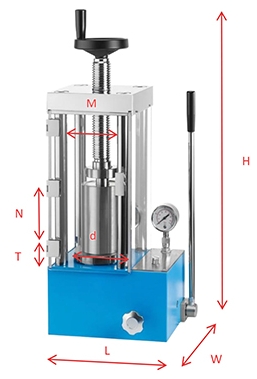

Schematic diagram of dimensions |  | ||||||
