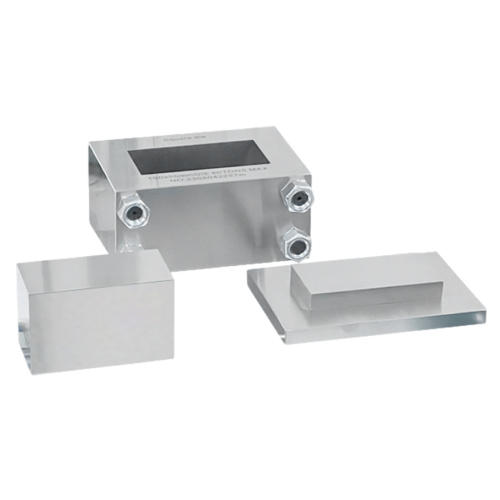

Rectangular Splicing Punch Die Mold Set With 81-150mm Length For Hydraulic Press
Introduction

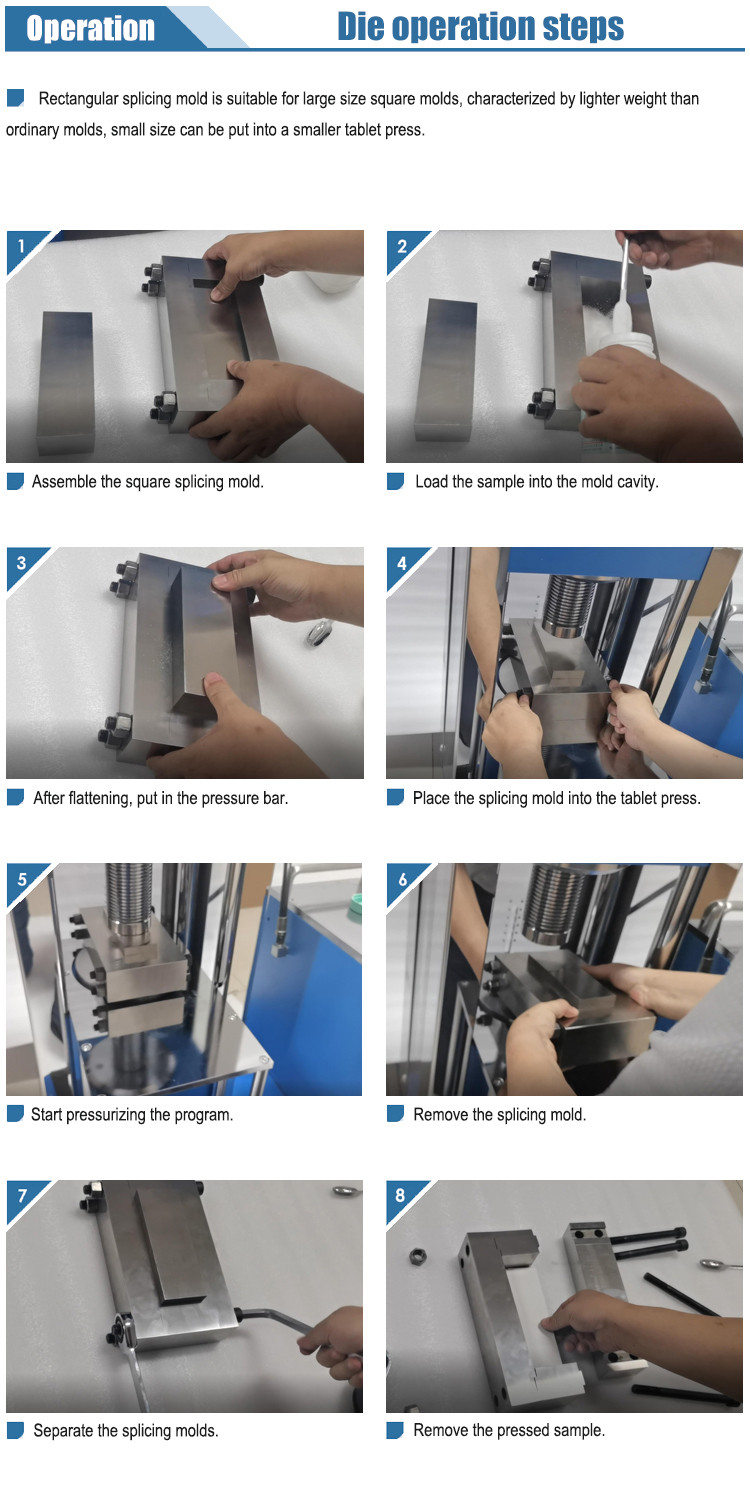

Rectangular splicing molds are suitable for large-sized square molds. Their advantage lies in their lighter weight compared to conventional square molds, and their compact size allows them to fit into smaller tablet presses.
Technical parameter
Instrument model | PMF-PA |

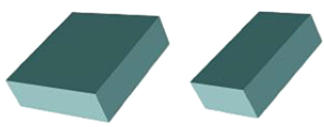

Press the shape of the sample |  |
Mold material | Alloy tool steel: Cr12MoV |
Indenter hardness | HRC60-62 |
Sample size | Length 81-150mm (M) |
Cavity depth | 60mm (N) |
Overall dimensions | 160*160mm (L*H) |
Mold weight | 20kg |

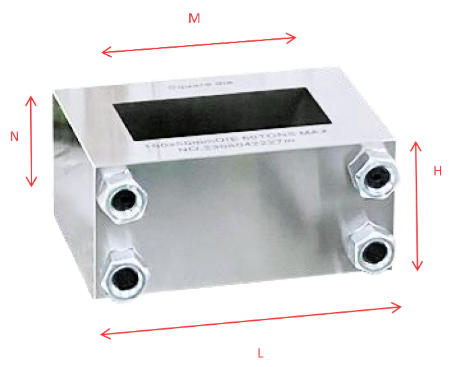

Schematic diagram of dimensions |  |
