Dia13mm Cylindrical Infrared Mold Demountable FTIR Mold
Technical parameter
Instrument model | PMH-B |
Press the shape of the sample |  |
Mold material | cemented carbide YT15 |
Indenter hardness | HRC72-HRC75 |
Sample size | Φ13mm (M) |
Cavity depth | 20mm (N) |
Overall dimensions | Φ43x78mm (L*H) |
Mold weight | 0.6kg |

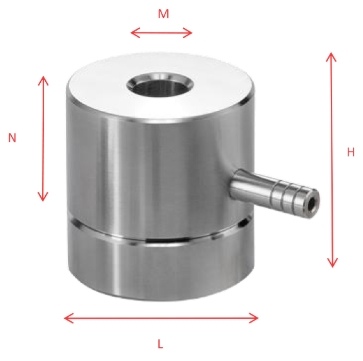

Schematic diagram of dimensions |  |
