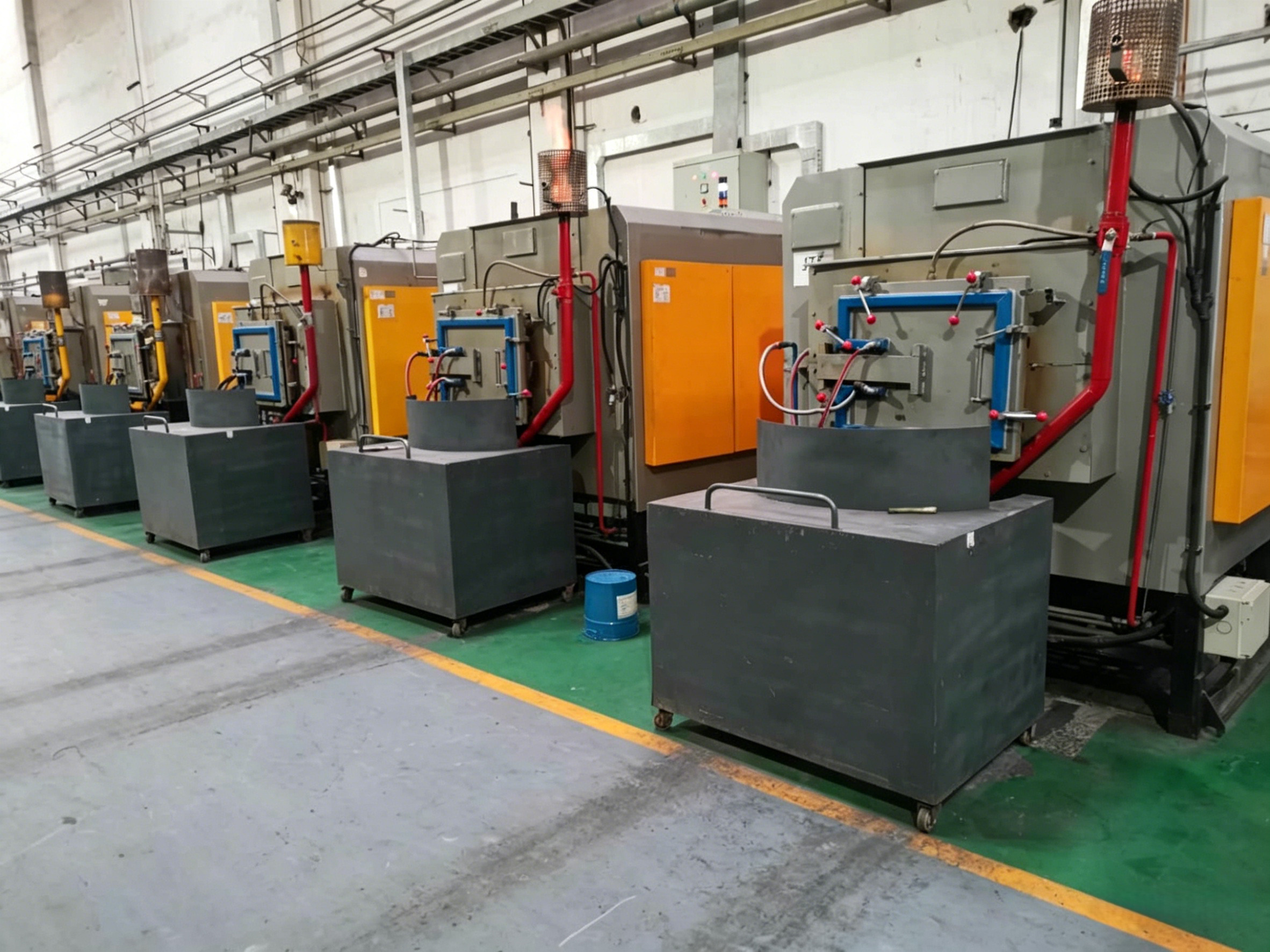

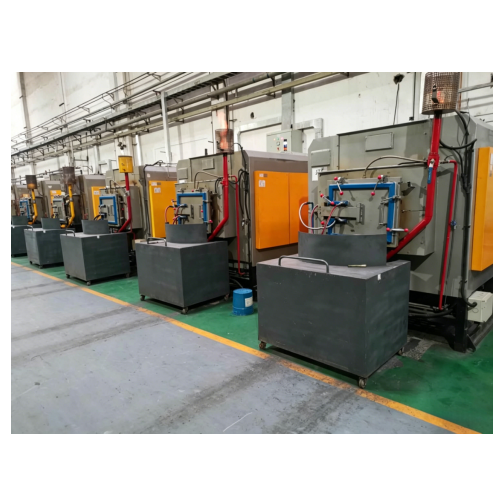

PLC Controlled 1000℃ Atmosphere Debinding Furnace For Silver-Tungsten Alloy Production
Product Description
This equipment is mainly used for debinding and pre-sintering of cemented carbide, silver-tungsten alloy and similar materials.
Technical Features
Adopts touch-screen operation and centralized PLC control, with simple operation and high reliability.
Equipped with specially structured debinding box, ensuring high debinding efficiency.
Supports functions such as remote operation, remote fault diagnosis and remote software upgrade.
Equipped with an external circulation rapid cooling system.
Equipped with fault alarms for over-temperature, gas flow abnormality, etc., together with mechanical automatic protection and interlock functions, ensuring high equipment safety.
Specification
Parameters / Model | 610×350×1000 |
Number of Heating Zones | 2 |
Max. Temperature (°C) | 1000 |
Rated Heating Power (kW) | 98 |
Working Zone Temperature Uniformity (°C) | ±5 |
Binder Recovery Rate (%) | ≥98 |
Note: The above parameters are calculated based on the cemented carbide debinding process. They can be adjusted according to process requirements and shall not be regarded as acceptance criteria. The actual specifications shall be subject to the technical agreement.
Configuration Options
Furnace lining material: aluminum silicate fiber blanket / aluminum silicate fiber board / high-temperature refractory brick / lightweight insulating brick / high-alumina refractory brick
Heating element material: 0Cr21Al6Nb
Furnace tube material: SUS310S
Operation panel: mimic panel / touch screen / industrial control computer
PLC: Omron / Siemens
Thermocouple: Type K
Electrical components: Chint / Schneider / Siemens
