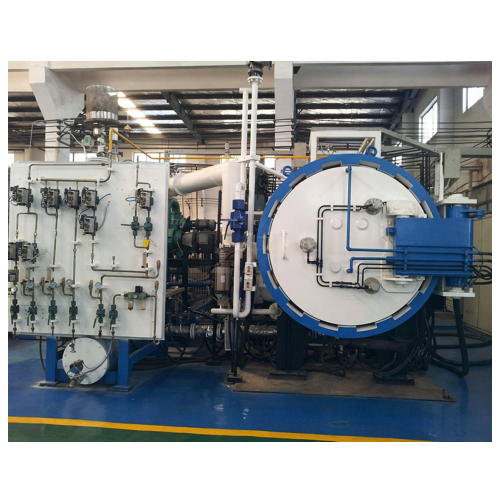

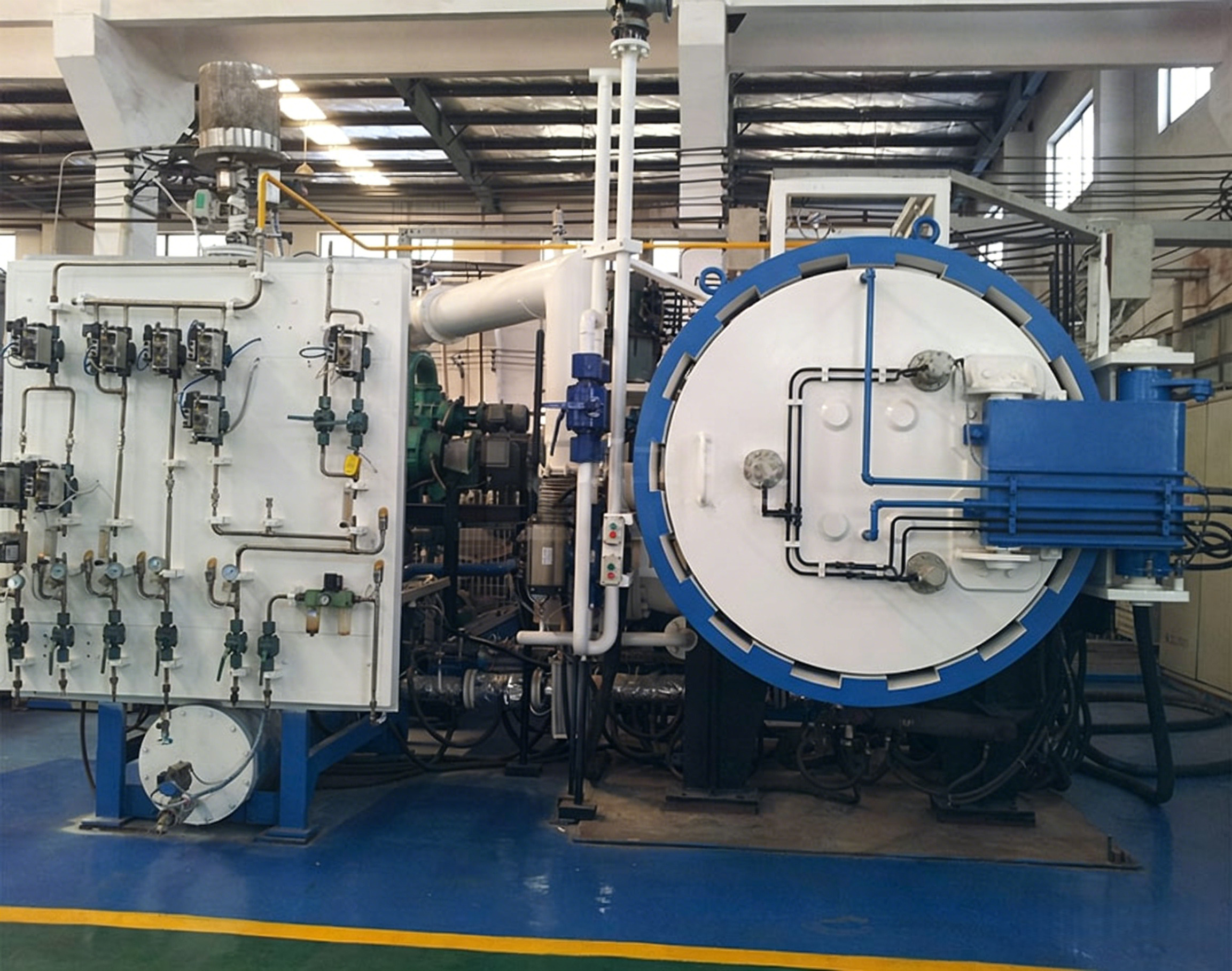

Automatic 1200℃ 120L Vacuum Debinding Pressure Sintering Furnace For Powder Metallurgy Production
Product Description
Vacuum (Debinding) Pressure Sintering Furnace is mainly used for vacuum sintering and pressure sintering of metal matrix powder metallurgy products, as well as vacuum infiltration of copper tungsten alloys.
Application Scope
Copper tungsten alloys, high density alloys, cemented carbides, etc.
Technical Features
Adopts special furnace chamber structure and heater arrangement, ensuring excellent temperature uniformity.
Equipped with specially structured debinding box with reliable sealing, enabling thorough debinding without contamination to furnace components.
Provides multiple functions including flexible vacuum pumping, vacuum sintering, pressure sintering, micro positive pressure sintering, partial pressure sintering, negative pressure debinding, TOWAC debinding, and micro positive pressure debinding.
Utilizes advanced thermal insulation structure and materials, featuring good thermal insulation performance and low heat storage of the furnace chamber, achieving over 20% energy saving compared with traditional designs.
Compatible with process atmospheres: N₂ / Ar / H₂.
Specification
Parameters / Model | PSF-040408 | PSF-050518 |
Working Zone Size W×H×L (mm) | 400×400×800 | 500×500×1800 |
Max. Temperature (°C) | 1200-1550 | 1200-1550 |
Temperature Uniformity (under vacuum) (°C) | ±5 | ±5 |
Temperature Uniformity (under pressure) (°C) | ±10 | ±10 |
Ultimate Vacuum Degree (Pa) | 1 | 1 |
Pressure Rise Rate (Pa/h) | 0.67 | 0.67 |
Max. Pressure (MPa) | 10 | 10 |
Note: The above parameters can be adjusted according to process requirements and shall not be regarded as acceptance criteria. The final specifications shall be subject to the technical proposal and agreement.
Configuration Options
Door locking mode: manual / automatic
Furnace shell: full carbon steel / inner stainless steel layer / full stainless steel / Q345
Insulation material: rigid carbon fiber felt
Heating element material: isostatic pressing graphite
Muffle material: graphite
Thermocouple: Type C (tungsten sleeve / molybdenum sleeve / ceramic sleeve)
