Laboratory Small 1200℃ Hybrid Furnace Muffle Box & Tube Dual-Purpose Furnace
Introduction

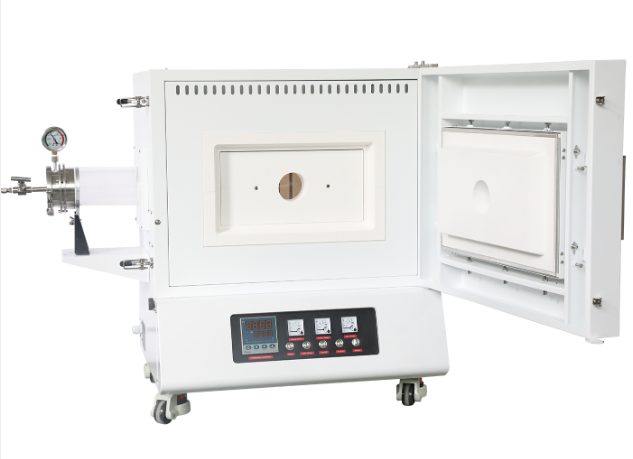

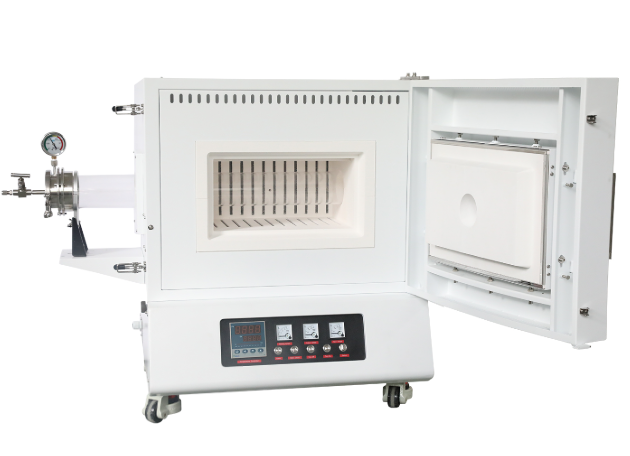

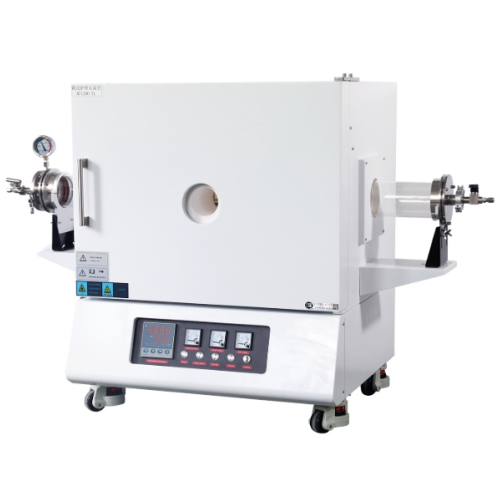

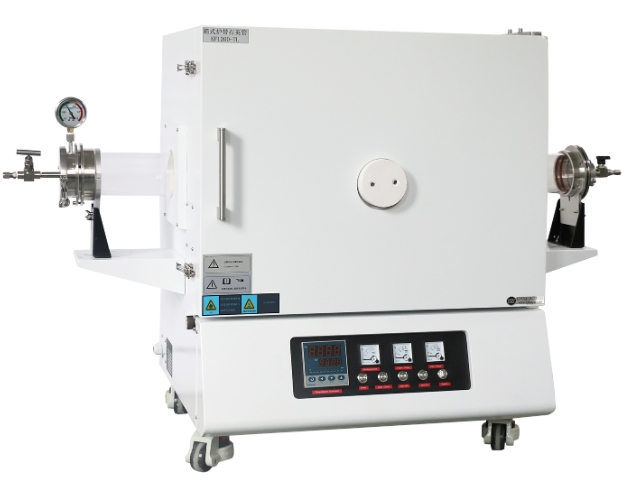

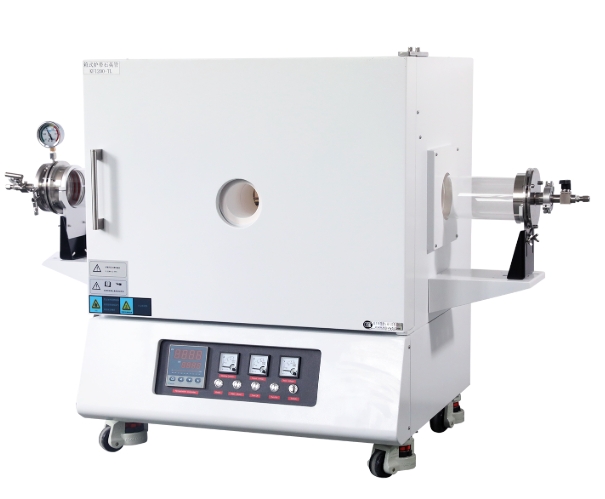

The KTL1200 is a small hybrid tube/box furnace. Its chamber dimensions are 400×200×200 mm. As a standalone box furnace, it can be used for heat treatment of samples in air. This unit is also equipped with a quartz tube and stainless steel sealing flanges, allowing heat treatment of samples under vacuum or protective atmosphere. The maximum temperature of the furnace can reach 1200℃.
Technical Parameters
Parameter | Description |
Model | KTL1200 |
Power | 4.5 kW |
Chamber Dimensions (mm) | 400 × 200 × 200 (L×W×H) – Volume 16 L |
Furnace Tube Dimensions | 80 × 1000 mm |
Overall Dimensions | 1340 × 700 × 960 mm (L×W×H) |
Main Features | Dual-use (box or tube).
A camera can be installed on the front observation window to monitor sample sintering.
Maximum temperature 1200℃.
Side-opening door for easy operation. |
Power Supply Voltage | 220V |
Number of Phases | Single phase |
Heating Elements | Domestic high-quality resistance wire (optional: Swedish Kanthal A1 imported resistance wire) |

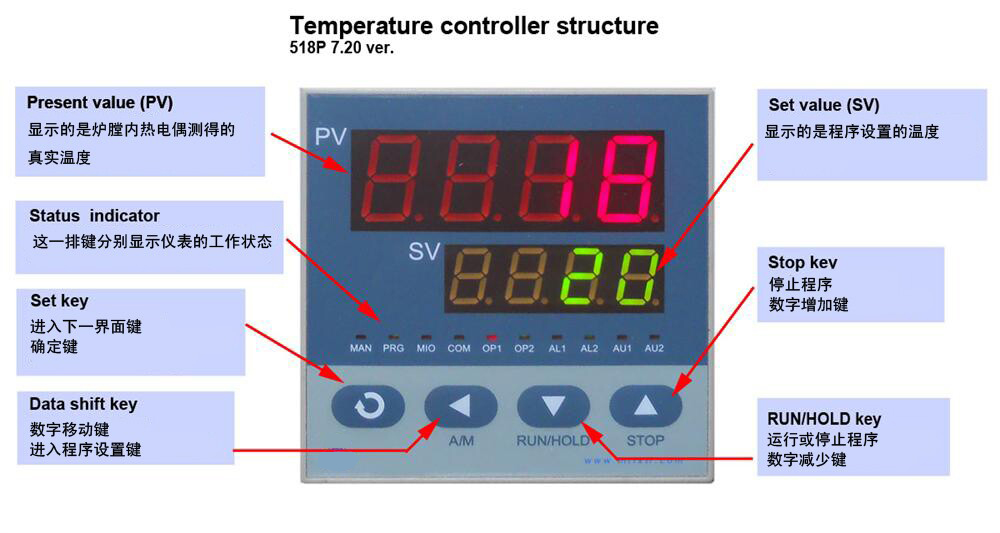

Control Method | 30-segment programmable temperature control.
1. 30-segment program control with intelligent PID adjustment.
2. Over-temperature protection – heating circuit automatically cuts off when over-temperature or thermocouple break occurs (when furnace temperature exceeds 1120℃ or thermocouple burns out, the AC relay on the main circuit disconnects, ON lamp goes out, OFF lamp lights up – effectively protecting the furnace).
3. Equipped with RS485 communication interface (standard when software is purchased).
4. Power-off protection: after power failure and restart, the program starts from the furnace temperature at the time of power failure, not from the initial temperature.
5. The instrument has an auto-tuning function.
|
Temperature Control Mode | Intelligent PID |
Over-temperature Protection | Yes |
Over-current Protection | Yes |
Broken Thermocouple Protection & Indication | Yes |
Chamber Material | 1. High-quality, high-purity alumina polycrystalline fiber chamber formed by vacuum suction.
2. Formed using Japanese technology.
3. The spacing and pitch of the resistance wire inside the chamber are arranged according to mature Japanese thermal technology, with temperature field simulated by thermal software. |
Control Accuracy | ±1℃ |
Maximum Temperature | 1200℃ |
Rated Temperature | 1100℃ |
Thermocouple Type | K-type |
SCR (Thyristor) | Triac |
External Surface Temperature | ≤45℃ |
Warranty | One-year warranty, lifetime technical support.
Special note: consumable parts such as heating elements and sample crucibles are not covered under warranty.
Damage caused by the use of corrosive gases is not covered under warranty. |
Important Notes | 1. For safety, place the furnace in a well-ventilated area.
2. To extend furnace service life, we recommend a heating rate not exceeding 10℃/min and a cooling rate not exceeding 5℃/min.
3. This furnace is not vacuum-tight; do not introduce toxic or explosive gases.
4. Do not place samples directly on the bottom brick; always use a proper crucible.
5. During heating, ensure that samples and crucibles do not touch the heating elements or thermocouple.
6. If the furnace has not been used for a long time, perform a baking (drying) procedure before reuse. |
