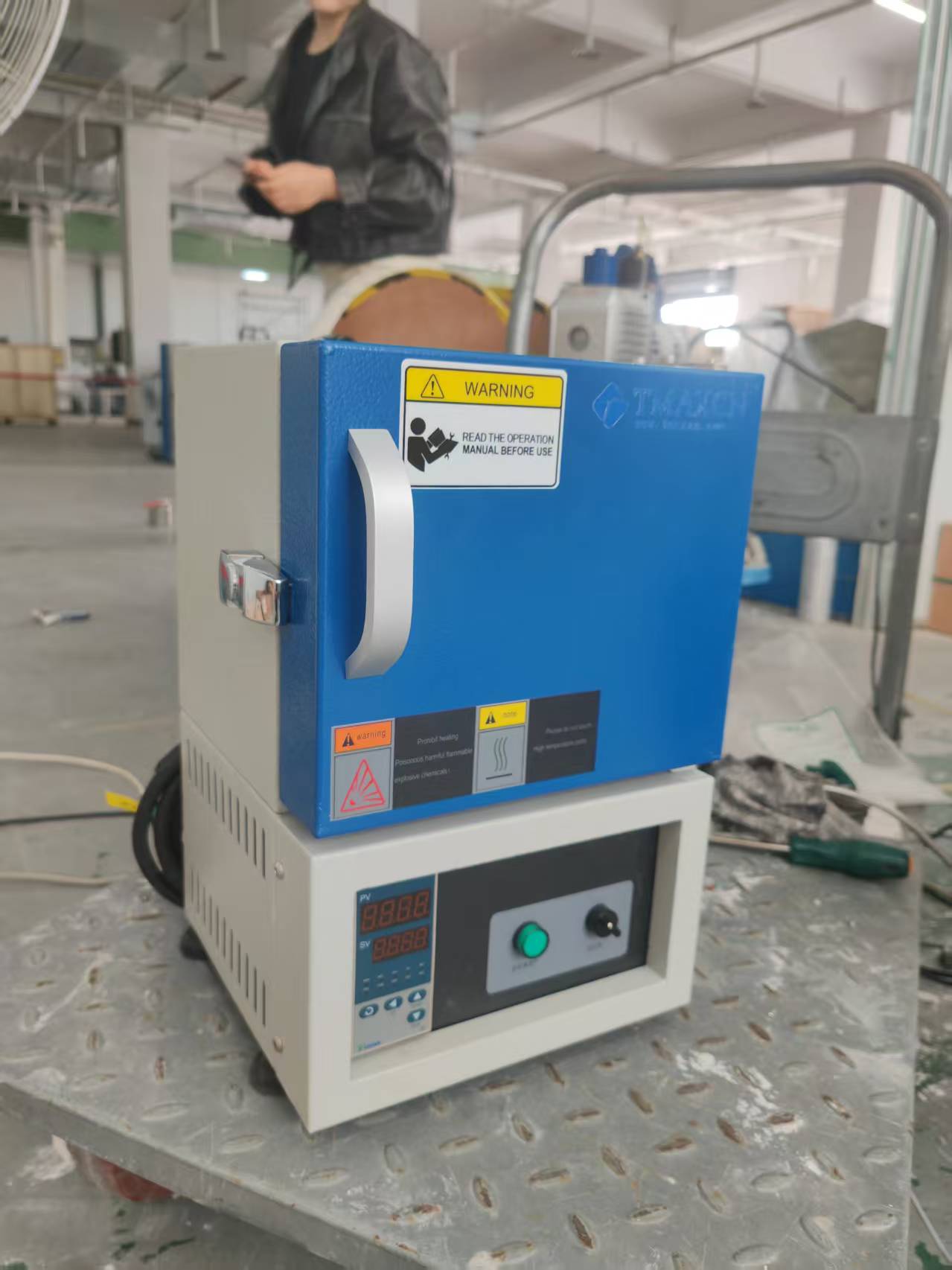

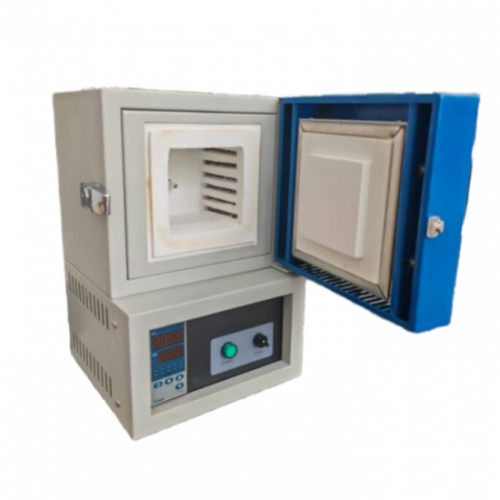

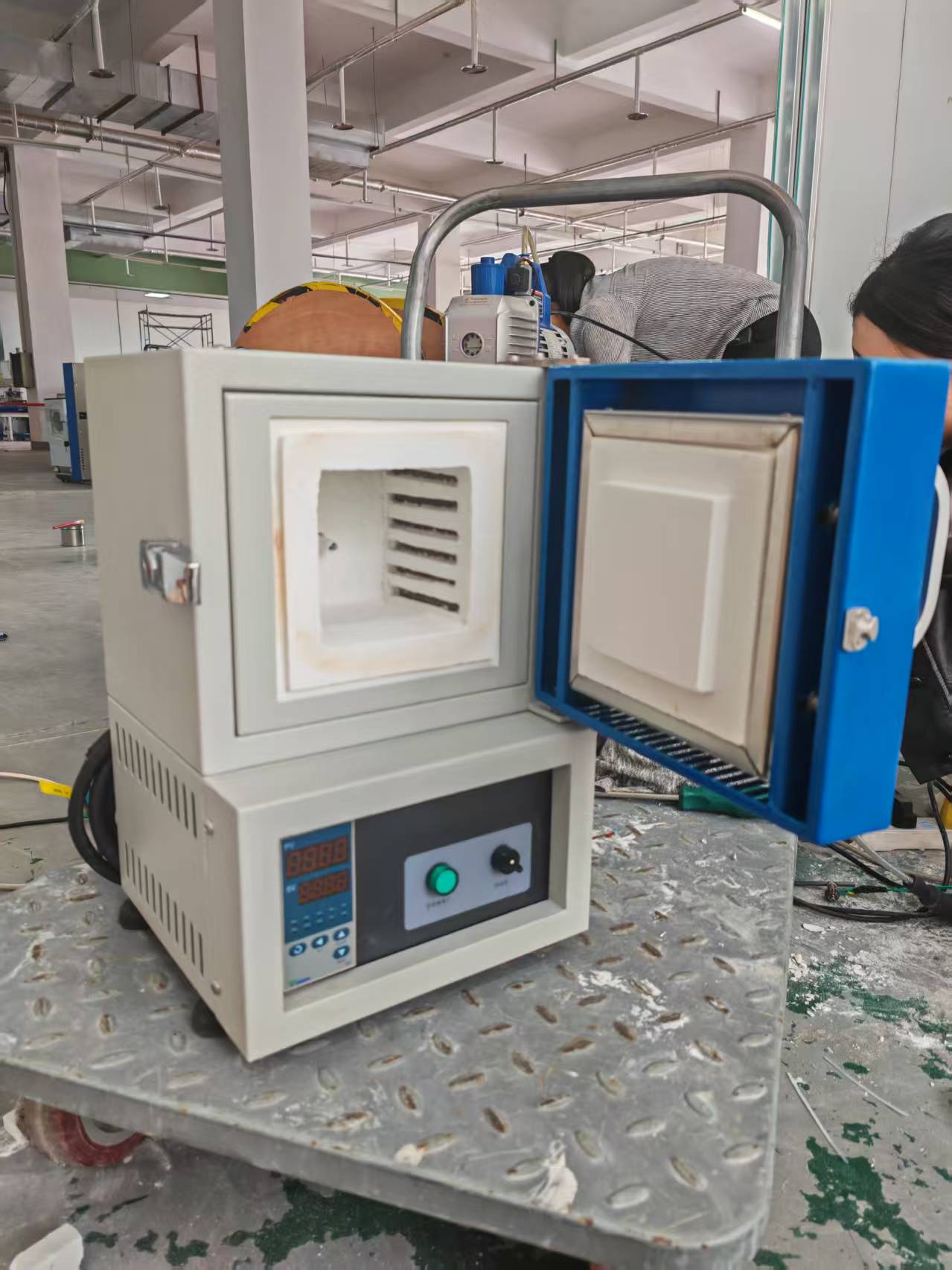

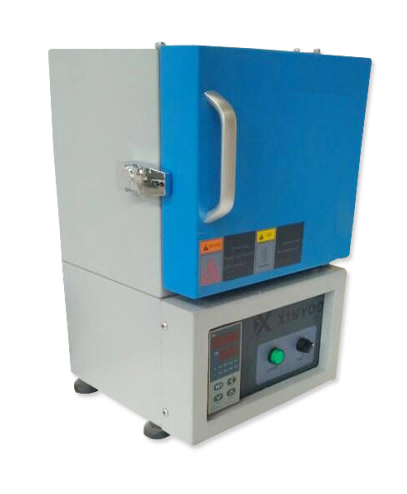

Laboratory 1000C Mini Muffle Furnace With K-type Thermocouple
Technical parameters
Main parameter | PN: SX2-1-11TPmini Max.Temp: 1100C Working temperature:0-1000C Chamber size:D100*W100*H100mm Voltage: 220V single phase Power:1kw Heating rate:0~20 Degree/Min，suggest 15C/min Heating element:Resistance wire Thermocouple：K type Temperature accuracy: ±1℃ | ||
Furnace Chamber material | Adopt the most advanced light alumina ceramic fiber , with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance. | ||
Furnace chamber design | Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace. | ||
Furnace shell structure | Electric furnace shell matrial is The furnace shell adopts single-layer carbon steel structure. | ||
Temperature controlling | Adopt international advanced temperature controller, it can set one temperature | ||
Warranty | One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and ceramic tube damaged by user. Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty. | ||
Standard Package Accessories: | |||
Electric Furnace | 1 set | | |
High temperature gloves | 1 pair |  | |

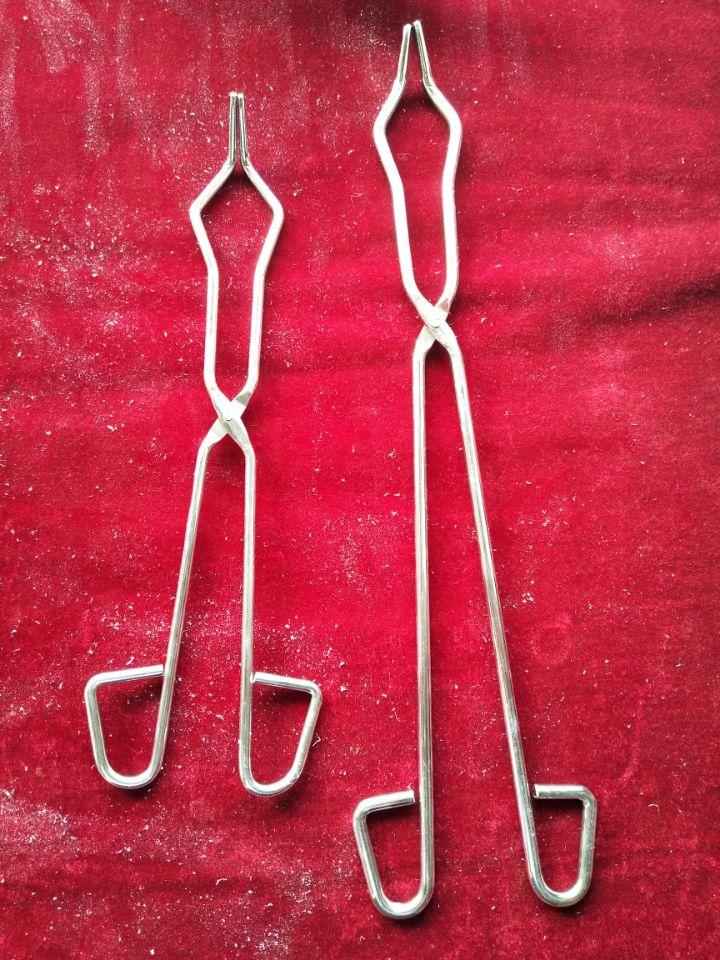

Crucible clip | 1 pc | | |
User manual | 1 book |  | |
Please let me know your address in details,then we can send freight cost to you.
