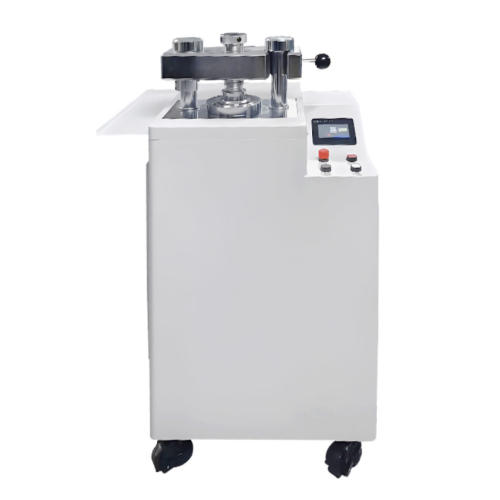

Laboratory 40T Automatic Fluorescent Powder Compacting Press Machine
Technical Parameters
Parameter | Specification |
Instrument Model | PX-40 |
Control Mode | Touchscreen operation, PLC program control |
Mold Types (optional) | Boric acid edge, aluminum cup, steel ring, plastic ring |
Maximum Pressure | 40 T |
Holding Time | Adjustable (arbitrary) |
Piston Stroke | 100 mm |
Column Opening | 220 mm |
Overall Dimensions (L×W×H) | 650×540×1240 mm |
Weight | Approx. 325 kg |
Power Supply | AC 3-phase 380V ±5%, 50 Hz |
Rated Power | 1.3 kW |
Power Cable | 5-core (3 phases + neutral + ground), length >2 m |
Hydraulic Oil Type | L-HM46 high-pressure anti-wear hydraulic oil |
Ambient Temperature Range | 10 ~ 40 °C |

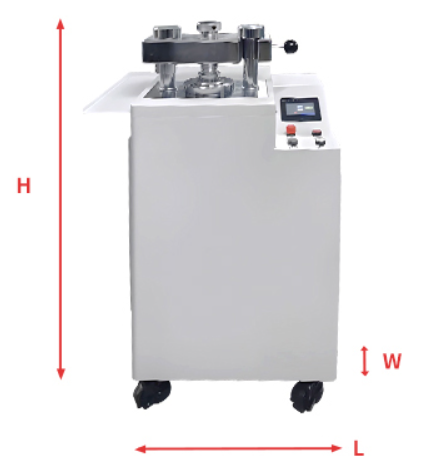

Dimension diagram |  |

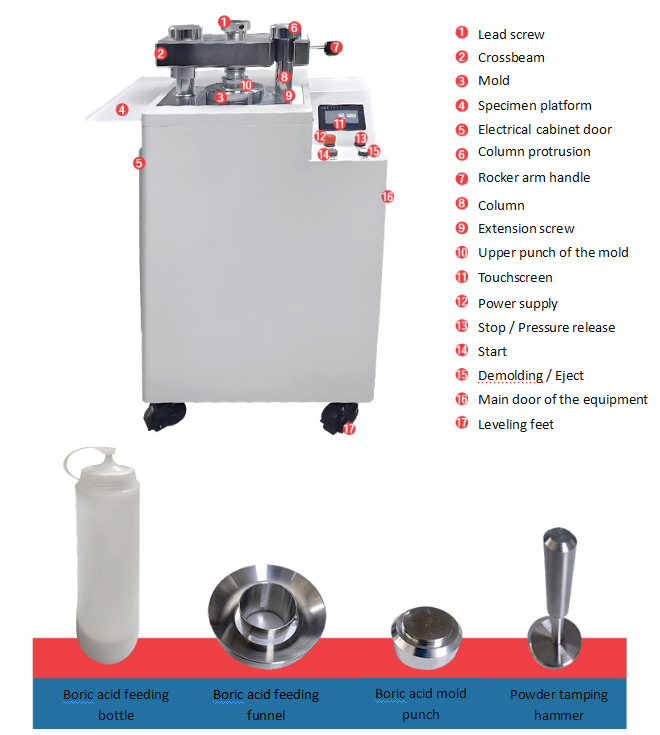

Structure
