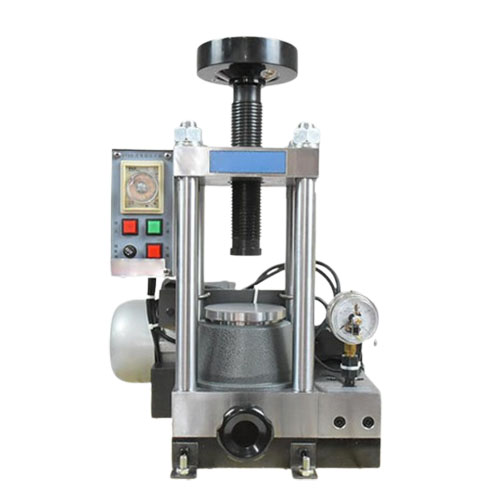

Laboratory 30T Electric XRF IR Tablet Press Machine For Powder Pellet Pressing
Introduction
The FYD Electric Tablet Press is widely used in various fields such as new materials, powder ceramics, new power sources, and building materials. It can be paired with analytical instruments such as calcium-iron analyzers, infrared spectroscopy (IR), and X-ray fluorescence (XRF) analyzers. Using specific molds, it can press various shapes of tablets, cylinders, irregular bodies, and composite structures for scientific research.
This machine features rapid pressure application and quick demolding, and is safe, reliable, maintains constant pressure, has no oil leakage, is pollution-free, and operates quietly with low noise. It is easy to maintain and has an out-of-box qualification rate of 98%. It is widely applicable, simple to use, convenient, and dependable.
Technical parameter
Model | FYD-20 | FYD-30 |
Pressure Range (Tons) | 0-20 | 0-30 |
Gauge Pressure (MPa) | 33.3(333kgf/cm*cm) | 0-30 (250kgf/cm*cm) |
Cylinder Stroke (mm) | 0-20 | 0-20 |
Pressure Stability | ≤1MPa/10min | ≤1MPa/10min |
Working Voltage | AC220V 2.3A | AC220V 50Hz |
Power | 180W 1400 rpm | 180W, can start under pressure |
Motion Mode | Dual-cylinder drive | Features rapid pre-tensioning and pressurization (in manual mode) |
Pressure Holding Mode | 0-6min | 0-6 min, adjustable |
Working Space (mm) | 105*105*150 | 155*100*180 |
Overall Dimensions (mm) | 260*360*450 | 430*200*455 |
Model | FYD-40 | FYD-60 |
Pressure Range (T) | 0-40 | 0-60 |
Gauge Pressure (MPa) | 0-40 (400kgf/cm*cm) | 0-40 (400kgf/cm*cm) |
Cylinder Stroke (mm) | 0-20 | 0-50 |
Pressure Stability | ≤1MPa/10min | ≤1MPa/10min |
Pressure Holding Mode | 0-10min adjustable | 0-6min adjustable |
Working Voltage | AC220V 50Hz | AC380V 270W 50Hz |
Power | 180W, can start under pressure | 270W, can start under pressure |
Working Space (mm) | 155*100*180 | 225*120*300 |
Weight (kg) | 50 | 105 |

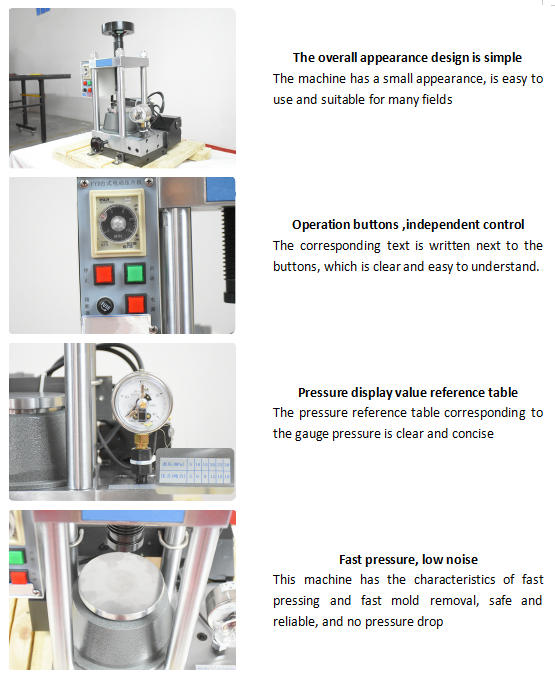

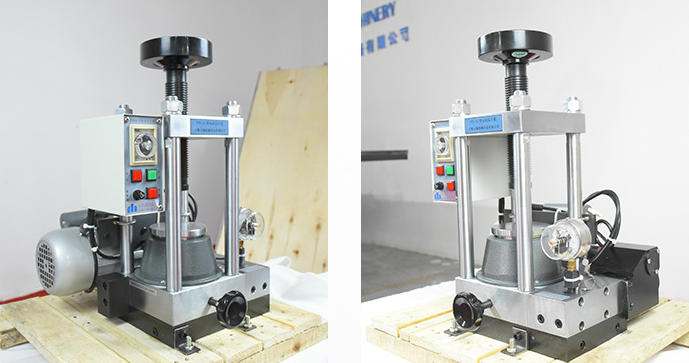

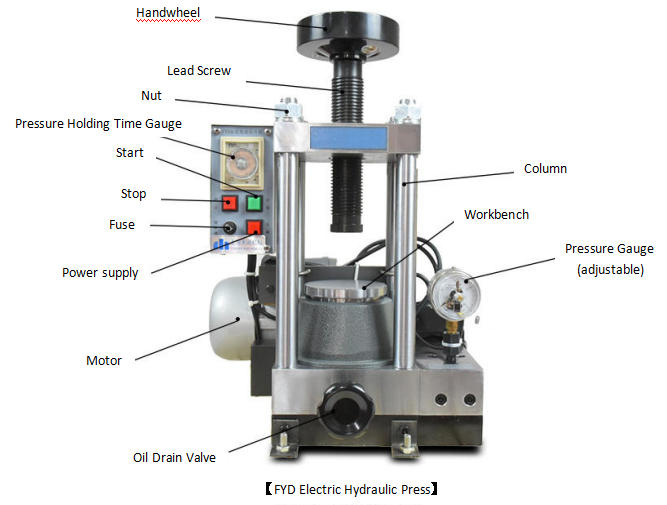

Details
