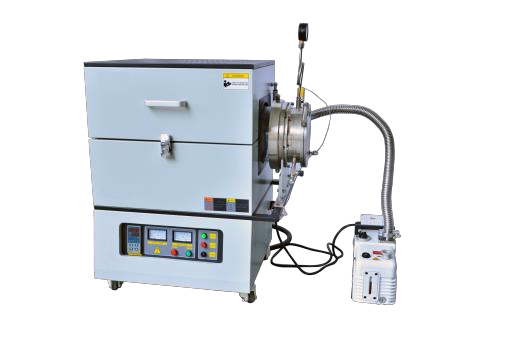

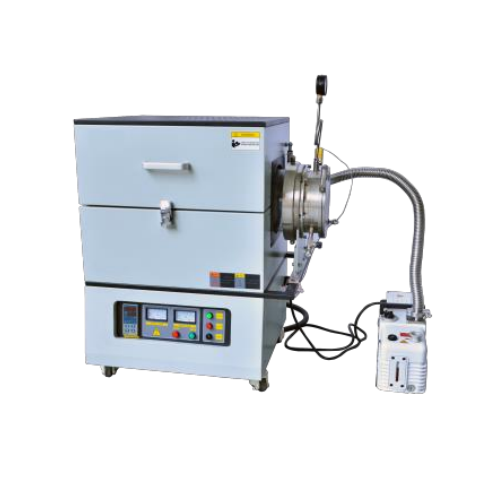

Laboratory 1100C High Purity Quartz Tube Annealing Furance for 3D Metal Printing
Introduction
The Quartz Tube Annealing Furnace utilizes high-purity quartz tube as the furnace tube and infrared lamp tubes as heating elements. It offers fast heating rates and a clean environment, making it a vacuum non-oxidizing annealing furnace specifically for 3D metal printing in the dental industry.
This versatile equipment can perform vacuum annealing on Co-Cr frameworks/crowns/bridges, TC4 (Ti-6Al-4V) frameworks/crowns/bridges, and can also be used for vacuum powder drying, effectively saving costs and floor space for customers.
Technical Specifications
Parameter | Specification |
Design Temperature (℃) | 1100 |
Working Temperature (℃) | 50 – 1000 |
Heating Zone Dimensions (mm) | φ200 x L300 mm |
Heating Element | Infrared lamp tubes |
Thermocouple | K-type |
Voltage | 220V / 1P |
Temperature Control Accuracy (℃) | ±1 |
Heating Rate | 0 – 300 ℃/min |
Maximum Vacuum Level | 10 Pa |
Heating Tube Material | High-purity quartz tube |
Furnace Structure | Dual-layer air-cooled structure; surface temperature remains below 50 ℃. |
Chamber Material | New high-purity lightweight alumina ceramic fiberboard with high-temperature resistance and excellent thermal insulation. |
Temperature Control Mode | Intelligent temperature controller featuring 30-segment programmable PID auto-tuning, automatic heating and cooling, requiring no manual supervision. |
Work Gas Support | Inert gases such as Argon (Ar), Nitrogen ($ ext{N}_2$), etc. |
Sealing Method | 304 stainless steel flanges offering easy assembly/disassembly, oxidation resistance, acid/alkali resistance, and dual-layer sealing to ensure airtightness. |
Temperature Control Safety | Integrated circuit with module control featuring deviation protection, over-temperature protection, thermocouple burnout protection, and over-current protection for stable and safe operation. |
Gas Control System | The gas inlet end can be configured with 1 or multiple inlets, each with a ball valve and connected to 1 vacuum gauge. The outlet end includes 1 exhaust port and 1 vacuum port, all equipped with ball valves. Equipped with 1 vacuum pump. |
Product Certification | Standard CE Certification; ISO 9001:2015 Quality Management System Certification. |
