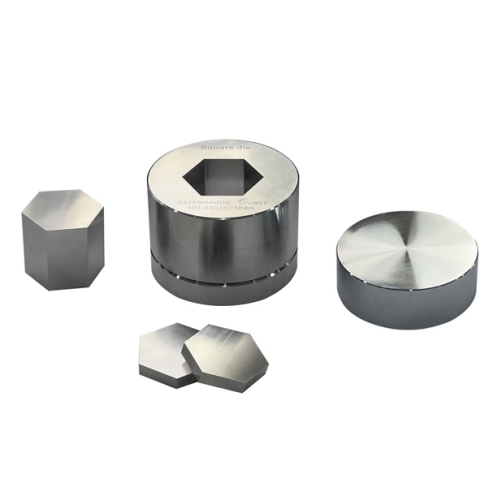

Lab Hydraulic Press Polygonal Die For Powder Pellet Pressing
Introduction
Polygonal molds can be made into various special shapes, such as triangles. Hexagon; Semi-circular. Die tablet size :3-20mm. Special shapes and sizes can be customized according to customer requirements.
Technical parameter
Instrument model | PMD |
Press the shape of the sample |  |
Mold material | Alloy tool steel: Cr12MoV |
Indenter hardness | HRC60-HRC62 |
Sample size | 5*5/10*10/15*15/20*20mm (M) |
Cavity depth | 40mm (N) |
Overall dimensions | Φ53*120mm (L*H) |
Mold weight | 1.4kg |

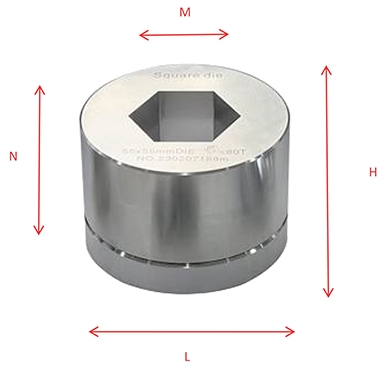

Schematic diagram of dimensions |  |
