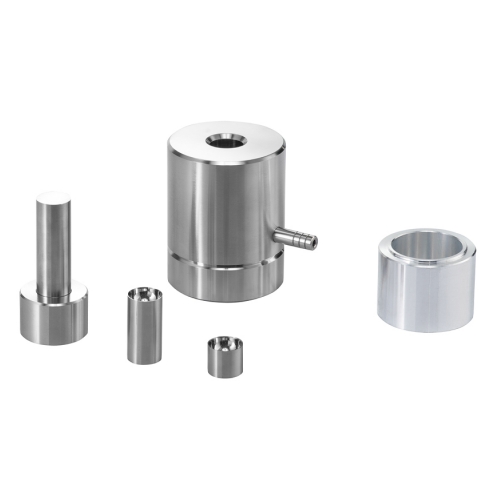

Dia5-40mm Lab Hydraulic Powder Press Die Set Spherical Mold
Introduction
Spherical molds are used in the pharmaceutical industry and for small-batch testing. The dimensions of the mold for tablet pressing are: diameter 3 to 20mm and height 1 to 20mm. Height of bulk powder :15-35mm; Special mold sizes can be customized according to customer requirements.
Technical parameter
Instrument model | PMQ-A |
Press the shape of the sample |  |
Mold material | Alloy tool steel: Cr12MoV |
Indenter hardness | HRC60-HRC62 |
Sample size | Φ5-40mm (M) |
Cavity depth | 30-40mm (N) |
Overall dimensions | Φ43-73*73mm (L*H) |
Mold weight | 1.5kg |

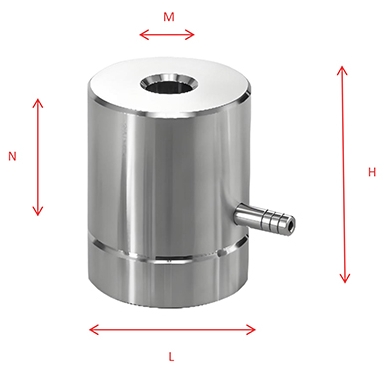

Schematic diagram of dimensions |  |
