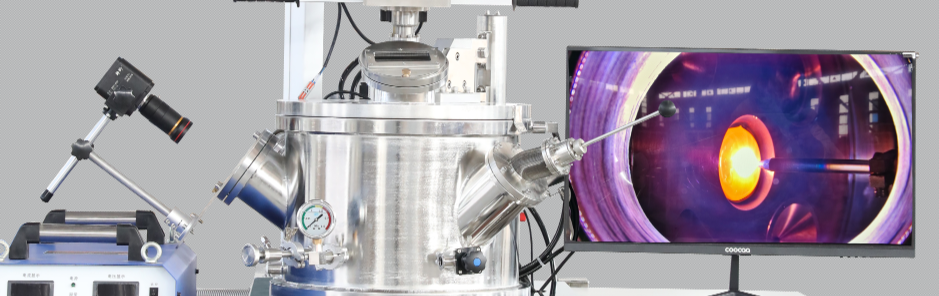

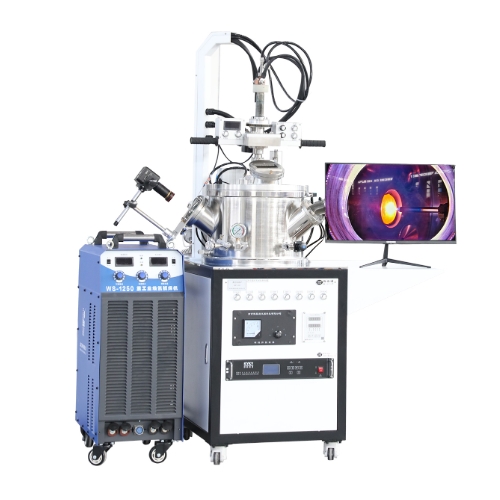

Model

VAF-400

Maximum Melting Temperature

3000℃

Power Supply Voltage

AC three-phase 380V

Input Power

67.2 KW (Welder 62 KW + Vacuum pump 1.2 KW + Chiller 4 KW)

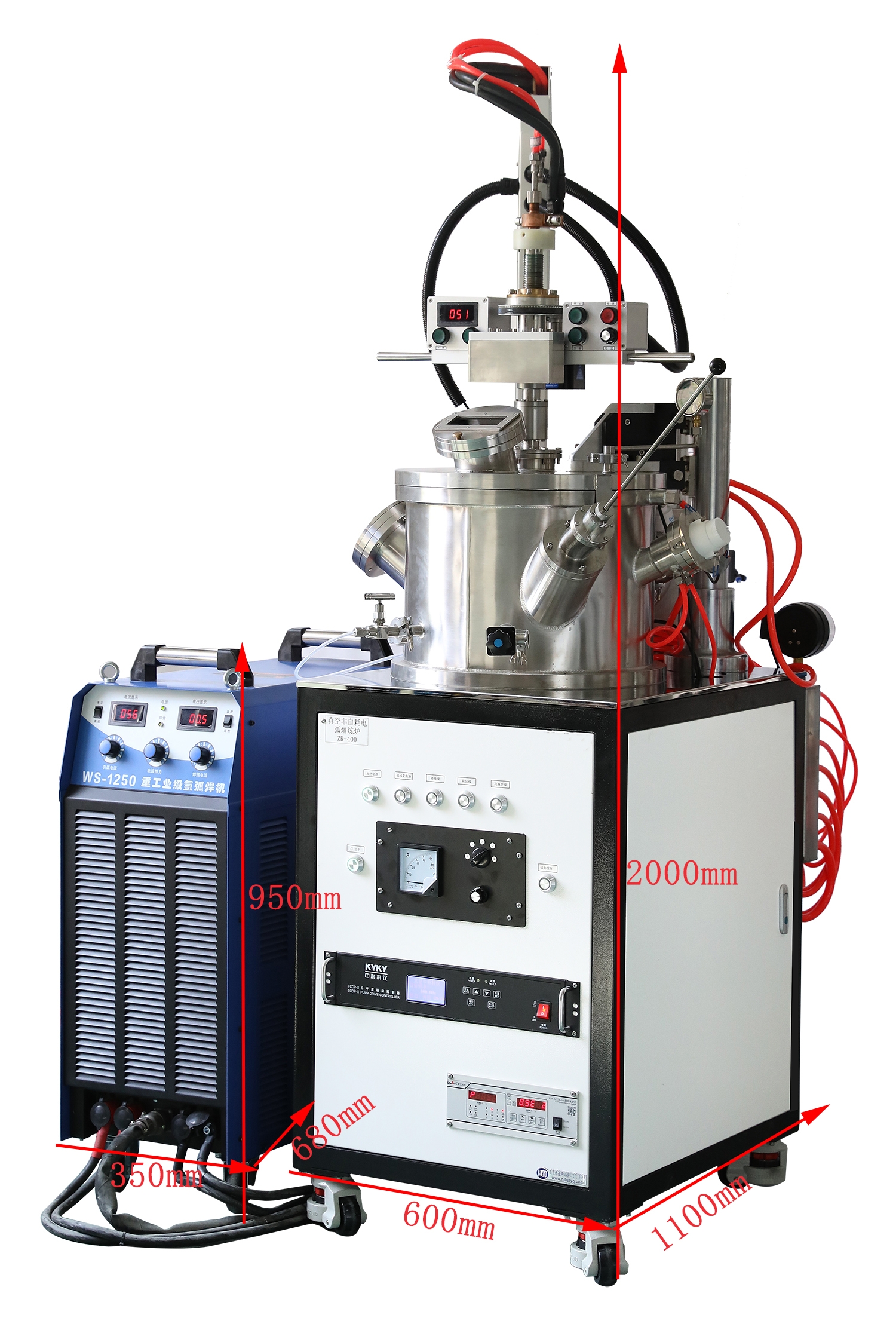

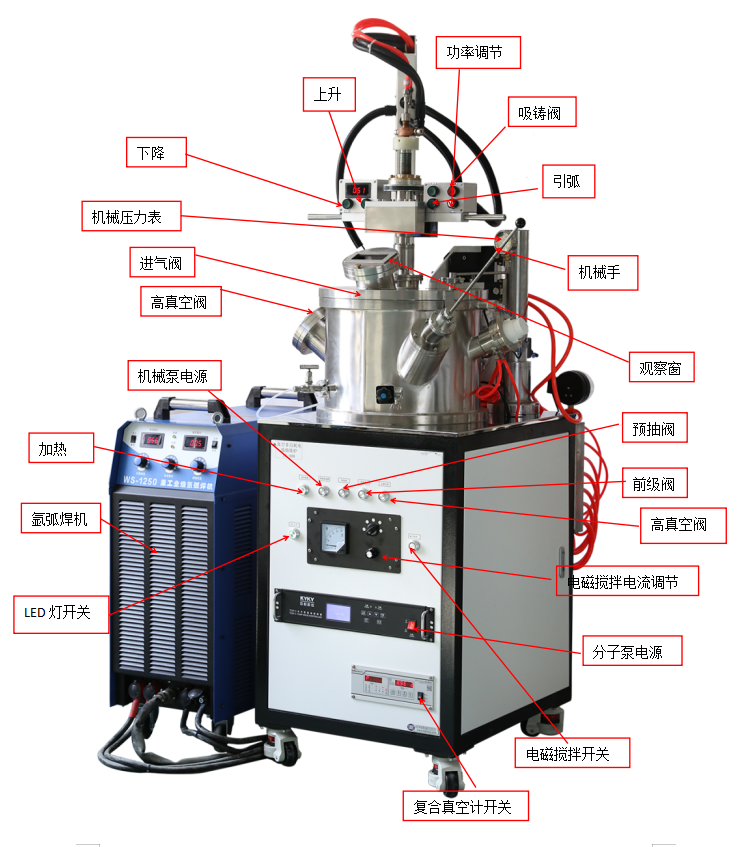

Dimensions & Component Description

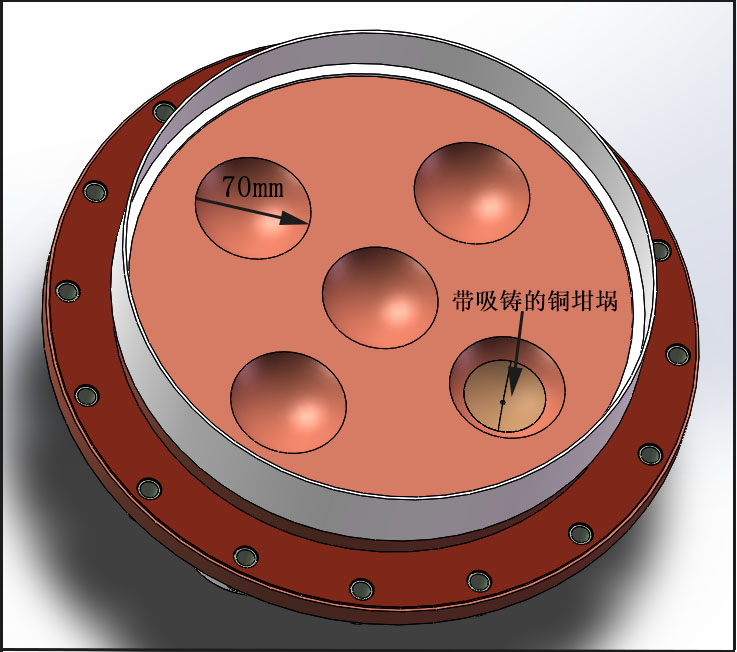

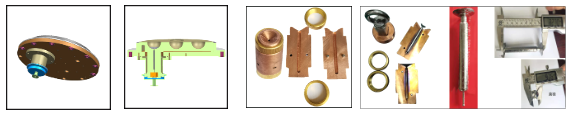

Copper Crucible

Water-cooled copper crucible with 5 stations (other numbers of stations can be customized). Each station is a hemispherical pot with a radius of 35 mm (other sizes can be customized). One of the stations is equipped with a suction casting device at the bottom.

Vacuum Suction Casting Device

Vacuum suction casting device can cast metal rods of φ5 mm × 65 mm length (other sizes can be customized). By evacuating the copper mold, the molten metal quickly enters the copper mold, resulting in metal rods with small shrinkage cavities.

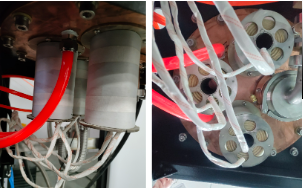

Electromagnetic Stirring

The equipment has an electromagnetic stirring function. The three surrounding stations all have electromagnetic stirring. The principle is that the coil generates a magnetic field when energized, and the molten metal moves within the magnetic field.

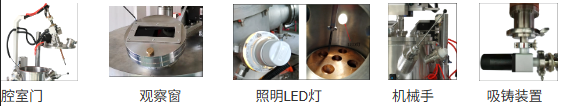

Main Features

1. Observation windows are installed on the front and left sides. LED lights are installed on both sides at the rear inside the chamber for easy observation of the arc melting process.
2. The vacuum chamber, copper crucible, and arc electrode are all water-cooled.
3. Up/down movement uses a steering wheel design, and the operating lever rotates smoothly.
4. To allow flipping of alloy ingots for multiple melts without breaking the protective atmosphere, the melting furnace uses a manipulator flip mechanism.
5. Small crucible size with multiple stations makes it easy to prepare several samples while avoiding cross-contamination between samples.
6. A suction casting device is installed at the bottom, capable of casting metal rods of φ5 mm.

Vacuum Chamber

Water-cooled vacuum chamber dimensions: Dia 400 × 320 mm. The vacuum chamber has an electrically operated lift door for easy sample loading and unloading. There is a φ80 mm observation window on the front and left sides for easy viewing of the arc melting process. A manipulator is installed on the right side for flipping alloy ingots.

Operating Current

1200 A

Arc Melting Cathode Device

Arc striking method: high-frequency arc striking. Manual lift.

Maximum Melting Temperature

3000℃

Chamber Vacuum Degree (with molecular pump unit) (Option 1)

< 5×10⁻⁴ Pa

Gas Types that Can Be Filled

Helium, Argon

Gas Required During Operation

High purity Ar (5N) or 5% H₂ + 95% Ar is required during metal melting.

Maximum Melting Temperature

3000℃ (capable of melting various refractory metals)

Pressure Rise Rate

<4 Pa/hour

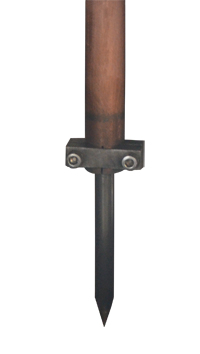

Tungsten Electrode

Tungsten electrode of φ10 mm (arc gun is water-cooled), non-consumable tungsten arc needle. The angle and distance between the electrode and the sample are adjustable (max. adjustment distance: 80 mm). Maximum temperature can reach 3000℃. The image below shows samples melted with this furnace.

Under-voltage Protection (Water Pressure)

Yes

Vacuum Chamber Water Cooling

Yes

HD Camera

HD HDMI output connects to a monitor. Supports photo capture, auto focus, automatic measurement (mouse operation, simple to use, high precision).
1) Dual-core ARM Cortex A7 dual-core @ Max 1.3GHz processor; SONY high-sensitivity, low-noise SENSOR – powerful performance, smooth preview.
2) New V5.0 measurement system. Ultra HD 4K resolution. Real-time auto focus.
3) Automatic measurement: supports automeasurement of circles, rings, rectangles, polygons, distance between parallel lines.
4) Annotation function: can add annotation text at positions requiring explanation on the screen.
5) Save graphic elements: can save current measurement graphics onto the image when taking a photo.
6) Auto edge detection: automatically identifies boundaries of lines, circles, arcs, etc., and selects the nearest edge as the measurement point, improving measurement accuracy.

Infrared Thermometer (Optional)

1. Imported from the USA. Features: fast response time, high precision.
2. 24hour realtime continuous online temperature measurement, safe, durable.
3. Laser aiming, good stability, especially suitable for measuring small hightemperature targets.
4. 10 ms response time and ±0.3% repeatability ensure fast and accurate temperature measurement.

Chiller (Optional)

3 HP

Unit Input Voltage

380V / 220V

Bellows

KF40×1000

Vacuum Gate Valve

KF40

Fore Vacuum Pump BSV30

Power

1.1 KW

Voltage

380V

Speed

1450 rpm

Inlet Port Diameter

KF40

Pumping Speed (fore pump)

8 L/s

Ultimate Pressure

5×10⁻¹ Pa

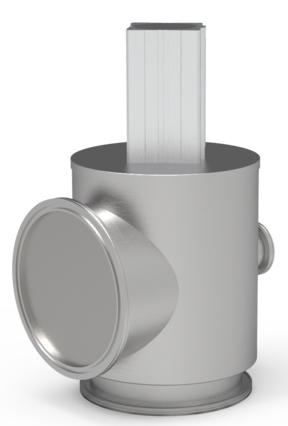

Large High Vacuum Pneumatic Gate Valve

Port Diameter

DN160

Operating Range

1×10⁻³ Pa ～ 1.2×10⁵ Pa

Valve Body & Seat Leak Rate

<1.3×10⁻⁵ Pa·L·s⁻¹

Compound Vacuum Gauge

Model

ZDF

Power Supply

220V, 50Hz, 45W

Control Accuracy

±1%

Measuring Range

10⁻⁵ Pa ～ 10⁵ Pa

Molecular Pump Unit

Molecular Pump Model

FF-160/620

Input Voltage

220V

Molecular Pump Inlet Flange

DN160

Pumping Speed (for air)

600 L/s

Rated Speed

27000 rpm

Ultimate Pressure (Molecular Pump)

6×10⁻⁷ Pa

Cooling Method

Water cooling

Cooling Water Pressure (MPa)

0.1–0.2

Cooling Water Temperature

<25℃

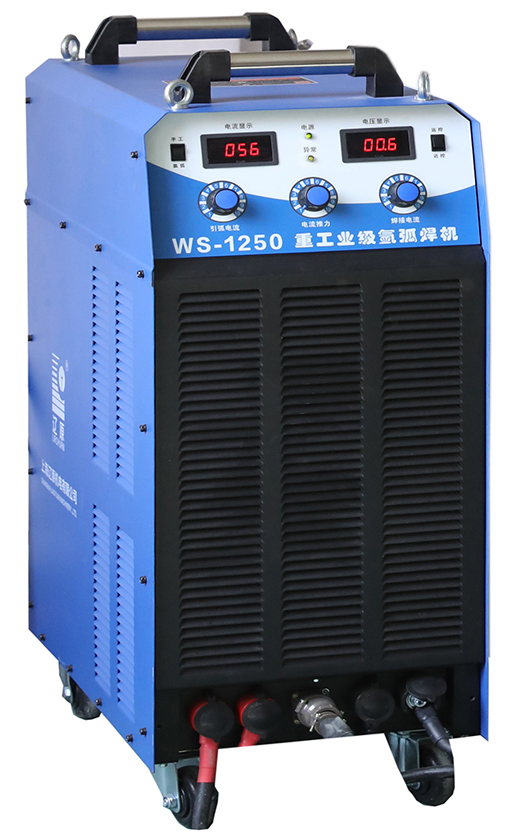

Model

WS-1250

Power

62 KW

Input Power Supply

Three-phase 380V

Noload Voltage

85 V

Welding Current Range

55–1250 A

Rated Duty Cycle

60%

Advantages

Stable current, equipped with low water pressure alarm

Power Supply

Three-phase 380V

Maximum Head

38 m

Total Input Power

3.2 KW

Tank Capacity

60 L

Cooling Capacity

7220 Kcal/h

Water Inlet/Outlet Port

Rp 1/2"

Overall Dimensions

520 × 1150 × 1145 mm
