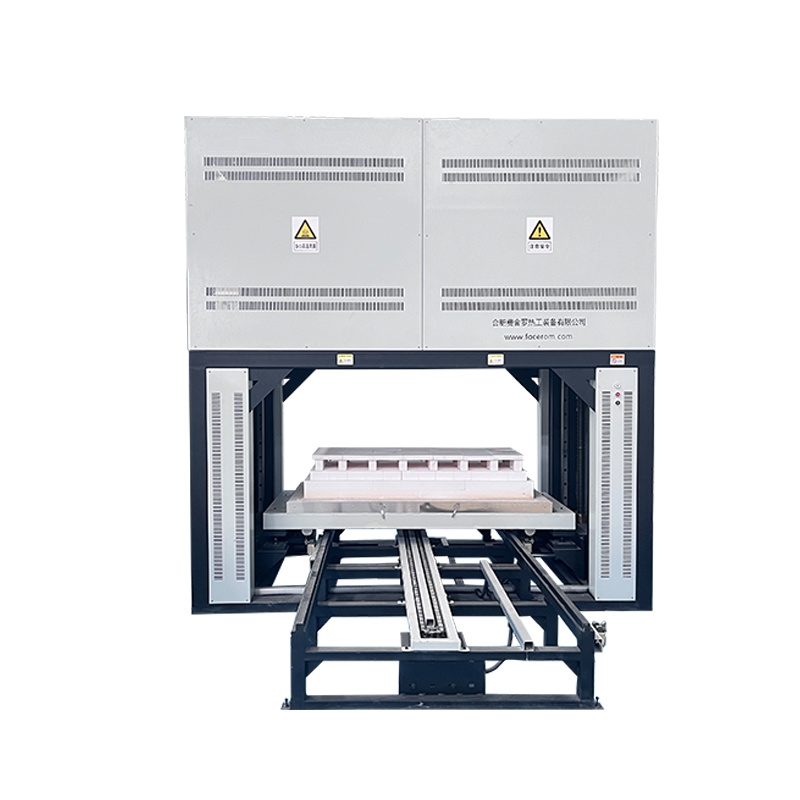

Batch Type High Temperature Bell-Type Zirconia Sintering Furnace
Introduction
It is a batch-type high-temperature sintering furnace with a screw lifting system for the firing platform. It is suitable for batch production sintering processes of ceramic products such as zirconia, alumina, and dielectric ceramics.
Features
Working temperatures: 1350℃ and 1550℃
Optional upgrades: Exhaust gas purification furnace, industrial control computer
Specification
Equipment Model | Chamber Size (L×W×H) | Volume | Thermocouple | Heating Element | Voltage | Power |
FZL-72/16 | 400×400×450 mm | 72 L | Type B | Molybdenum Disilicide Heating Elements | 380V | 40 kW |
FZL-200/16 | 600×600×550 mm | 200 L | Type B | Molybdenum Disilicide Heating Elements | 380V | 60 kW |
FZL-320/16 | 1200×480×550 mm | 320 L | Type B | Molybdenum Disilicide Heating Elements | 380V | 100 kW |
FZL-430/16 | 1200×600×600 mm | 430 L | Type B | Molybdenum Disilicide Heating Elements | 380V | 110 kW |
