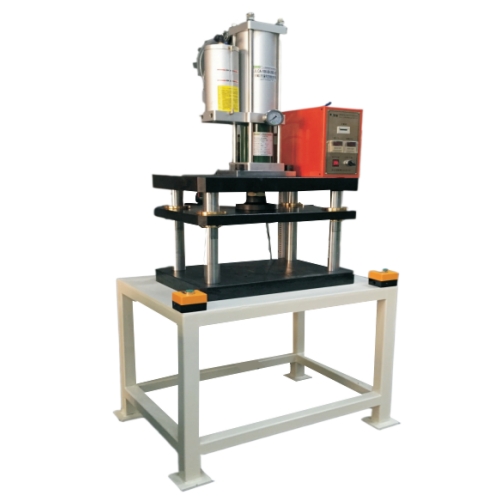

3T-20T Pneumatic Booster Press Machine For Electronics Stamping
Introduction
Pneumatic press, powered by compressed air, suitable for press fitting of electronics,instruments, instruments cameras, jewelry, hardware, cutting, punching, blanking, forming, bending, thinning, stripping, coiling, Riveting and other processes; suitable for processing of non-ferrous metals.
Features
1. Compressed air is used as the power source for easy operation.
2. There is no noise generated when the hydraulic system is in standby, and there is no environmental pollution,which can save power consumption and reduce production costs.
3. The closing height can be adjusted according to the size of the product or mold.
4. The cylinder stroke is adjustable, the special stroke can be customized, and the maximum opening height can be customized.
5. The output adjustment is easy. lt is simple and convenient to adjust the pressure and pressure to achieve the required pressure.
6. Safe design, comfortable operation and humanized consideration, suitable for long-term operation.
7. lf you need to quickly drop during operation, you can choose a quick exhaust valve.
Technical parameter
| Model | BSW02-3T | BSW02-5T | BSW02-10T | BSW02-20T | |
Nominal pressure(T) | 3 | 5 | 10 | 20 | |
Maximum working pressure of liquid(Mpa) | 0.7 | 0.7 | 0.7 | 0.7 | |
Maximum opening distance mm | 300 | 300 | 300 | 400 | |
Fast stroke (mm) | 150 | 150 | 150 | 150 | |
Turbo charged stroke | 20 | 20 | 20 | 20 | |
Workbench size | Left and right mm | 400 | 400 | 500 | 500 |
Before and after mm | 300 | 300 | 400 | 400 | |
Height of machine mm | 1600 | 1650 | 1750 | 1800 | |
