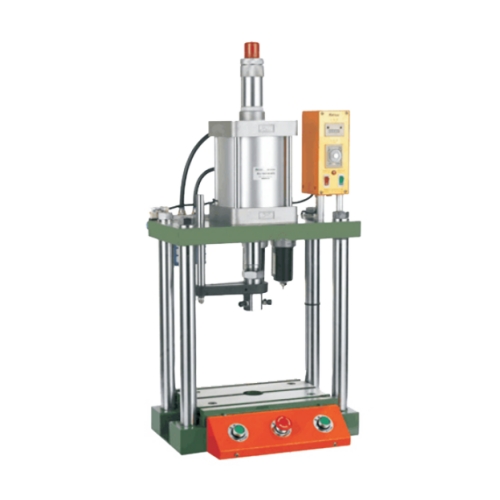

0.1-2.2T Laboratory Desktop Pneumatic Press For Thin Metal Plate Bending
Introduction
Pneumatic press, powered by compressed air, suitable for press fitting of electronics,instruments, instruments cameras, jewelry, hardware, cutting, punching, blanking, forming, bending, thinning, stripping, coiling, Riveting and other processes; suitable for processing of non-ferrous metals.
Technical parameter
Model | BSW01-100kg | BSW01-300kg | BSW01-500kg | BSW01-800kg | BSW01-1500kg | BSW01-2200kg | |
Nominal pressure(T) | 0.1 | 0.3 | 0.5 | 0.8 | 1.5 | 2.2 | |
Maximum working pressure of liquid(Mpa) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |
Maximum opening distance mm | 250 | 250 | 250 | 300 | 300 | 300 | |
Maximum stroke mm | 100 | 100 | 100 | 100 | 100 | 100 | |
Workbench size | Left and right mm | 300 | 300 | 300 | 350 | 350 | 350 |
Before and after mm | 200 | 200 | 200 | 250 | 250 | 250 | |
Height of machine mm | 800 | 800 | 850 | 1000 | 1050 | 1100 | |
