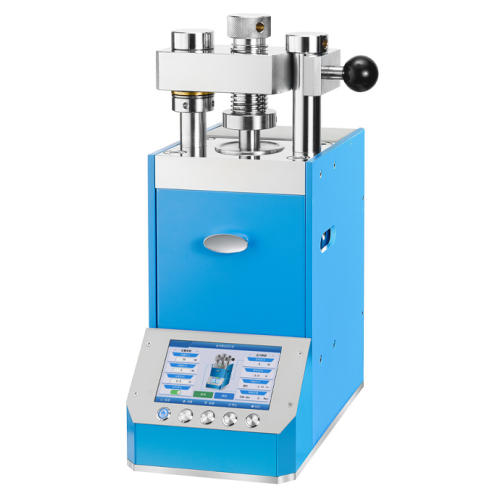

20T-60T Laboratory Compact Hot Isostatic Pressing Machine
Technical parameters
Model | PP-20R | PP-40R | PP-60R |
Pressure range | 0-20T | 0-40T | 0-60T |
Pressurization process | The 20-segment program pressurization can display the pressure spectrum | ||
Holding pressure time | Each section lasts up to 32,768 seconds and can also work for a long time without timing | ||
Pressure conversion | The pressure that the sample can withstand is automatically converted based on its shape and size | ||
Pressure display accuracy | 0.1 ton | ||
Liquid crystal display | 7-inch (IPS high-definition) touch screen | ||
Metal keys | Silver-plated contacts, with a service life of over 100,000 times | ||
Equipment protection | The cantilever structure is more convenient to operate | ||
Pressure safety | The equipment is equipped with automatic pressure overload protection | ||
Limit switch | The cylinder automatically depressurizes when it reaches the limit height | ||
Cylinder stroke | 50(T) | 50(T) | 50(T) |
Cavity temperature | 0-300℃ | 0-300℃ | 0-300℃ |
Cavity pressure | 300MPa | 300MPa | 300MPa |
Cavity size | Φ30*150 mm | Φ40*150 mm | Φ50*150 mm |
Equipment power supply | 1600W (220V/110V can be customized) | 2000W (220V/110V can be customized) | 2500W (220V/110V can be customized) |
Size | 280*460*660mm (L*W*H) | 300*500*680mm (L*W*H) | 320*500*680mm (L*W*H) |
Weight | 180kg | 240kg | 280kg |

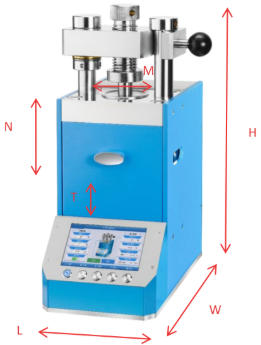

Schematic diagram of dimensions |  | ||
