Maximum Temperature

1700°C

Supply Voltage AC

380V

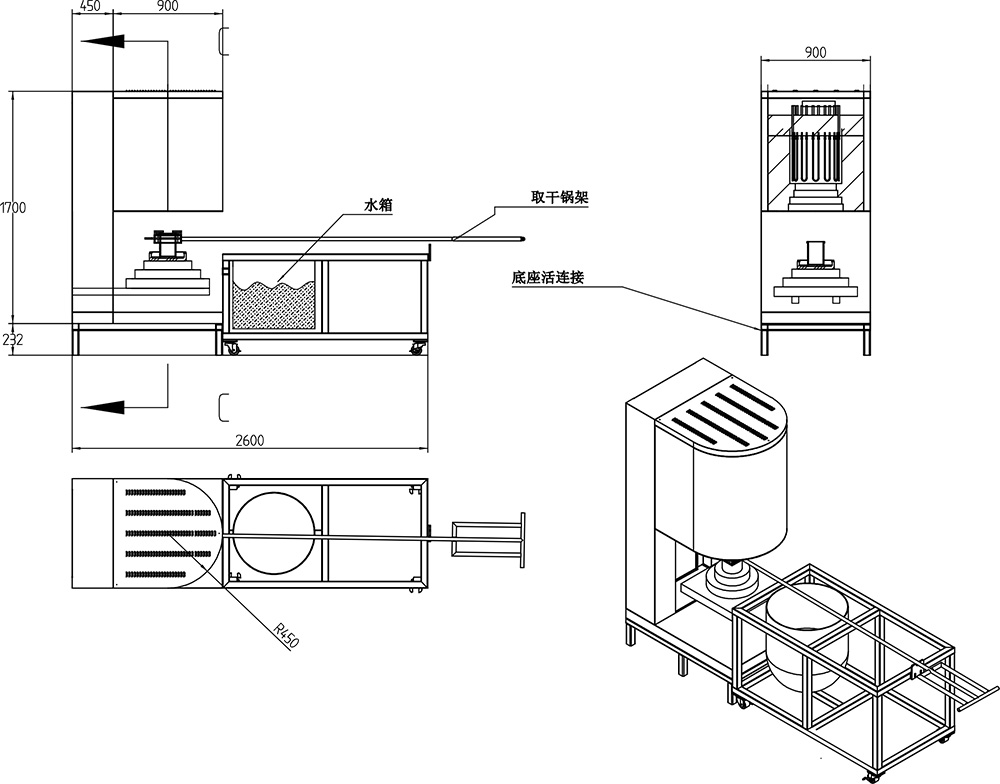

Furnace Chamber Dimensions (mm)

Diameter 350 × Height 350

Temperature Control Accuracy

±1°C

Furnace Temperature Uniformity

±1°C (depending on heating chamber size)

Temperature Sensor & Range

Platinum-Rhodium (Type B thermocouple), range 0–1820°C

Heating Rate

Adjustable: maximum 15°C/min, minimum 1°C/h

Heating Elements

U-shaped 1800°C molybdenum disilicide (MoSi₂) rods

Heating Element Installation Position & Method

Vertically installed around the furnace chamber

Furnace Body

CNC machined, polished, pickled, phosphated, powder-coated and baked at high temperature. Two-tone color scheme – aesthetically pleasing. Features anti-oxidation, acid/alkali resistance, corrosion resistance, high temperature resistance, and easy cleaning.

Furnace Structure

Air-cooled double-layer structure with effective airflow guide plates to ensure full cooling circulation. Discharges hot air after cooling the heating element conductors – prevents high-temperature oxidation of conductors and ensures a good working environment.

Furnace Outer Shell Temperature

<45°C under continuous long-term operation

Insulation Material

Four-layer insulation: alumina fiber wool, alumina fiber board, polycrystalline alumina fiber board, vacuum-formed high-purity alumina fiber lightweight board – energy saving >80% compared to traditional furnaces.

Protections

Integrated modular control unit with high accuracy. Dual-loop control and dual-loop protection, including protections against overshoot, over-regulation, under-regulation, broken thermocouple, phase loss, overvoltage, overcurrent, overtemperature, current feedback, soft start, etc.

Control Method

Closed-loop SCR (thyristor) module triggering – phase-shift or zero-crossing control. Continuous adjustment of output voltage, current or power with constant voltage, constant current or constant power characteristics. Inner current loop and outer voltage loop – limits output current within rated range under sudden load or overcurrent conditions, ensuring stable operation and protecting heating elements from excessive current/voltage surges, achieving safe and reliable control and high accuracy.

Displayed Parameters

Temperature, segment number, segment time, remaining time, output power percentage, voltage, current, etc.

Pushbuttons

Pushbutton life >100,000 cycles, with LED indicators.

Temperature Profile Setting

Touch screen for temperature curve setting

Cooperation Between Furnace Opening and Loading Table Refractory

Step cross sealing is used. Both the refractory material of the furnace opening and the loading table have angled surfaces. The opening angle of the loading table is large and gradually decreases as the loading table closes.

Loading Table Material

Alumina ceramic fiber material; moves up and down for loading/unloading

Loading Lifting Speed

5–30 s

Loading Capacity

50 kg

Lifting Mechanism

Electric mechanical

Cooling Structure

Double-layer furnace shell, air-cooled

Warranty & Coverage

One-year free warranty for the furnace. Heating elements are not covered.

Standard Accessories

Two heating elements, two sets of electrode rods, one instruction manual, one certificate of conformity, one pair of crucible tongs, one pair of high-temperature gloves
