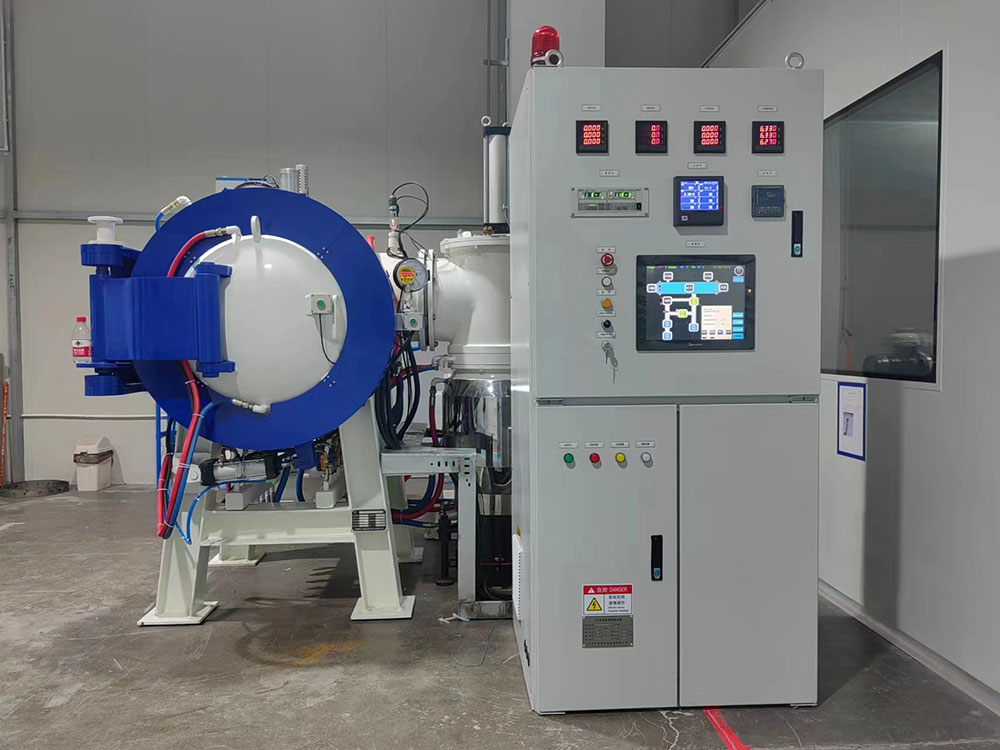

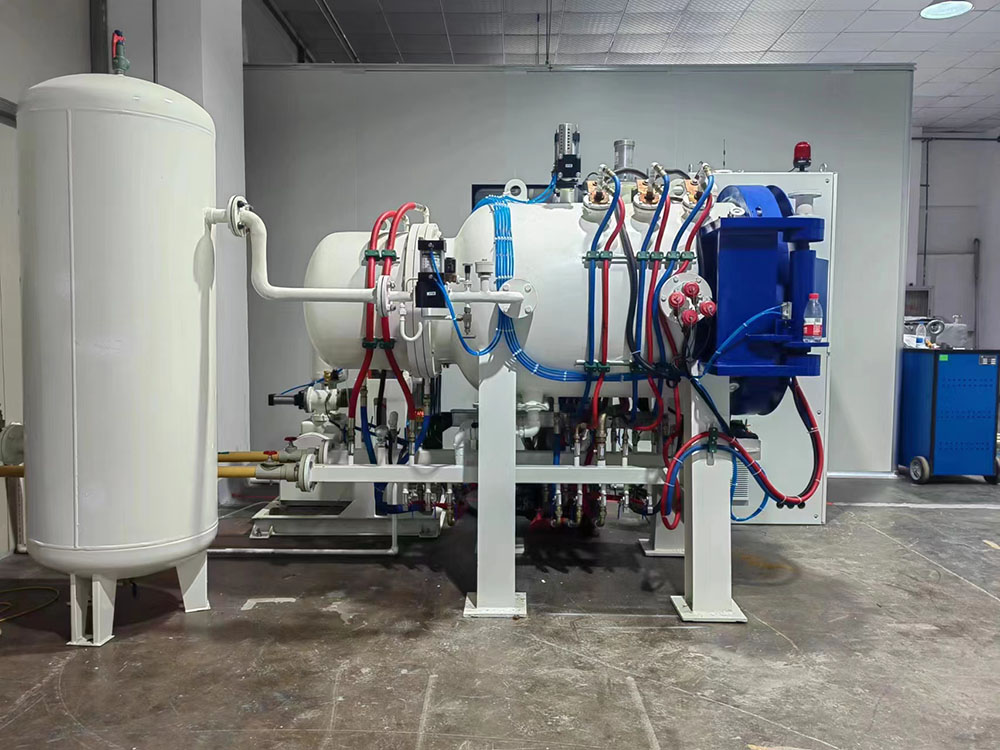

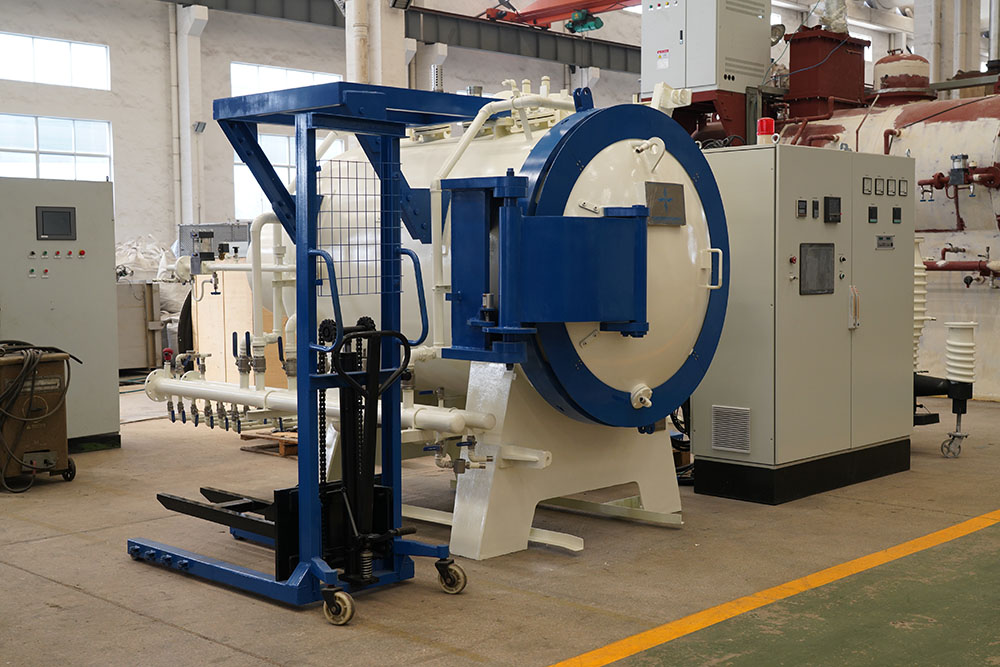

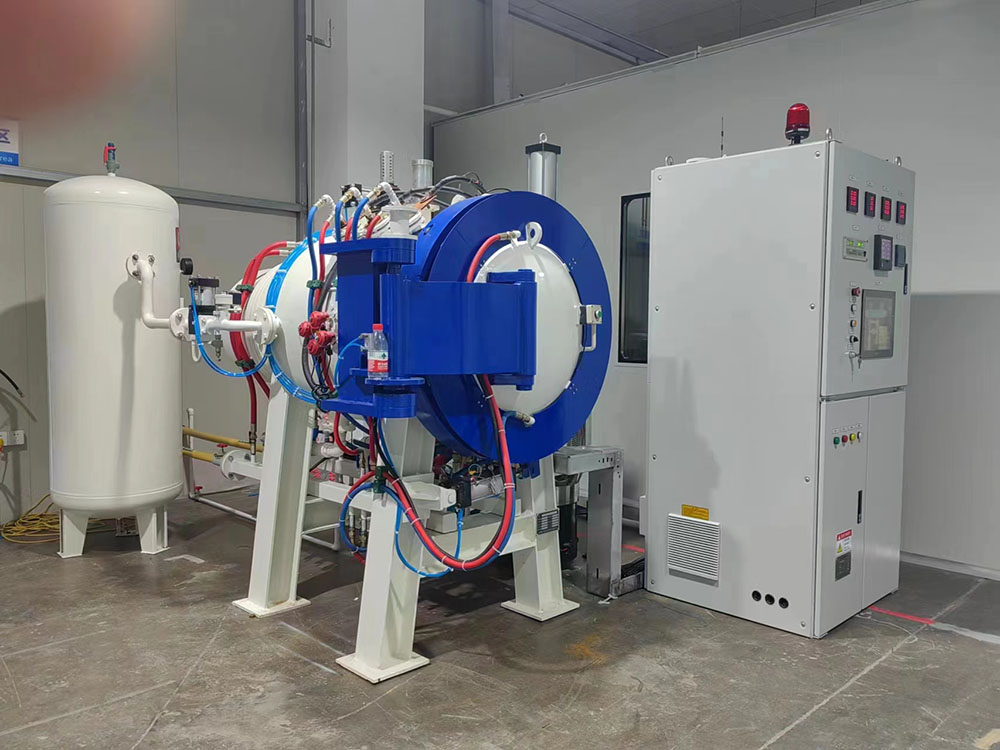

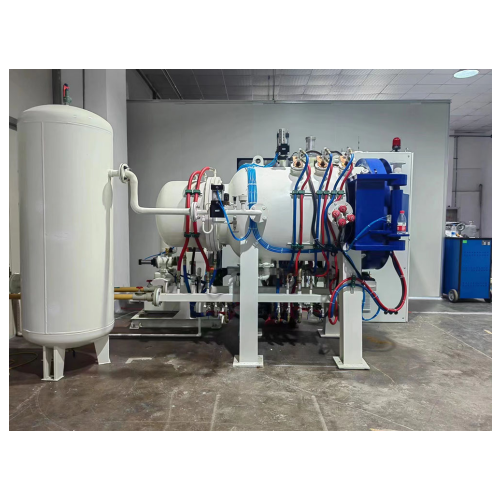

Single-Chamber Vacuum Annealing Furnace For 3D Printing Materials Heat Treatment
Product Overview
Mainly used for bright annealing of high alloys, magnetic materials, stainless steel, titanium alloys, non-ferrous metals and other materials.
Also applied for vacuum annealing of structural steel, tool steel, high-speed steel, stainless steel, titanium alloys, 3D printing materials, high-temperature refractory metals, soft magnetic materials and other non-ferrous metals, realizing vacuum bright annealing, stress relief annealing, etc.
Product Features
Heating elements: high-temperature nickel-chromium alloy, high-purity graphite or molybdenum
Insulation material: composite metal shield insulation structure (heat-resistant steel + stainless steel), rigid graphite felt, composite metal shield insulation structure (molybdenum + stainless steel)
Cooling medium: high-purity nitrogen or high-purity argon
Compact structure, high degree of automation, environmentally friendly and energy-saving
Safe and stable operation; the system supports fault self-diagnosis, audible and visual alarms, as well as corresponding interlock protection functions
Optional configurations: high vacuum system and customized effective zone dimensions as specified by customers
Specification
Model | Effective Zone (mm) | Loading Capacity (kg) | Temperature Uniformity (°C) | Pressure Rise Rate (Pa/h) | Max. Temperature (°C) | Heating Power (kW) | Ultimate Vacuum Degree (Pa) | Gas Quenching Pressure (bar) |
ZTH-40 | 450×300×300 | 100 | ±5 | 0.5 | 1320 | 40 | 5×10⁻³ or 4×10⁻¹ | 2 |
ZTH-80 | 600×400×400 | 200 | ±5 | 0.5 | 1320 | 80 | 5×10⁻³ or 4×10⁻¹ | 2 |
ZTH-120 | 750×500×500 | 300 | ±5 | 0.5 | 1320 | 120 | 5×10⁻³ or 4×10⁻¹ | 2 |
ZTH-150 | 900×600×600 | 500 | ±5 | 0.5 | 1320 | 150 | 5×10⁻³ or 4×10⁻¹ | 2 |
ZTH-200 | 1200×600×600 | 800 | ±5 | 0.5 | 1320 | 200 | 5×10⁻³ or 4×10⁻¹ | 2 |
ZTH-300 | 1500×800×800 | 1500 | ±5 | 0.5 | 1320 | 300 | 5×10⁻³ or 4×10⁻¹ | 2 |

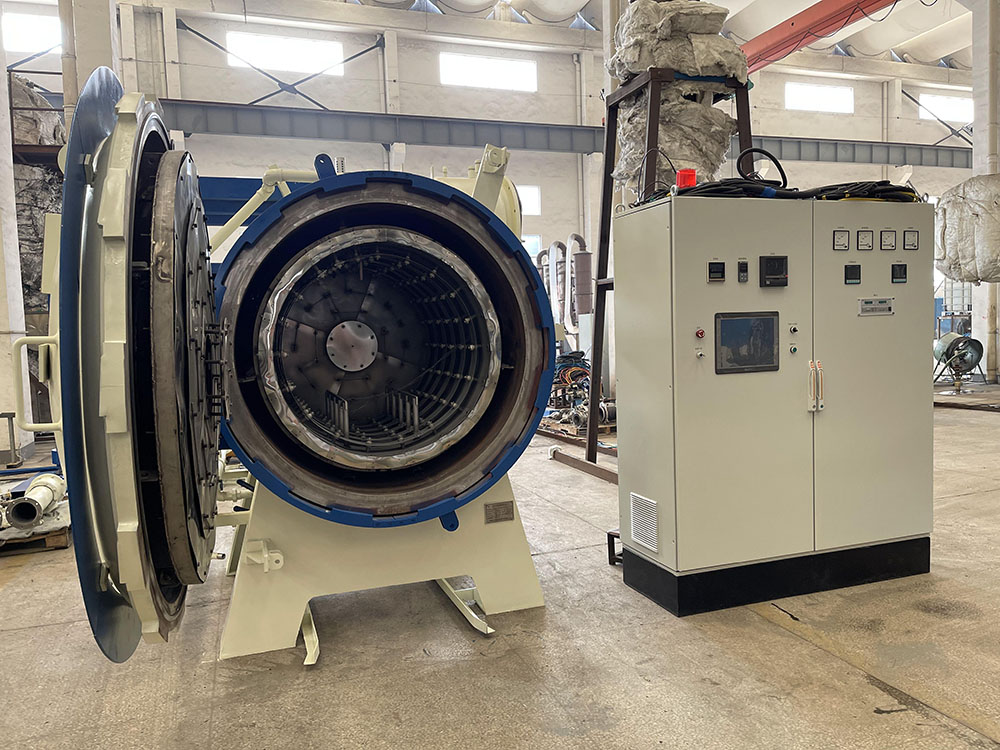

(All-Metal Hot Zone Furnace)

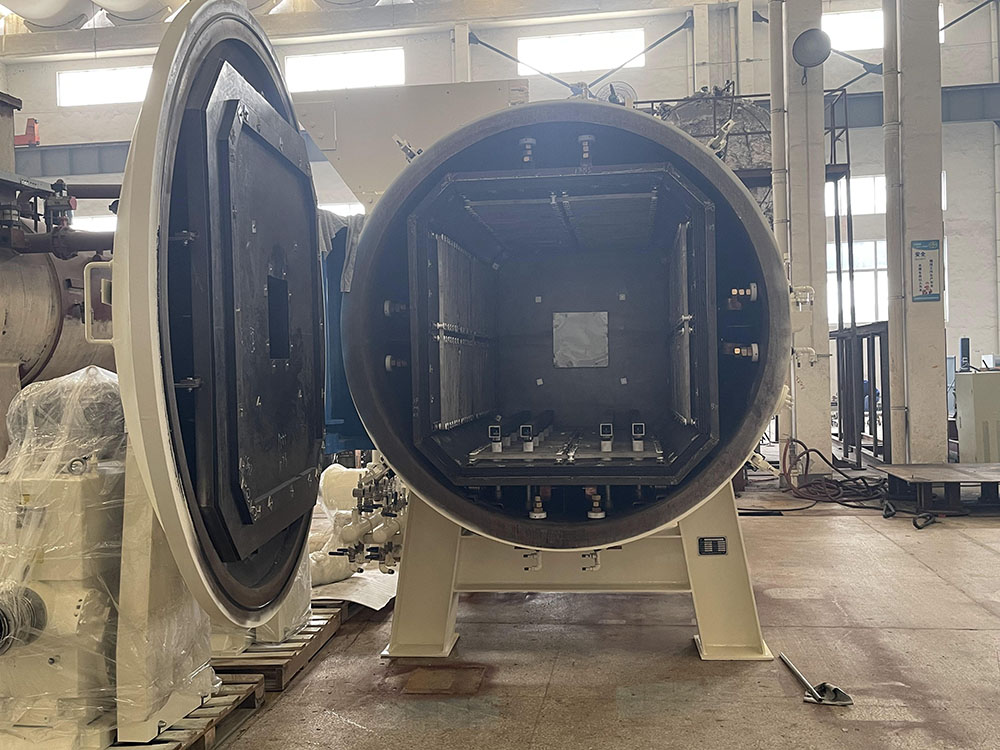

(Graphite Hot Zone Furnace)
