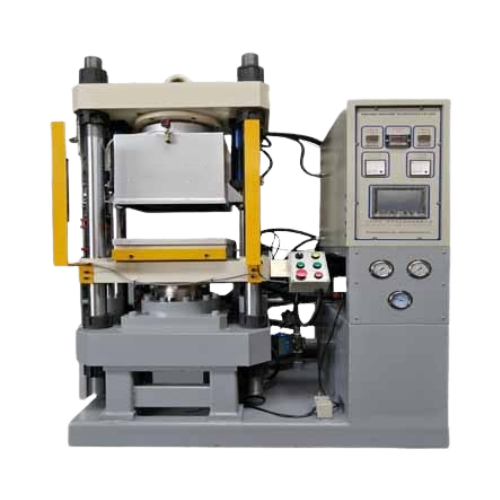

Polyether Ether Ketone PEEK High Temperature 500C Hot Press
Introduction
The 500°C high-temperature hot press is specifically developed and designed for the high-temperature hot pressing and molding of Polyether Ether Ketone (PEEK). This 500°C hot press is suitable for the development and testing of hot pressing molding processes for various composite materials and new materials in the 300-500°C range, such as fiber-reinforced materials including PA, PPS, PI, and PEEK.
Applications
This high-temperature hot press is suitable for the development and testing of hot pressing molding processes for various composite materials and new materials in the 300-500°C range, such as fiber-reinforced materials including PA, PPS, PI, and PEEK.
The high-temperature hot press utilizes military-grade high-temperature resistant materials for the hot plates, which are precision-ground to ensure good creep resistance under prolonged exposure to 600-800°C high temperatures. Heating is achieved using imported alloy electric heating tubes for rapid temperature increase.
Features
A. Indirect vacuum evacuation during the hot pressing process does not affect the resin content.
B. Under vacuum conditions, the temperature during hot pressing curing is more uniform, and heat loss is reduced.
C. The vacuum applied during the hot pressing curing process can reduce or eliminate surface bubbles and pinholes in the product.
D. Suitable for various slow pressing and multi-stage pressure control processes.
Hydraulic and Electrical Control Systems of the PEEK High-Temperature Hot Press
A. The electrical control system employs an industrial PLC and HMI touch-screen interface.
B. Displacement can be controlled using electronic scales and proximity switches.
C. The hydraulic system is available in both dual-circuit control and single-circuit proportional valve control configurations.
D. Other features: Customization is available according to the customer's specific process requirements.
Technical Specifications of the PEEK High-Temperature Hot Press
Equipment Model | Unit | H-300 | H-450 | H-500 | H-600 | H-700 |
Working Platen Size | MM | 300*300 | 450*450 | 500*500 | 600*600 | 700*700 |
Temperature Range | ℃ | 300-500 | 300-500 | 300-500 | 300-500 | 300-500 |
Control System | - | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI |
Pressure Range | Mpa | 0.5-5.0 | 0.5-5.0 | 0.5-6.0 | 0.5-6.0 | 0.5-6.0 |
Pressure Control | - | Multi-stage Slow Pressing | Multi-stage Slow Pressing | Multi-stage Slow Pressing | Multi-stage Slow Pressing | Multi-stage Slow Pressing |
We can customize PEEK high-temperature hot presses according to customer-specific technical requirements.
