Metal/Ceramic Injection Molding 2100℃ Vacuum Graphite Debinding & Sintering Furnace
Equipment Overview

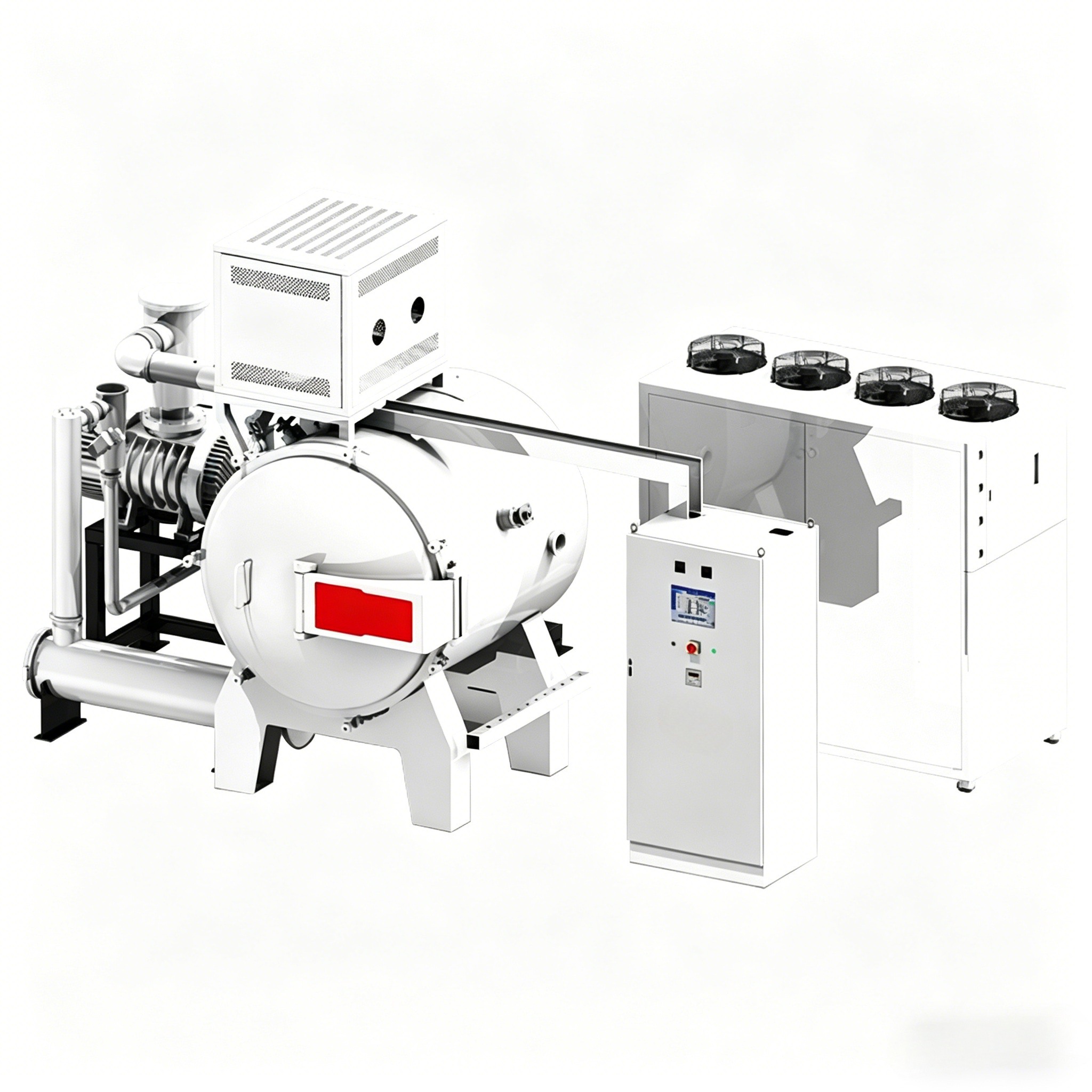

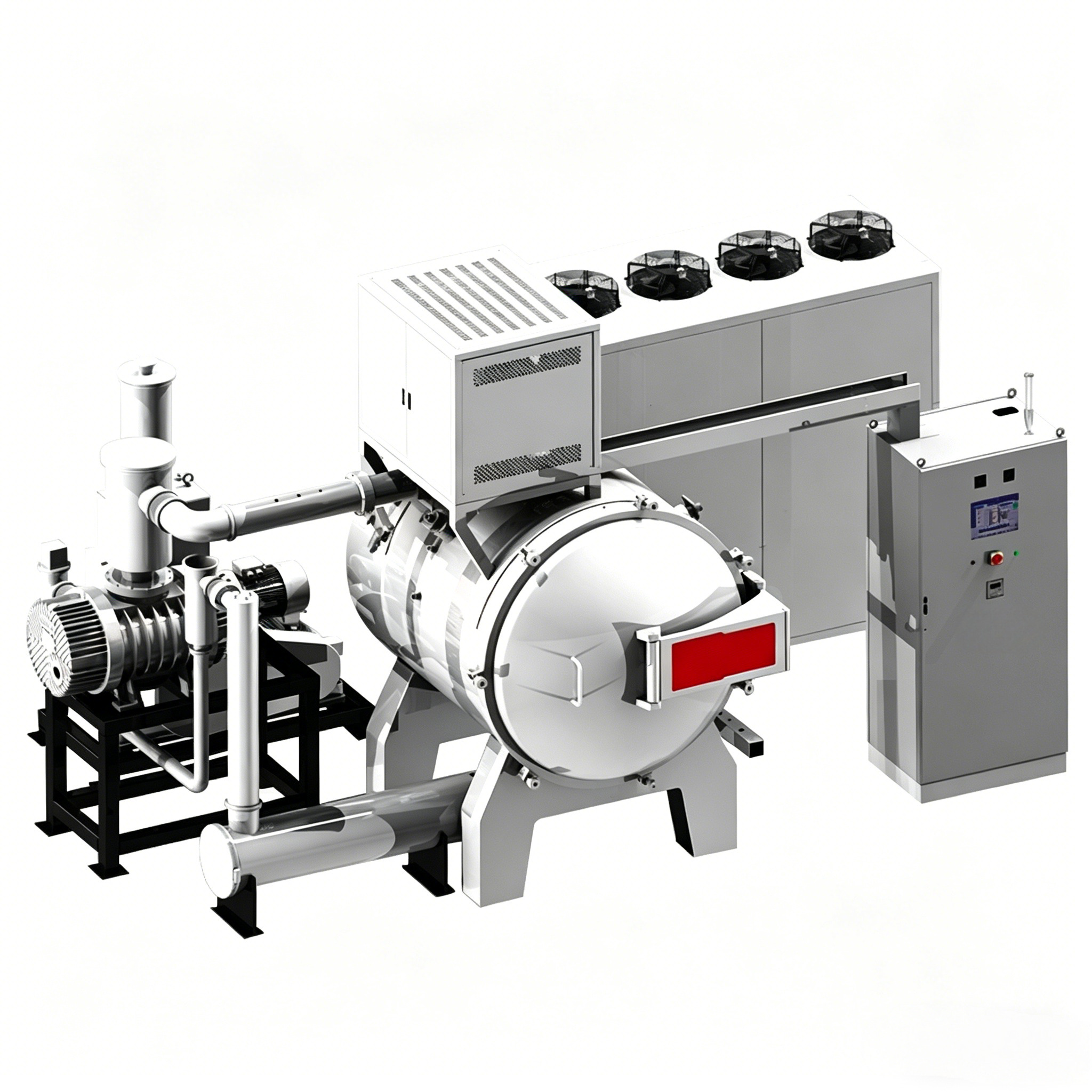

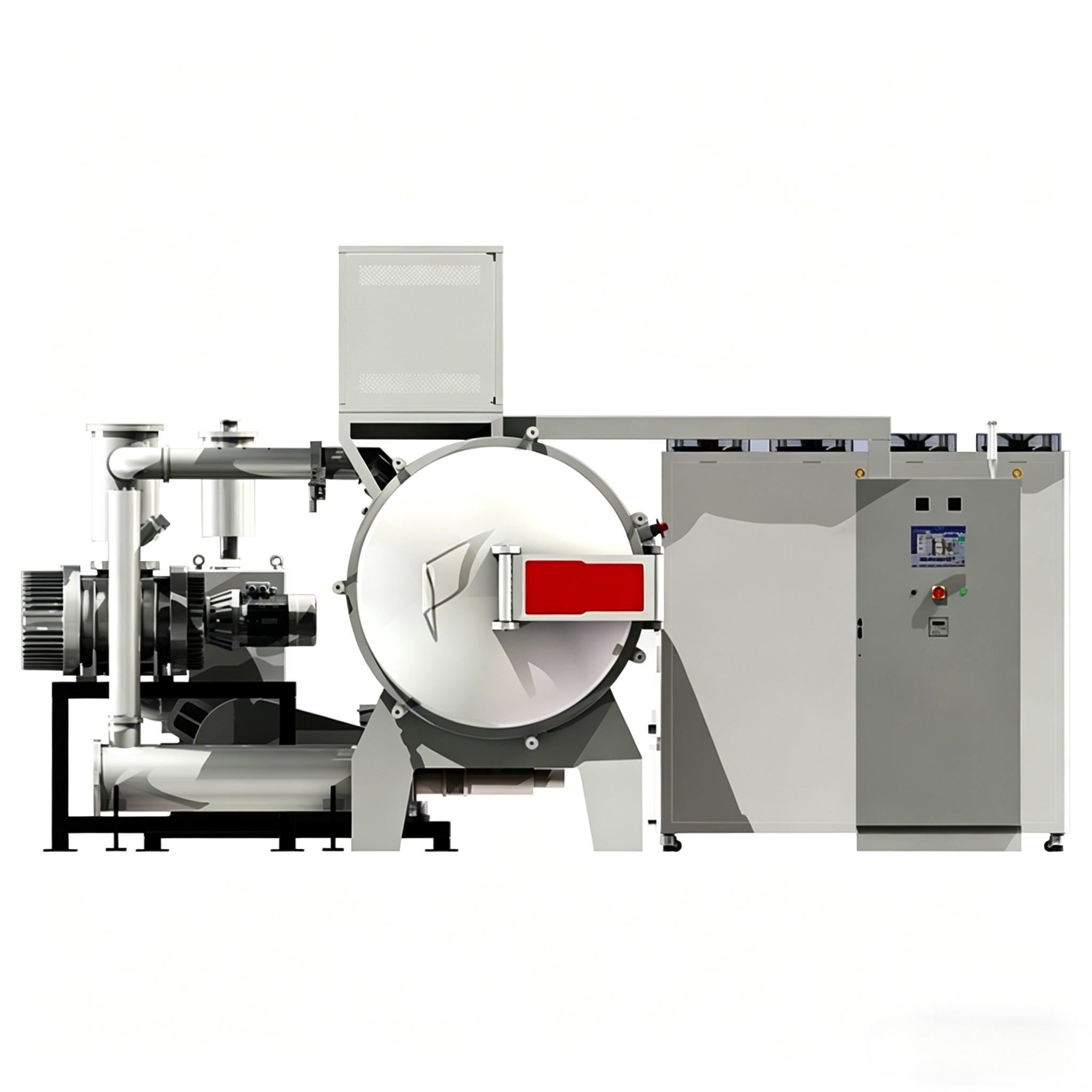

The vacuum graphite debinding & sintering furnace is a high-end heat treatment equipment specially designed for Metal Injection Molding (MIM), Ceramic Injection Molding (CIM) and other processes. It integrates debinding (binder removal) and sintering in one, suitable for the preparation of high-precision and high-performance materials.
Product Features
Integrated debinding & sintering: Eliminates contamination and deformation caused by transferring parts after debinding in traditional processes, reducing production steps.
Controllable high vacuum/atmosphere environment: Vacuum environment prevents oxidation and improves material purity; introducing gas enhances sintering strength.
Graphite rod ring heating: Ensures uniform heating to reduce product deformation, with multi-zone temperature control for consistent temperature distribution.
Automated operation and maintenance: PLC system with integrated parameter storage and touch screen operation minimizes manual intervention.
Technical Specifications
Effective Volume | Max. Temperature | Heating Element | Vacuum Degree | Atmosphere |
12–324 L (optional) | 2100℃ | Graphite | 6.7×10⁻² Pa | N₂ / H₂ / Ar, etc. |
