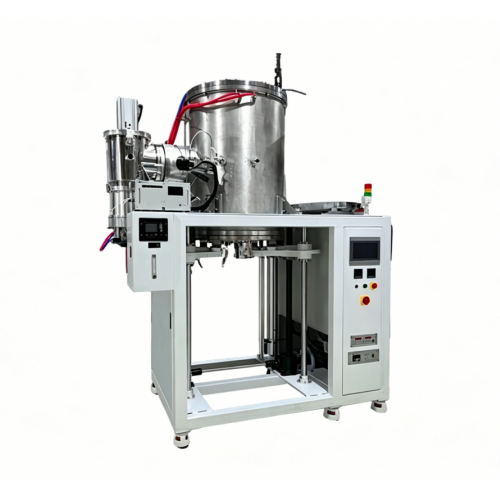

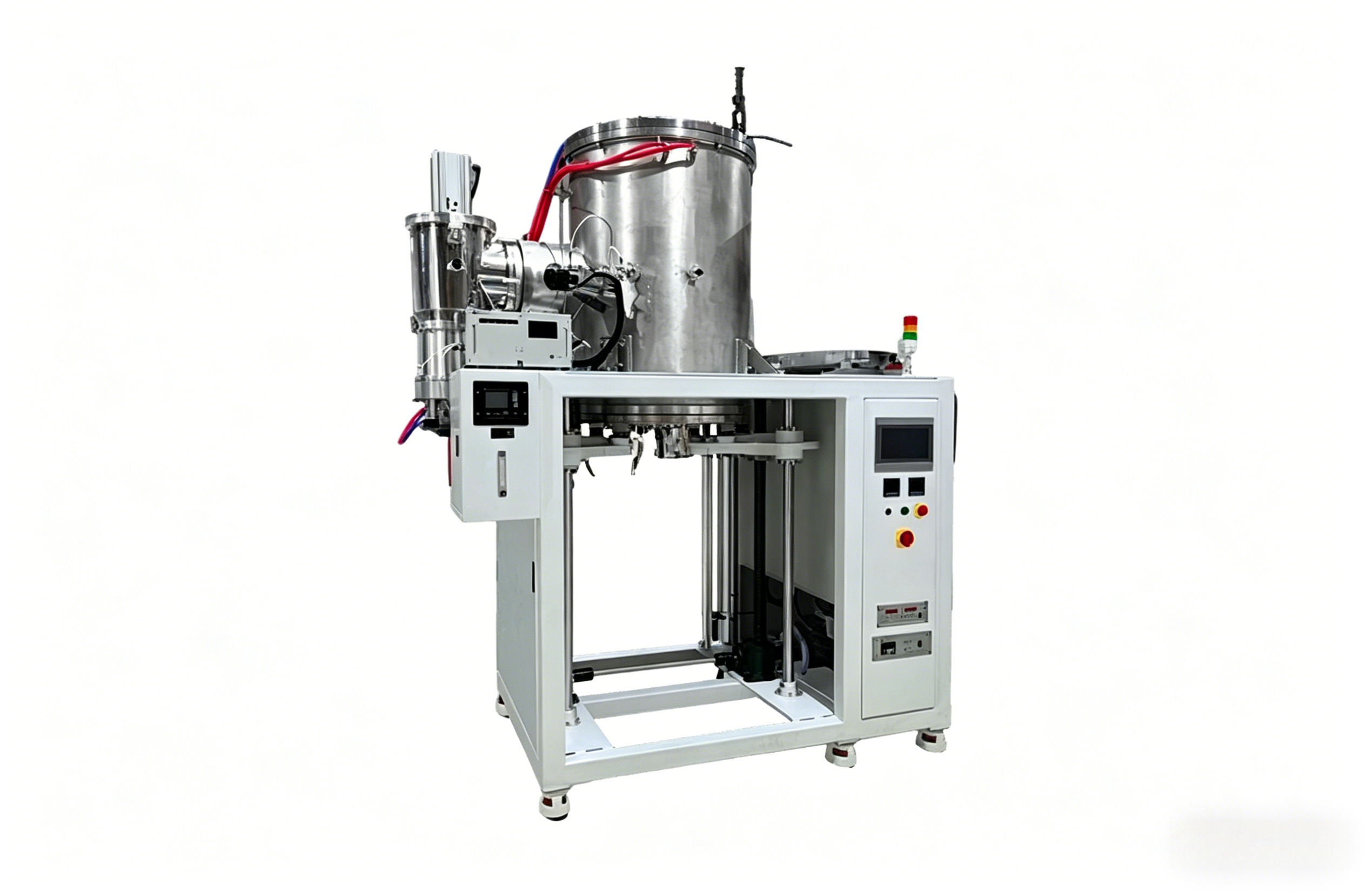

Lift-Type 1500℃ High Temperaure Heat Treatment Oven Vacuum Brazing Furnace
Equipment Overview
The lift-type vacuum brazing furnace is a heat treatment equipment for high-temperature welding and sintering of materials under high vacuum or controlled atmosphere. Equipped with a lead screw lifting mechanism, it is widely used in powder metallurgy, cemented carbides, ceramics, magnetic materials (such as NdFeB and SmCo), high-performance ceramics, and medical implants (such as titanium alloys).
Product Features
Vacuum System: Mechanical pump + molecular pump, providing high vacuum to completely isolate oxygen and avoid material oxidation and decarburization.
High Temperature Uniformity: Ensures excellent sintering quality with consistent temperature distribution.
High Degree of Automation: Can be integrated with PLC + touch screen control to realize automatic vacuum pumping, multi-stage temperature control, and data recording, minimizing human error.
Technical Specifications
Tube Size (Φ×L) | Max. Temperature | Heating Element | Ultimate Vacuum | Furnace Structure |
Φ200×200–Φ400×500mm (optional) | 1500℃ | Molybdenum-lanthanum alloy | 6.7×10⁻⁴ Pa | Vertical cylindrical |
