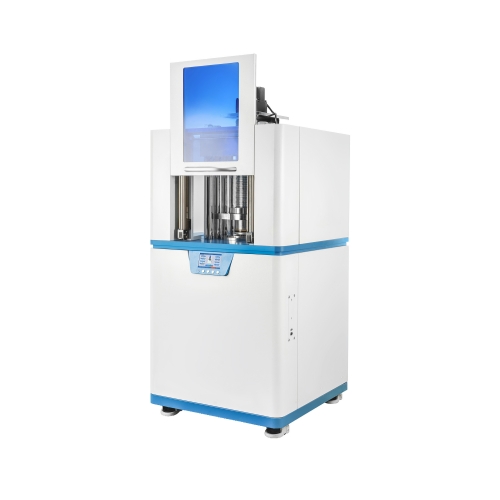

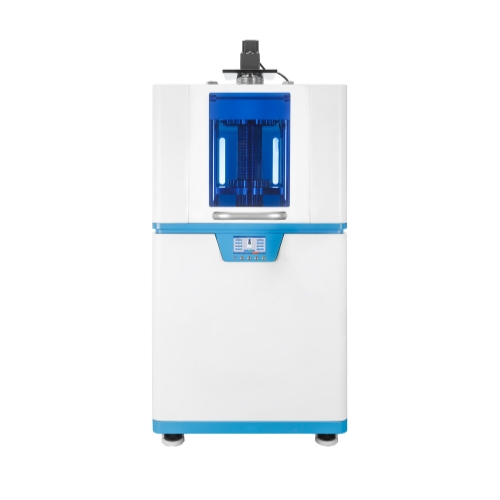

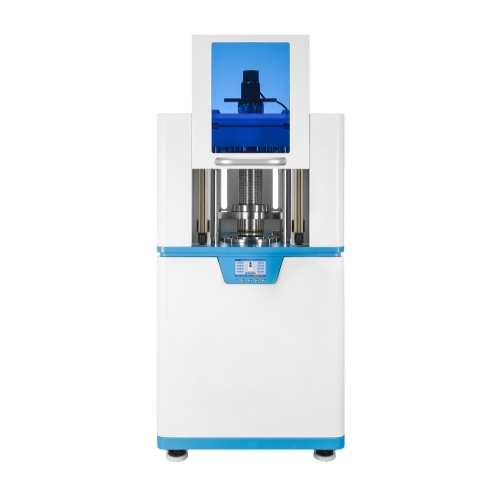

Laboratory Dia100-200mm Large Diameter WIP Warm Isostatic Press
Specification
Instrument model | PP-WIP |
Effective inner diameter of working | 100/120/150/200 mm |
Effective working depth | 150/200/250mm |
Max working chamber pressure | 100MPa/200Mpa/300Mpa |
Ambient temperature | 5-35℃ |
Installation method | Indoor floor installation |
High-pressure chamber temperature | RTC-180℃ |
Cooling water port | British pipe thread |
Max hydraulic oil temperature | <50℃ |
Heating rate: RT-180℃ | <80min |
High chamber temp uniformity | ±5℃ |
Oil tank | Easy oil replenishment for oil tank |
Control interface | PLC +Touch Screen +Function & Emergency Keys |
Pressure rise rate | Speed adjustable |
Process parameters | Multi-group storable |
Stage pressure rise | Adjustable pressure hold,min.10 stages |
Pressure holding time | Adjustable (0-9999s) |
Product Dimensions | 980 x980 x2100 mm (L XWXH) |
Net Weight | 2500 kg |

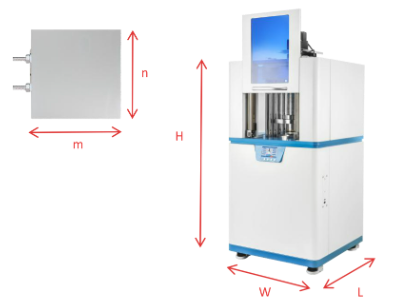

Diagram |  |
