Laboratory 60T Four Column Manual Hydraulic Press Machine With Protective Cover
Features
Our Laboratory Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on. In addition, this product can also be used with Fourier infrared spectrometer. Fluorescence spectrometer supporting sample preparation, can replace similar imported products.
It can also be used with Ca-Fe analyzer, infrared spectroscopy (IR) analyzer and X-ray fluorescence (XRF) analyzer to analyze the pressed samples.
Features
1.Small size, light weight,No oil linkage, easy to carry.
2.Digital display pressure gauge 0.1MPa,Pressure control is more accurate.
3.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.
4.Special plunger, special custom sealed structure, good sealing effect, no oil leakage
5.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.
6.One main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.
7.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.
8.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage.
Parameter
Model | PC-60F |
Pressure range | 0-60T |
Piston diameter | Chrome-plated cylinder φ150mm(d) |
Main body structure | The equipment has no sealed connection, reducing oil leakage points |
Pressure gauge | Pressure and pressure double-scale display |
The biggest piston itinerary | 50mm(T) |
| Protective cover | Organic glass |
Stability of pressure | ≤1MPa/10min |
Diameter of working table | Φ160mm(D) |
Column number | 4 columns |
Column spacing (mm) | 180*210 (M*N) |
Overall dimensions (mm) | 400*250*560 (L*W*H) |
Weight | 130Kg |

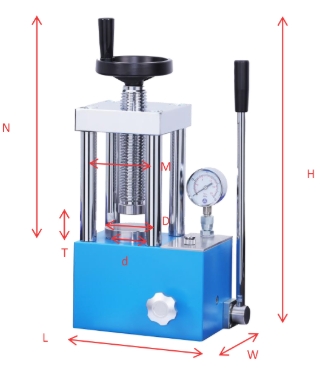

Dimension diagram of tablet press |  |
