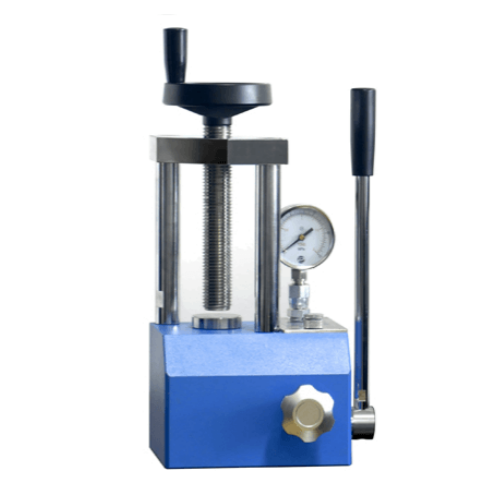

Laboratory 3T Small Manual 2-Column Hydraulic Powder Press Machine
Parameter
Model | PC-3 |
Pressure range | 0-3T |
Piston diameter | φ50mm(d) |
Main body structure | Utility model patents |
Pressure gauge | Pressure and pressure double-scale display |
The biggest piston itinerary | 30mm(T) |
Stability of pressure | ≤1MPa/10min |
Diameter of working table | Φ80mm(D) |
Column number | 2 columns |
Column spacing (mm) | 90*125(M*N) |
Overall dimensions (mm) | 210*150*360(L*W*H) |
Weight | 20Kg |

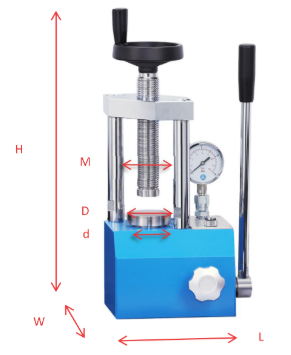

Dimension diagram of tablet press |
|
