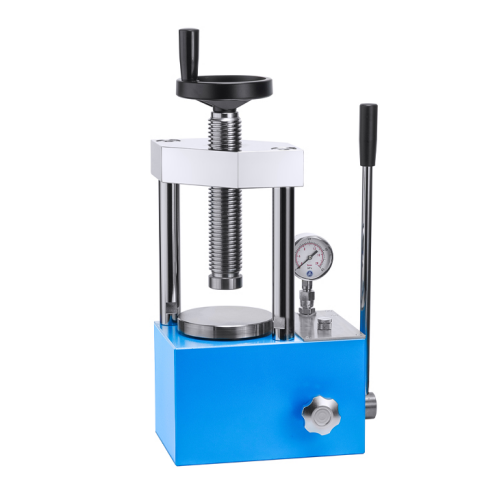

Laboratory 15T Manual Hydraulic Press Machine With 2-Column Structure
Parameter
Model | PC-15B |
Pressure range | 0-15T |
Piston diameter | Chrome-plated cylinder φ80mm(d) |
Main body structure | Utility model patents |
Pressure gauge | Pressure and pressure double-scale display |
The biggest piston itinerary | 30mm(T) |
Stability of pressure | ≤1MPa/10min |
Diameter of working table | Φ90mm(D) |
Column number | 2 columns |
Column spacing (mm) | 140*160(M*N) |
Overall dimensions (mm) | 270*200*400(L*W*H) |
Weight | 28Kg |

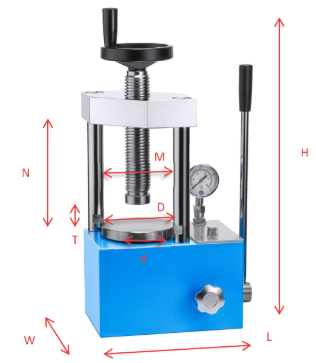

Dimension diagram of tablet press |
|
