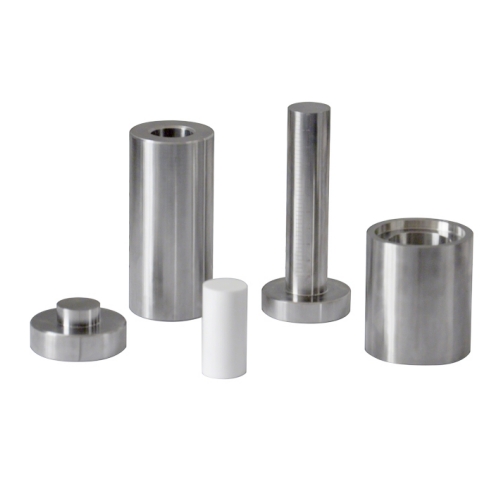

Lab Cylindrical Lengthened Die Mold With Scale For Tablet Pressing
Introduction
The cylindrical extended die can be used for the forming and testing of most samples. The tablet size is 7 to 20mm. Product tablet thickness: 20 to 50mm in height; Bulk powder height: up to 100mm; Special mold sizes can be customized according to customer requirements.
Technical parameter
Instrument model | PMC |
Press the shape of the sample |  |
Mold material | Alloy tool steel: Cr12MoV |
Indenter hardness | HRC60-HRC62 |
Sample size | Φ10/12/13/15/18/20mm (M) |
Cavity depth | 100mm (N) |
Overall dimensions | Φ53*220mm (L*H) |
Mold weight | 4.8kg |

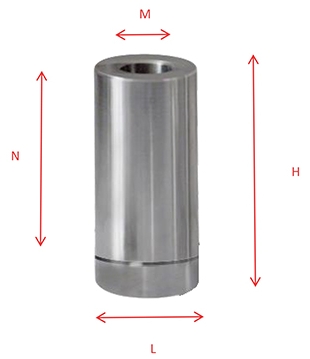

Schematic diagram of dimensions |  |
